105-6175 - Toro 52" Mower Service Kit for 200 Series Z Master (SN: 220000001 - 220999999) (2002) SPINDLE AND PULLEY ASSEMBLY Parts Diagram

52" Mower Service Kit for 200 Series Z Master

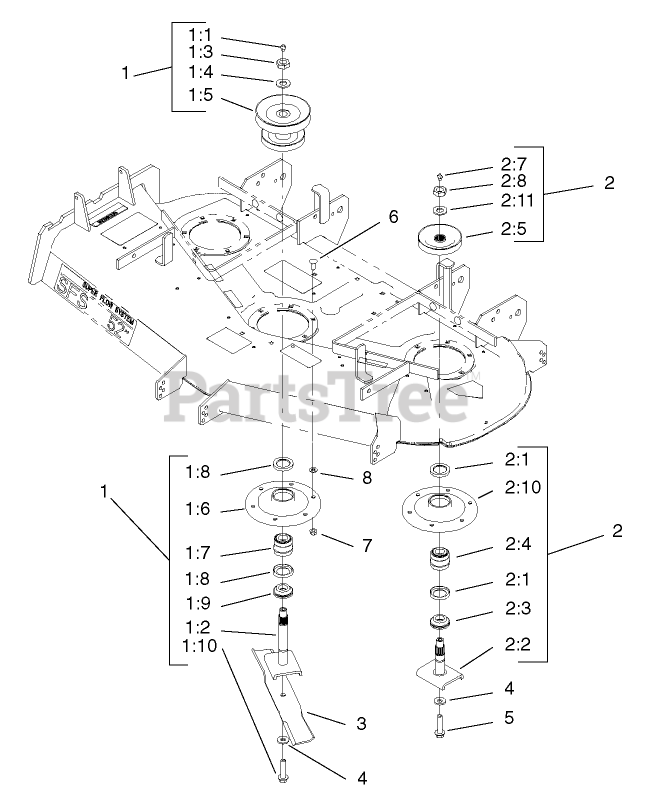

SPINDLE AND PULLEY ASSEMBLY Parts Diagram

  • Title

1

Toro 105-1687

SPINDLE HOUSING ASM

$971.99

$

Usually ships in 3-6 days

0

1:1

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

1:2

Toro 105-1686

SPINDLE SHAFT ASM

$206.99

$

In Stock, only 1 left!

0

1:3

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, Qty 6

0

1:4

Toro 92-5836

WASHER

$5.99

$

Usually ships in 3-6 days

0

1:5

Toro 100-2312

PULLEY/HUB ASM

$241.99

$

Usually ships in 3-6 days

0

1:6

Toro 61-4160

HOUSING-SPINDLE

$138.99

$

In Stock, only 1 left!

0

1:7

Toro 46-8530

BEARING ASM

$109.99

$

In Stock, only 4 left!

0

1:8

Toro 253-139

SEAL-OIL

$13.99

$

In Stock, Qty 5

0

1:9

Toro 27-0950

SPACER

$31.99

$

In Stock, only 1 left!

0

1:10

Toro 92-5816

BOLT-BLADE

$7.49

$

In Stock, Qty 12

0

2

Toro 99-4639

SPINDLE ASM - OUTER

$945.99

$

Usually ships in 3-6 days

0

2:1

Toro 253-139

SEAL-OIL

$13.99

$

In Stock, Qty 5

0

2:2

Toro 27-0920

SHAFT

$190.99

$

In Stock, only 1 left!

0

2:3

Toro 27-0950

SPACER

$31.99

$

In Stock, only 1 left!

0

2:4

Toro 46-8530

BEARING ASM

$109.99

$

In Stock, only 4 left!

0

2:5

Toro 99-4613

PULLEY & HUB

$86.99

$

Usually ships in 3-6 days

0

2:7

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

2:8

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, Qty 6

0

2:10

Toro 61-4160

HOUSING-SPINDLE

$138.99

$

In Stock, only 1 left!

0

2:11

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 7

0

3

Toro 27-0990

Blade
(Superseded to 27-0990-03)

$23.99

$

In Stock, only 3 left!

0

4

Toro 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 13

0

5

Toro 92-5816

BOLT-BLADE

$7.49

$

In Stock, Qty 12

0

6

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

7

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
