105-6174 - Toro 52" Mower Service Kit for 100 Series Z Master (SN: 240000001 - 240999999) (2004) IDLER AND PULLEY ASSEMBLY Parts Diagram

52" Mower Service Kit for 100 Series Z Master

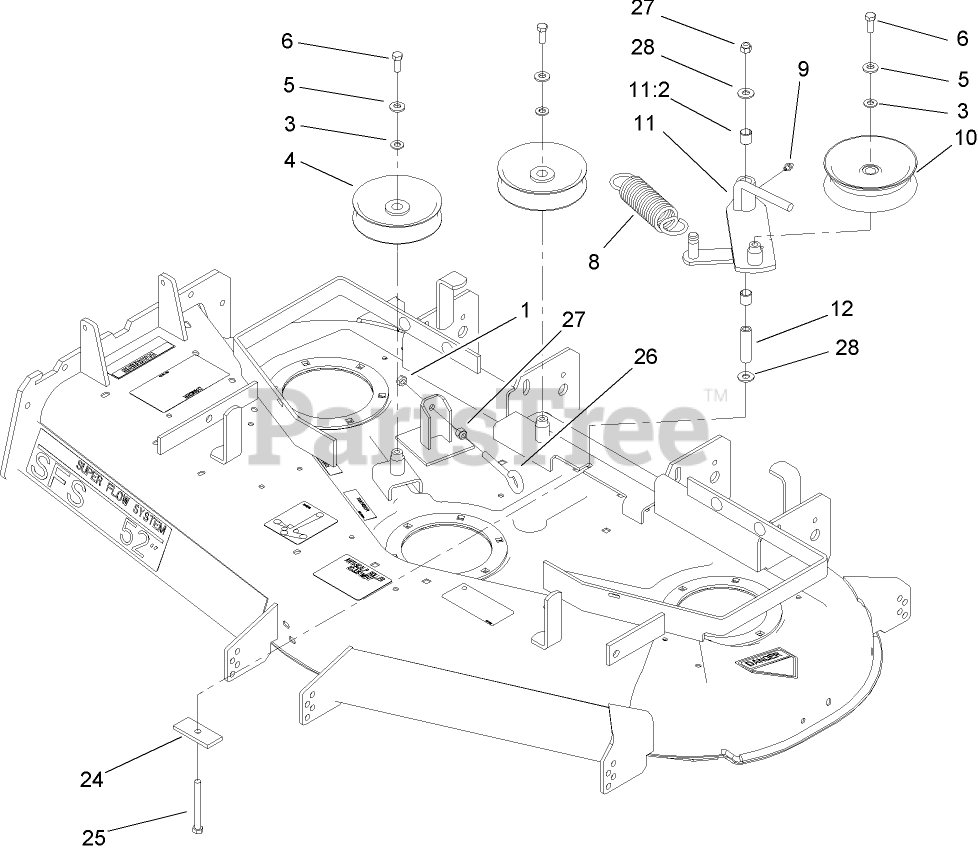

IDLER AND PULLEY ASSEMBLY Parts Diagram

  • Title

1

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 20+

0

5

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

6

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

8

Toro 1-633151

SPRING-EXTENSION
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 20+

0

9

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

10

Toro 99-8912

PULLEY-IDLER, FLAT
(Superseded to 116-4669)

$79.99

$

In Stock, Qty 20+

0

11

Toro 99-8914

IDLER ARM ASM

$294.99

$

Usually ships in 3-6 days

0

11:2

Toro 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

12

Toro 1-603384

BUSHING-PIVOT, IDLER

$13.99

$

In Stock, Qty 20+

0

24

Toro 99-3946-01

PLATE-RETAINER, BOLT

$

$

Not available

25

Toro 1-800805

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

26

Toro 94-2547

BOLT-EYE

$27.99

$

Usually ships in 3-6 days

0

27

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

28

Toro 1-809107

WASHER-HARDENED

$5.49

$

In Stock, only 2 left!

0
