105-1293 - Toro GTS 150 to 200 Conversion Kit (1995 - 1997) CARBURETOR OVERHAUL KIT ASSEMBLY ENGINE GTS-200 Parts Diagram

GTS 150 to 200 Conversion Kit

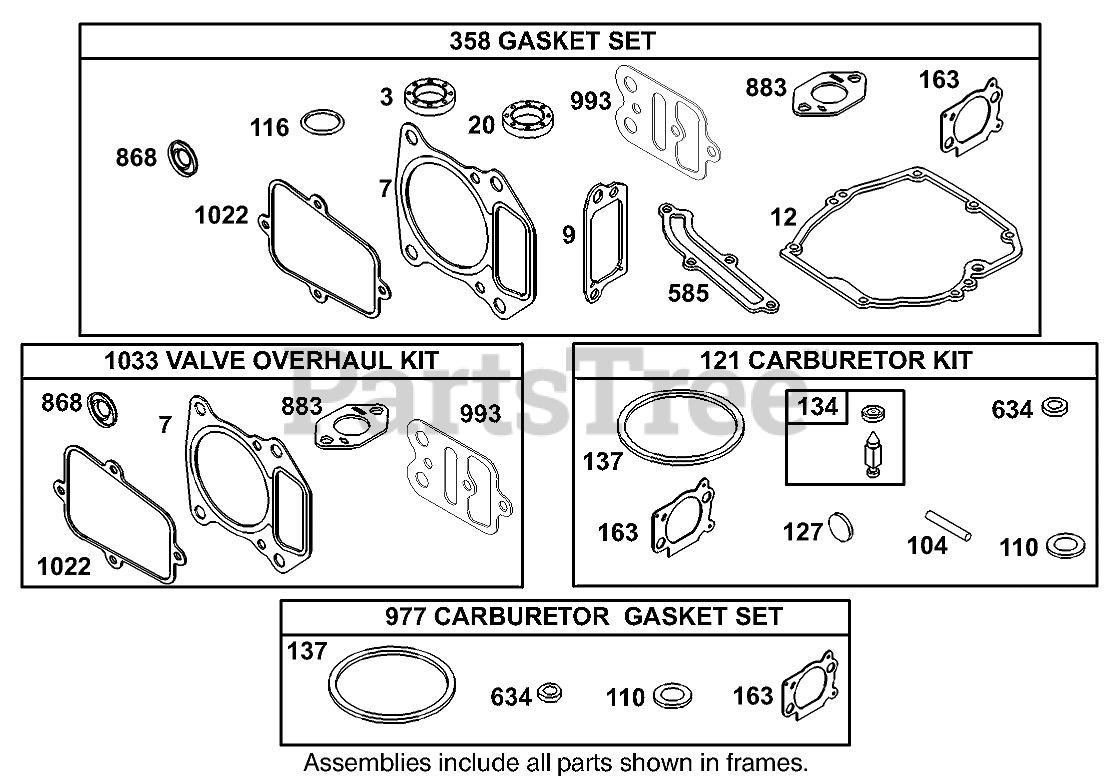

CARBURETOR OVERHAUL KIT ASSEMBLY ENGINE GTS-200 Parts Diagram

  • Title

3

Toro 99-0912

Oil Seal
(Superseded to 77-9060)

Note: Included in Gasket Set-Part No. 100-5035

$

$

Not available

7

Toro 99-0930

GASKET-HEAD, CYLINDER

Note: Included in Valve Overhaul Gasket Set Part No. 100-5033

$

$

Not available

7

Toro 99-0930

GASKET-HEAD, CYLINDER

Note: Included in Gasket Set-Part No. 100-5035

$

$

Not available

9

Toro 99-0913

GASKET-BREATHER

Note: Included in Valve Overhaul Gasket Set Part No. 100-5033

$4.49

$

Usually ships in 3-6 days

0

9

Toro 99-0913

GASKET-BREATHER

Note: Included in Gasket Set-Part No. 100-5035

$4.49

$

Usually ships in 3-6 days

0

12

Toro 99-0953

GASKET-CRANKCASE

Note: Included in Gasket Set-Part No. 100-5035

$20.99

$

Usually ships in 3-6 days

0

20

Toro 77-7570

SEAL-OIL

Note: Included in Gasket Set-Part No. 100-5035

$23.99

$

Usually ships in 3-6 days

0

104

Toro 99-0970

PIN-HINGE, FLOAT

Note: Included in Carburetor Kit-Part No. 100-5036

$

$

Not available

110

Washer-Bowl(Sold in KitOnly)

Note: Included in Carburetor Kit-Part No. 100-5036

$

$

Not available

110

Washer-Bowl(Sold in KitOnly)

Note: Included in Carburetor Gasket Set-Part No. 100-5034

$

$

Not available

116

Toro 99-0916

O-RING

Note: Included in Gasket Set-Part No. 100-5035

$8.99

$

Usually ships in 3-6 days

0

121

Toro 99-0901

Carburetor Kit
(Superseded to 100-5036)

$28.99

$

In Stock, only 1 left!

0

127

Plug-Welch (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 100-5036

$

$

Not available

134

Toro 77-8110

VALVE-FLOAT

Note: Included in Carburetor Kit-Part No. 100-5036

$23.99

$

Usually ships in 3-6 days

0

137

Gasket-Bowl (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-Part No. 100-5034

$

$

Not available

137

Gasket-Bowl (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 100-5036

$

$

Not available

163

Toro 99-0971

JET-MAIN

Note: Included in Gasket Set-Part No. 100-5035

$

$

Not available

163

Toro 99-0971

JET-MAIN

Note: Included in Carburetor Kit-Part No. 100-5036

$

$

Not available

163

Toro 99-0971

JET-MAIN

Note: Included in Carburetor Gasket Set-Part No. 100-5034

$

$

Not available

358

Toro 99-0902

Gasket Set
(Superseded to 100-5035)

$

$

Not available

585

Toro 99-0923

GASKET-BREATHER

Note: Included in Gasket Set-Part No. 100-5035

$12.99

$

Usually ships in 3-6 days

0

634

Washer-Foam(Sold in Kit Only)

Note: Included in Carburetor Gasket Set-Part No. 100-5034

$

$

Not available

634

Washer-Foam(Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 100-5036

$

$

Not available

868

Toro 99-0946

SEAL-VALVE

Note: Included in Gasket Set-Part No. 100-5035

$

$

Not available

868

Toro 99-0946

SEAL-VALVE

Note: Included in Valve Overhaul Gasket Set Part No. 100-5033

$

$

Not available

883

Toro 99-0947

GASKET-EXHAUST

Note: Included in Valve Overhaul Gasket Set Part No. 100-5033

$

$

Not available

883

Toro 99-0947

GASKET-EXHAUST

Note: Included in Gasket Set-Part No. 100-5035

$

$

Not available

977

Toro 99-0903

Gasket Set-Carburetor
(Superseded to 100-5034)

$

$

Not available

993

Toro 99-0948

PLATE-GASKET

Note: Included in Gasket Set-Part No. 100-5035

$14.99

$

Usually ships in 3-6 days

0

993

Toro 99-0948

PLATE-GASKET

Note: Included in Valve Overhaul Gasket Set Part No. 100-5033

$14.99

$

Usually ships in 3-6 days

0

1022

Toro 99-0907

GASKET-COVER, ROCKER

Note: Included in Valve Overhaul Gasket Set Part No. 100-5033

$23.99

$

Usually ships in 3-6 days

0

1022

Toro 99-0907

GASKET-COVER, ROCKER

Note: Included in Gasket Set-Part No. 100-5035

$23.99

$

Usually ships in 3-6 days

0

1033

Toro 99-0904

Gasket Set-Valve Overhaul
(Superseded to 117-7558)

$

$

Not available
