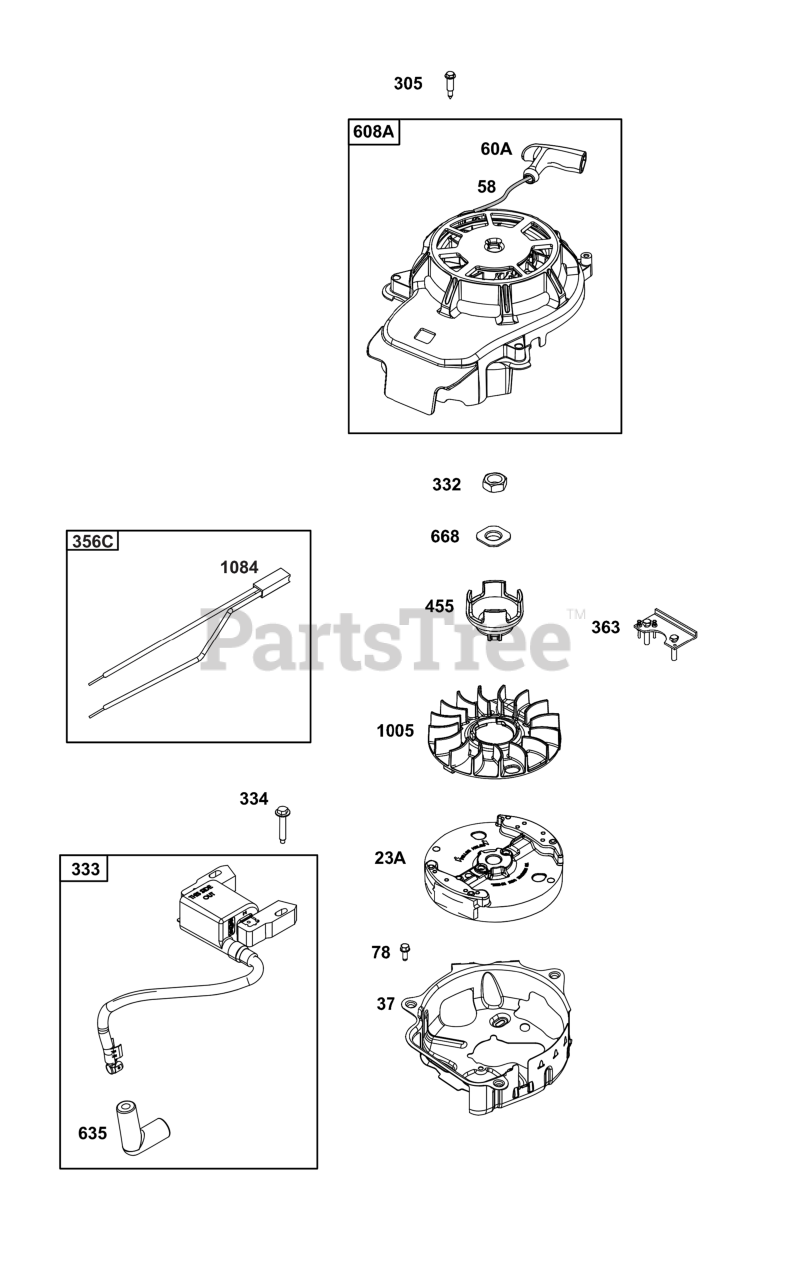

104M02-0018-H5 - Briggs & Stratton Vertical Engine Flywheel/Ignition/Starter Group Parts Diagram

Vertical Engine

Flywheel/Ignition/Starter Group Parts Diagram

  • Title

23A

Briggs & Stratton 594054

FLYWHEEL

$128.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 594103

GUARD, Flywheel

$43.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 591108

ROPE, Starter

$7.99

$

In Stock, only 1 left!

0

60A

Briggs & Stratton 281434S

GRIP, Starter Rope

$3.99

$

In Stock, only 4 left!

0

78

Briggs & Stratton 793480

SCREW

Note: (Flywheel Guard)

$3.99

$

In Stock, Qty 20+

0

305

Briggs & Stratton 590586

SCREW

Note: (Blower Housing)

$3.49

$

In Stock, Qty 20+

0

332

Briggs & Stratton 690662

NUT

Note: (Flywheel)

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 595009

ARMATURE, Magneto
(Superseded to 84005272)

$31.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356C

Briggs & Stratton 596036

WIRE, Stop

$10.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19619

PULLER, Flywheel

$116.99

$

Usually ships in 2-12 days

0

455

Briggs & Stratton 593960

CUP, Flywheel

$11.99

$

In Stock, Qty 15

0

608A

Briggs & Stratton 594062

STARTER, Rewind

$57.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 20+

0

668

Briggs & Stratton 590546

SPACER

$3.99

$

In Stock, only 3 left!

0

1005

Briggs & Stratton 594102

FAN, Flywheel

$25.99

$

In Stock, only 1 left!

0

1084

Briggs & Stratton 399365S

CONNECTOR, Terminal

$18.99

$

Usually ships in 2-12 days

0
