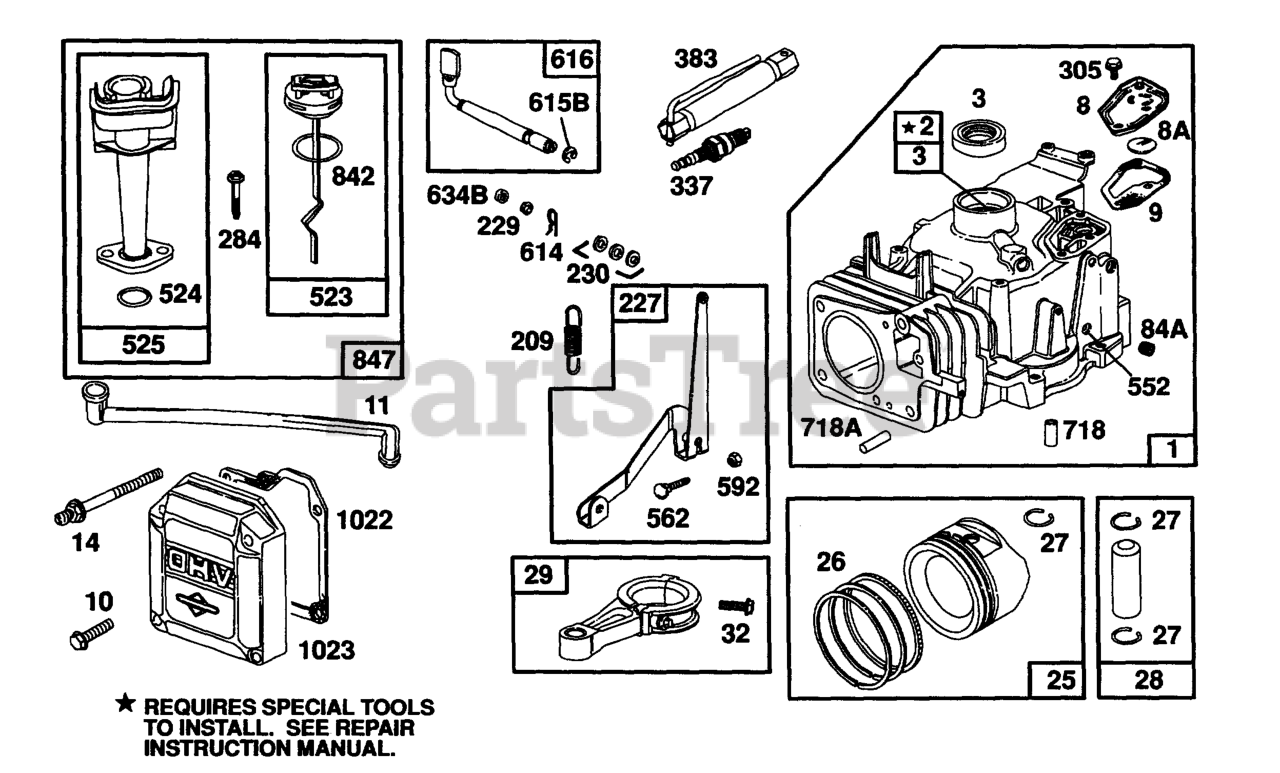

104772-3101-01 - Briggs & Stratton Vertical Engine Cylinder,Oil Fill,Piston Parts Diagram

Vertical Engine

Cylinder,Oil Fill,Piston Parts Diagram

  • Title

1

Briggs & Stratton 492741

Cylinder Assembly

$448.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 492761

Bushing & Seal-Cyl.

$4.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

Note: Included in Gasket Set-Part No. 492872

$7.99

$

In Stock, Qty 20+

0

8A

Briggs & Stratton 66434

Disc-Breather
(Superseded to 692829)

$6.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 224144

Cover-Breather

$11.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 272161

Gasket-Breather

Note: Included in Gasket Set-Part No. 492872

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 810050

Screw-Valve Cover

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 280889

Tube-Breather

$7.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 94436

Stud-Cylinder Head

$4.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 492767

Piston Assy. (Std.)

$80.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 492886

Piston Assy. (.010" O.S.)

$86.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 492887

Piston Assy. (.020" O.S.)

$83.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 492888

Piston Assy. (.030" O.S.)

$86.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 492766

Ring Set-Piston (Std.)

$26.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 492883

Ring Set-010

$22.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 492884

Ring Set-Piston (.020" Oversize)

$22.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 492885

Ring Set-Piston (.030" Oversize)

$36.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 262514

Lock-Piston Pin

$3.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 492765

Pin-Piston Std

$7.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 493204

Rod Assy.-Conn.

Note: For Connecting Rod With .020" Undersize Crank Pin Bore-Order No. 493205

$76.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 810050

Screw-Valve Cover

$3.49

$

Usually ships in 2-12 days

0

84A

Briggs & Stratton 93448

Plug, Pipe (Flush) (1/4-18 Nptf)
(Superseded to 691682)

$5.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 262573

Spring-Gov.

$5.49

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 492159

Lever Assembly-Gov.

$11.99

$

Usually ships in 2-12 days

0

229

Briggs & Stratton 810018

Washer-Gov. Crank (1 Required)

$1.49

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 94742

Washer, Plain
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

284

Briggs & Stratton 810077

Screw-Oil Fill Tube

$4.49

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 810037

Screw-Tank Bracket
(Superseded to 691593)

$3.49

$

In Stock, Qty 17

0

337

Briggs & Stratton 491055

Spark Plug,resistor (Req. 3)
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

383

Briggs & Stratton 19374

Wrench-Spark Plug
(Superseded to 19576S)

$5.99

$

In Stock, only 1 left!

0

523

Briggs & Stratton 492737

Dipstick-Oil Filler

$7.49

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 280892

Seal-Filler Tube

Note: Included in Gasket Set-Part No. 492872

$6.99

$

Usually ships in 2-12 days

0

525

Briggs & Stratton 492736

Tube-Oil Filler

$14.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 231632

Bushing-Gov. Crank

$6.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 810043

Bolt-Governor Lever

$1.99

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 810011

Nut-Hex.

$1.99

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 93306

Pin, Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615B

Briggs & Stratton 93307

Retainer-E Ring

$5.99

$

In Stock, only 3 left!

0

616

Briggs & Stratton 492164

Crank-Governor

$11.99

$

Usually ships in 2-12 days

0

634B

Briggs & Stratton 491323

Seal, Governor Arm
(Superseded to 692407)

Note: Included in Gasket Set-Part No. 492872

$7.99

$

In Stock, Qty 8

0

718A

Briggs & Stratton 230192

Pin-Locating
(Superseded to 690959)

$6.99

$

In Stock, only 1 left!

0

718

Briggs & Stratton 231589

Pin-Cylinder

$6.49

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 280393

Seal, O-Ring (Oil Fill)
(Superseded to 691031)

Note: Included in Gasket Set-Part No. 492872

$5.49

$

In Stock, Qty 20+

0

847

Briggs & Stratton 492735

Dipstick & Tube Assy.

$17.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 272131

Gasket-Rocker Arm Cover

Note: Included in Gasket Set-Part No. 492872

$5.99

$

Usually ships in 2-12 days

0

1023

Briggs & Stratton 213522

Cover-Rocker Arm

$14.99

$

Usually ships in 2-12 days

0
