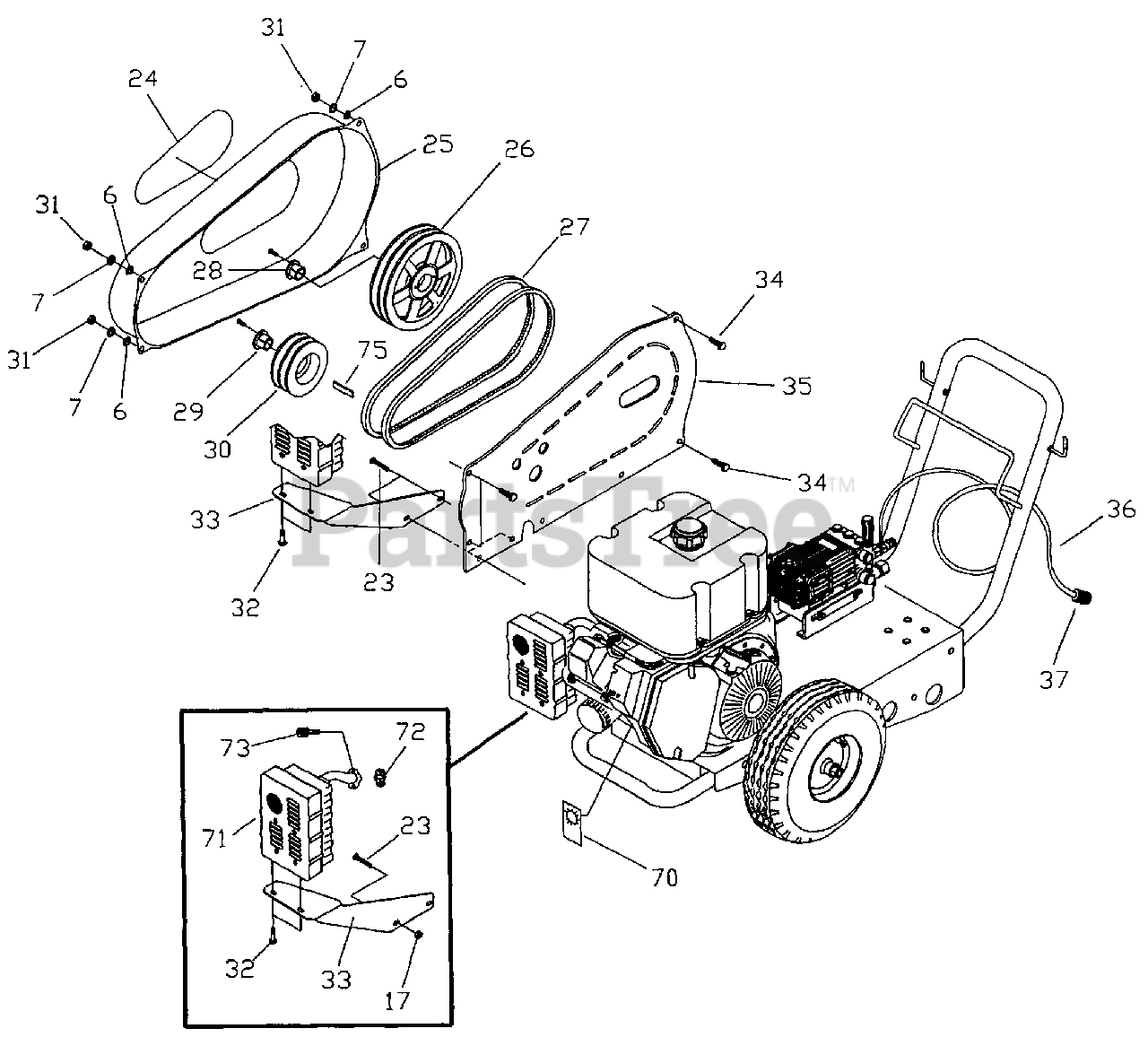

1046-0 - Generac 3,500 PSI Pressure Washer Drive System Parts Diagram

3,500 PSI Pressure Washer

Drive System Parts Diagram

  • Title
6

Briggs & Stratton 22145

WASHER, M8 5/16 Flat

$

$

Not available

7

Briggs & Stratton 22129

WASHER, M8 5/16 Lock
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

17

Briggs & Stratton 99583

NUT, 5/16-18 Locking Flange
(Superseded to 99583GS)

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 25154

BOLT, Carriage 5/16-18 x 2
(Superseded to 5025154)

$4.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 82328

DECAL, Shroud 1046

$

$

Currently unavailable

25

Briggs & Stratton B2612

SHROUD, PDR Coat Red

$

$

Currently unavailable

26

Briggs & Stratton B2282B

PULLEY, 8.75 OD

$

$

Not available

27

$

$

Not available

28

Briggs & Stratton B2281B

BUSHING, 24mm

$

$

Not available

29

Briggs & Stratton B2281A

BUSHING, 1" ID

$

$

Not available

30

Briggs & Stratton B2282A

PULLEY, 4.25" OD

$

$

Not available

31

Briggs & Stratton 45771

NUT, M8-1.25 Hex

$

$

Not available

32

Briggs & Stratton 66476

HHCS, M6-1.0 x 12 w/Lock Wshr
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton B2487

BRACKET, Muffler
(Superseded to B2487GS)

$6.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 39253

HHCS, M8-1.25 x 20
(Superseded to 39253GS)

$3.49

$

In Stock, Qty 6

0

35

Briggs & Stratton B2613

BACK PANEL, Powder Coat Red

$

$

Currently unavailable

36

Briggs & Stratton A1040A

HOSE, Chemical 42" Clear
(Superseded to A1040AGS)

$10.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton A1041

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton B1210A

TAG, Start Instructions
(Superseded to B1210AGS)

$2.49

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 91153

MUFFLER, Lrg Std 32/36
(Superseded to A7433GS)

$

$

Not available

72

Briggs & Stratton 90239

GASKET, Exhaust
(Superseded to 90239GS)

$4.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 95531

SHCS, MS 1.25 x 20
(Superseded to 95531GS)

$2.99

$

Usually ships in 2-12 days

0

75

UNKNOWN

$

$

Not available
