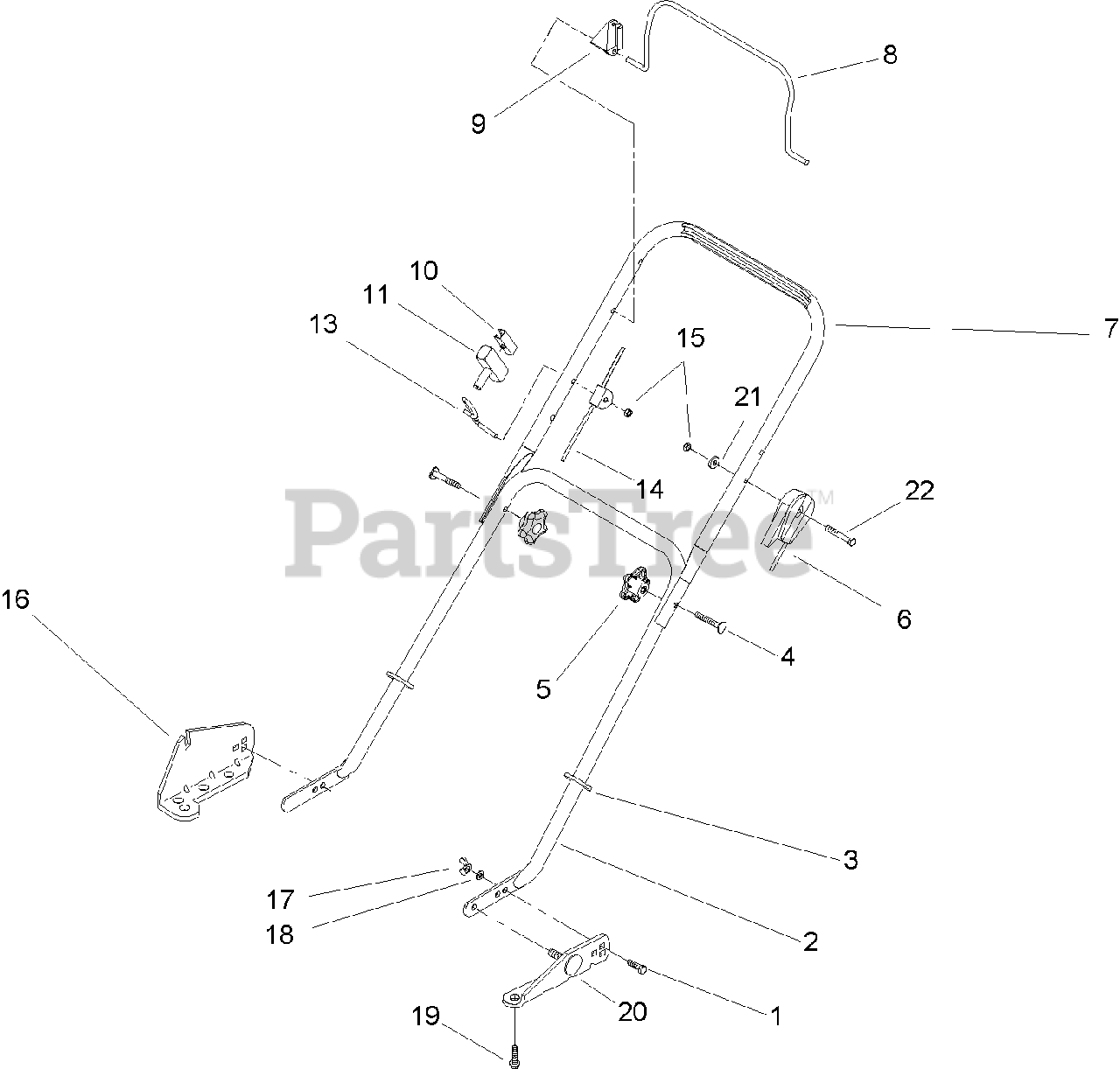

10424 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) HANDLE ASSEMBLY Parts Diagram

GoldPro Series Walk-Behind Mower

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 3230-29

SCREW-CARR

$2.99

$

In Stock, Qty 12

0

2

Lawn-Boy 613048-05

Handle Section-Lower
(Superseded to 92-2920-05)

$131.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 614249

STRAP-TIE

$1.49

$

In Stock, only 2 left!

0

4

$2.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 106-4161

KNOB-HANDLE

$5.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 95-7446

CABLE - THROTTLE

$89.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 95-1713-05

HANDLE - UPPER

$

$

Not available

8

Lawn-Boy 93-4184-03

BAIL-BRAKE

$41.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 107-0757

STOP-PIVOT

$5.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 612824

CLIP-STARTER

$4.49

$

In Stock, Qty 10

0

11

Lawn-Boy 612825

HANDLE-START
(Superseded to 81-1630)

$21.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 106-8330

GUIDE-ROPE

$5.99

$

In Stock, only 3 left!

0

14

Lawn-Boy 92-7738

CABLE - FLYWHEEL BRAKE

$33.99

$

In Stock, Qty 6

0

15

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 8

0

16

Lawn-Boy 684057-03

RH BRACKET and PIN ASM

$

$

Not available

17

$5.99

$

In Stock, Qty 5

0

18

Lawn-Boy 3253-33

WASHER-LOCK

$1.99

$

In Stock, Qty 12

0

19

$3.99

$

In Stock, only 3 left!

0

20

Lawn-Boy 684058-03

LH BRACKET and PIN ASM

$81.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 92-8632

WASHER
(Superseded to 115-0995)

$6.99

$

In Stock, only 3 left!

0

22

Lawn-Boy 321-48

SCREW-HH

$1.99

$

In Stock, only 2 left!

0
