10424 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 008900001 - 008999999) (1998) HOUSING ASSEMBLY Parts Diagram

GoldPro Series Walk-Behind Mower

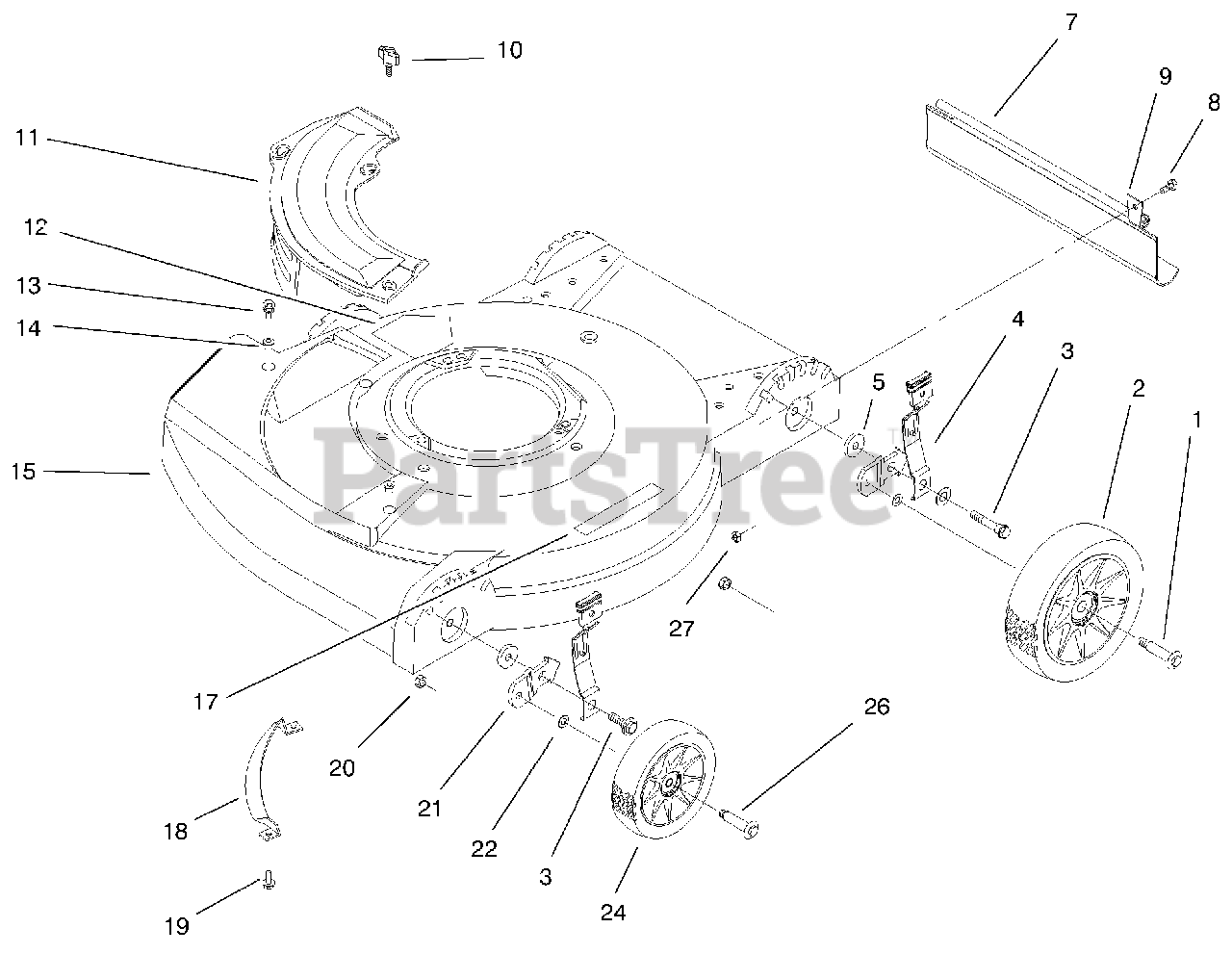

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 614650

Bolt-Shoulder

$4.49

$

Usually ships in 3-6 days

0

2

Lawn-Boy 684777

ASM-Wheel

$52.99

$

In Stock, only 2 left!

0

3

Lawn-Boy 610646

Bolt-Ajustment

$6.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy 153444

Knob & Spring

$

$

Not available

5

Lawn-Boy 608834

Washer

$15.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 93-7368

Shield-Trailing

$35.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 609891

Screw-HH
(Superseded to 700138)

$

$

Not available

9

Lawn-Boy 93-7693

Clamp-Rod

$15.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 98-8332

Knob-Cover Plate

$5.49

$

In Stock, Qty 18

0

11

Lawn-Boy 92-8630

Mulch Plate-21"

$

$

Not available

12

Lawn-Boy 39-5770

Decal-Danger

$7.99

$

In Stock, Qty 8

0

13

Lawn-Boy 614677

Screw-Sems

$3.99

$

In Stock, Qty 16

0

14

Lawn-Boy 94-1610

Grommet-Plastic

$0.99

$

In Stock, Qty 14

0

15

Lawn-Boy 99-1562

Housing-21" Hp

$

$

Not available

17

Lawn-Boy 93-7250

Decal-Warning

$14.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 608175

Toe Bar 21

$75.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 46-6811

Screw-HWH

$3.49

$

In Stock, only 3 left!

0

20

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 608833

Bracket-Height
(Superseded to 608833-03)

$22.99

$

In Stock, only 2 left!

0

22

Lawn-Boy 40-1940

Washer

$2.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 684776

ASM-Wheel & Tire 6"

$33.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 92-1099

Bolt-Shoulder

$7.49

$

In Stock, Qty 20+

0

27

Lawn-Boy 3296-52

Nut-Lock

$6.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 95-7052

Plate-Cover

Note: Not illustrated

$30.99

$

In Stock, only 1 left!

0
