10422 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 006900001 - 006999999) (1996) ENGINE, FUEL TANK & BLADE ASSEMBLY Parts Diagram

Gold Series Walk-Behind Mower

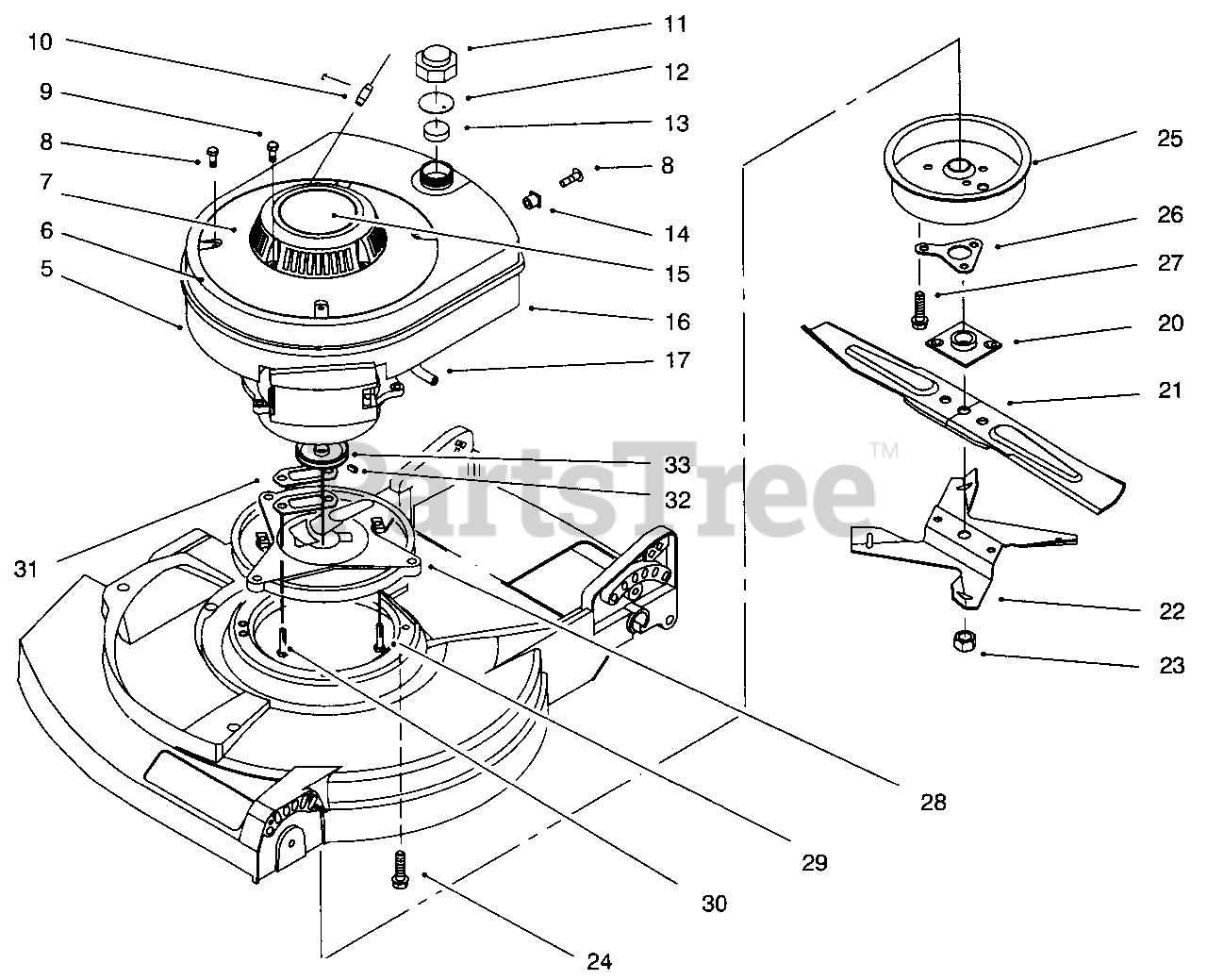

ENGINE, FUEL TANK & BLADE ASSEMBLY Parts Diagram

  • Title
5

Lawn-Boy 16-5539

Shroud & Tank Assembly

$

$

Not available

6

Lawn-Boy 684301

Base-Starter

$

$

Not available

7

Lawn-Boy 684622

Starter Assembly

$

$

Not available

8

Lawn-Boy 32144-53

Screw-Self Tapping

$3.49

$

In Stock, Qty 10

0

9

$2.49

$

In Stock, only 4 left!

0

10

Lawn-Boy 47-2480

Stop-Rope

$

$

Not available

11

Lawn-Boy 611327

Cap-Fuel
(Superseded to 682755)

$21.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 607213

Gasket-Fuel Cap

$1.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 609150

Baffle Fuel Cap

$5.49

$

In Stock, Qty 11

0

14

Lawn-Boy 605120

Grommet

$3.99

$

In Stock, Qty 9

0

15

Lawn-Boy 92-9567

Decal-Recoil (Model No. 10422)

$

$

Not available

Lawn-Boy 93-0293

Decal-Recoil (Model No. 10518 & 10523)

Note: Not Illustrated

$5.99

$

In Stock, only 1 left!

0

16

Engine Assembly

$

$

Not available

17

Lawn-Boy 612783

Line-Fuel

$

$

Not available

20

Lawn-Boy 677525

Plate & Collar Assembly

$23.99

$

In Stock, only 1 left!

0

21

Lawn-Boy 612543

Blade 21"
(Superseded to 612543-03)

$29.99

$

In Stock, only 4 left!

0

22

Lawn-Boy 92-1630

Fan-Mulching
(Superseded to 99-6351-03)

$32.99

$

In Stock, only 1 left!

0

23

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 92-1648

Screw-Engine
(Superseded to 95-1727)

$2.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 682876

Muffler Cover Assembly

$143.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 609786

Support-Crankshaft

$20.99

$

In Stock, only 2 left!

0

27

$4.99

$

In Stock, Qty 14

0

28

Lawn-Boy 92-1054

Plate-Muffler

$103.99

$

Usually ships in 3-6 days

0

29

$8.49

$

Usually ships in 3-6 days

0

30

$3.99

$

In Stock, only 2 left!

0

31

Lawn-Boy 93-1233

Gasket-Muffler

$1.99

$

In Stock, Qty 5

0

32

Lawn-Boy 610345

Screw-Set (Model No. 10518 & 10523)

$8.49

$

In Stock, Qty 5

0

33

Lawn-Boy 609976

Pulley (Model No. 10518 & 10523)

$96.99

$

Usually ships in 3-6 days

0
