10421 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 004900001 - 004999999) (1994) ENGINE BRIGGS & STRATTON MODEL 124702-3257-01 Parts Diagram

Gold Series Walk-Behind Mower

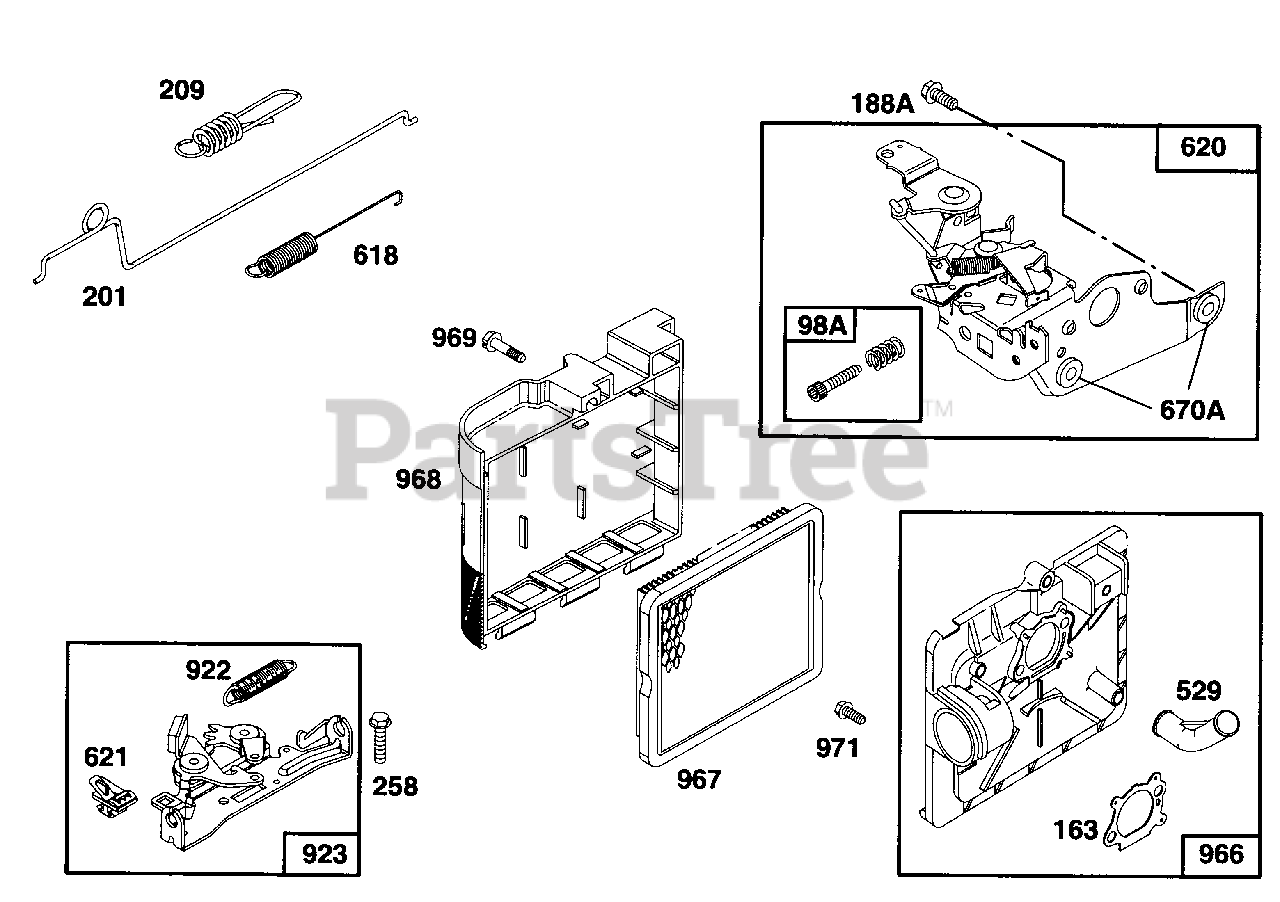

ENGINE BRIGGS & STRATTON MODEL 124702-3257-01 Parts Diagram

  • Title
98A

Lawn-Boy 493280

Screw-Speed Adj.

$

$

Currently unavailable

163

Lawn-Boy 272653

Gasket-Air Cleaner

Note: Not Illustrated

$

$

Currently unavailable

188A

Lawn-Boy 94644

Screw-Hex. Head

$

$

Currently unavailable

201

Lawn-Boy 262579

Link-Governor

$

$

Currently unavailable

209

Lawn-Boy 262660

Spring-Governor

$

$

Currently unavailable

258

Lawn-Boy 94512

Screw-Hex. Head

$

$

Currently unavailable

529

Lawn-Boy 281299

Grommet

$

$

Currently unavailable

618

Lawn-Boy 262749

Spring-Return

$

$

Currently unavailable

620

Lawn-Boy 495975

Bracket-Carburetor

$

$

Currently unavailable

621

Lawn-Boy 396847

Switch-Stop

$

$

Currently unavailable

670A

Lawn-Boy 493823

Spacer-Bracket (Includes 2)

$

$

Currently unavailable

922

Lawn-Boy 262640

Spring-Brake

$

$

Currently unavailable

923

Lawn-Boy 493442

Brake Assembly

$

$

Currently unavailable

966

Lawn-Boy 496116

Base-Air Cleaner

$

$

Currently unavailable

967

Lawn-Boy 491588

Filter-Air

$

$

Currently unavailable

968

Lawn-Boy 281340

Cover-Air Cleaner

$

$

Currently unavailable

969

Lawn-Boy 94120

Screw-Cover Mtg.

$

$

Currently unavailable

971

Lawn-Boy 94121

Screw-Air Cleaner

$

$

Currently unavailable
