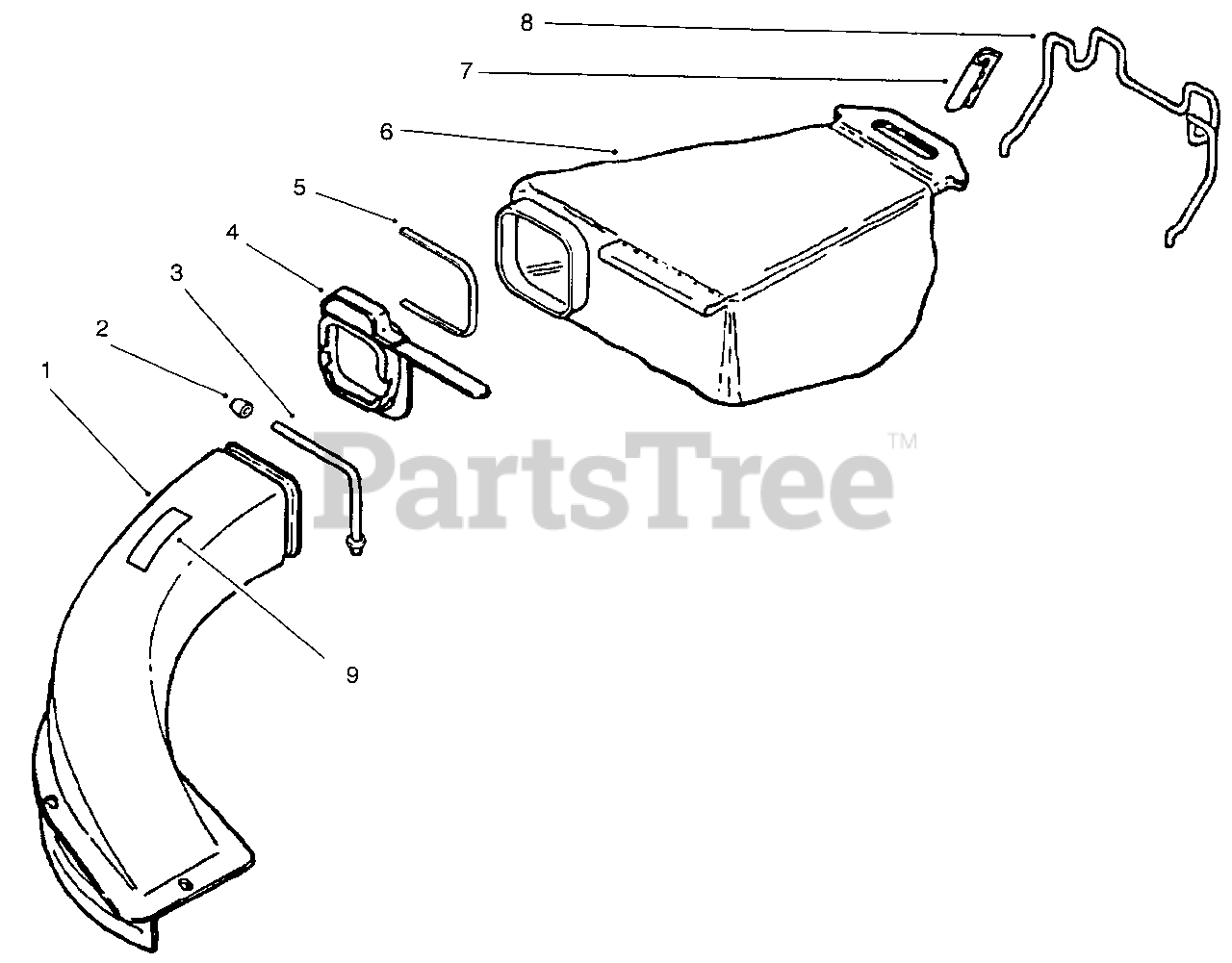

10418 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 006900001 - 006999999) (1996) REAR CATCHER ASSEMBLY (MODEL NO. 10522) Parts Diagram

Gold Series Walk-Behind Mower

REAR CATCHER ASSEMBLY (MODEL NO. 10522) Parts Diagram

  • Title
1

Lawn-Boy 684729

Chute & Support Assy (Incl. Ref. #2, 3 & 9)

$

$

Not available

2

Lawn-Boy 614589

Nut-Cap

$

$

Not available

3

Lawn-Boy 614591

Chute Support

$

$

Not available

4

Lawn-Boy 684727

Adaptor Assembly
(Superseded to 684727-03)

$153.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 614700

Tie Strap

$7.49

$

Usually ships in 3-6 days

0

6

Lawn-Boy 684728

Bag Assembly (Inc. Ref.#4-5)

$

$

Not available

Replacement Bag

Note: Not Illustrated

$

$

Not available

7

Lawn-Boy 613462

Hanger Clamp
(Superseded to 613462-03)

$

$

Not available

8

Lawn-Boy 613455

Wide Hanger

$73.99

$

In Stock, only 4 left!

0

9

Lawn-Boy 92-2919

Decal-Danger

$

$

Not available
