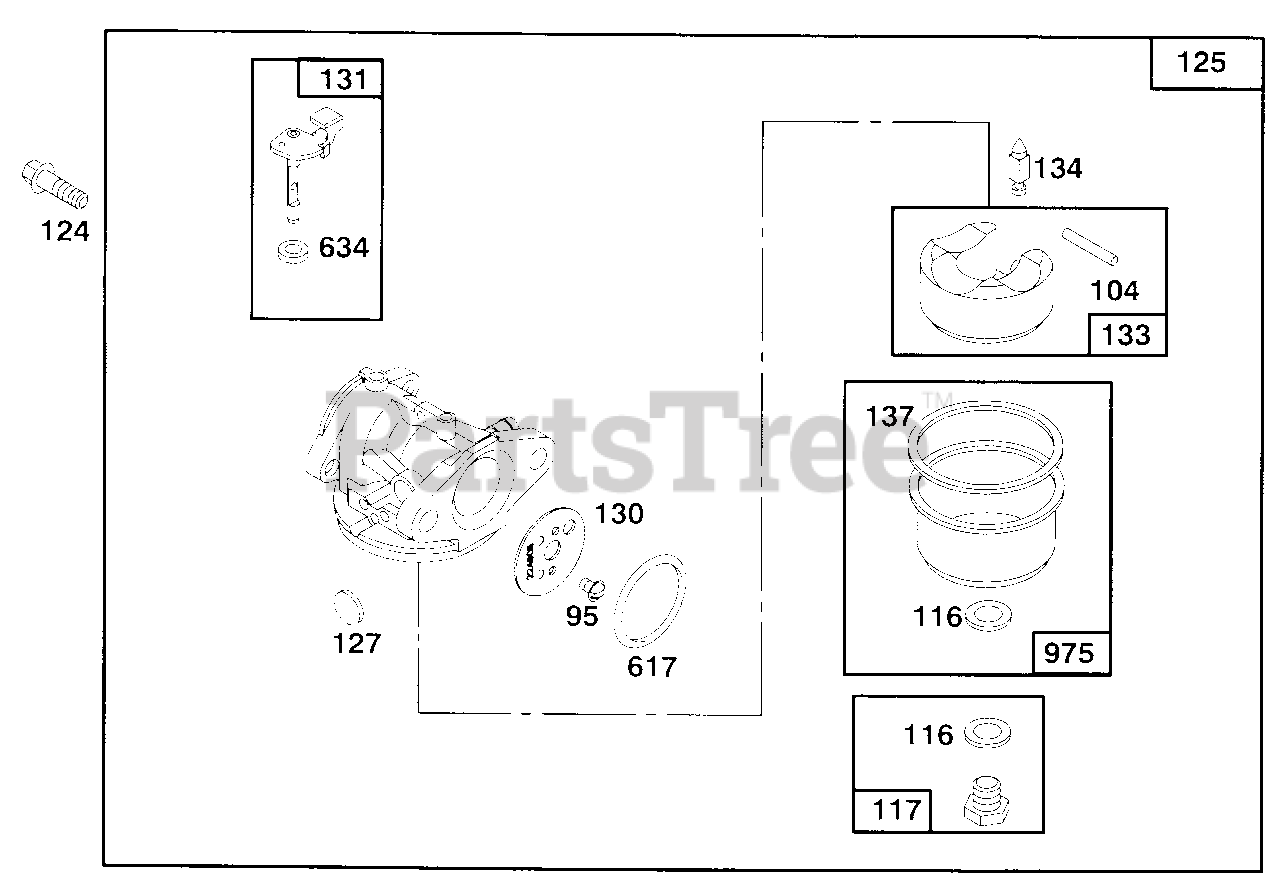

10418 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 006900001 - 006999999) (1996) ENGINE BRIGGS & STRATTON MODEL 128702-0624-01 Parts Diagram

Gold Series Walk-Behind Mower

ENGINE BRIGGS & STRATTON MODEL 128702-0624-01 Parts Diagram

  • Title

95

Lawn-Boy 94098

Screw-Throttle Valve Mtg.

$

$

Currently unavailable

104

Lawn-Boy 231371

Pin-Float Hinge
(Superseded to 701979)

Note: Included in Carburetor Kit-Part No.493762.

$

$

Not available

116

Gasket-Sealing (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No.493762. Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

117

Lawn-Boy 497466

Screw-Bowl Mtg. (Std.) Note: 496495 Screw Bowl Mtg. (High Altitude)

$

$

Currently unavailable

124

Lawn-Boy 94525

Screw-Carburetor Mtg.

$

$

Currently unavailable

125

Lawn-Boy 498254

Carburetor

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No.493762.

$

$

Not available

130

Lawn-Boy 224908

Valve-Throttle

$

$

Currently unavailable

131

Lawn-Boy 493267

Shaft-Throttle

$

$

Currently unavailable

133

Lawn-Boy 398187

Float Assy.-Carburetor

$

$

Currently unavailable

134

Lawn-Boy 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Kit-Part No.493762.

$

$

Currently unavailable

137

Gasket-Bowl (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No.493762. Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

617

Lawn-Boy 270344

Seal-Fuel Intake Tube

Note: Included in Carburetor Kit-Part No.493762. Included in Carburetor Gasket Set-Part No. 490937.

$

$

Currently unavailable

634

Washer-Shaft (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No.493762. Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

975

Lawn-Boy 493640

Bowl Assy.-Carburetor

$

$

Currently unavailable
