10416 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 003900001 - 003999999) (1993) ENGINE BRIGGS & STRATTON MODEL 126702-3193-01 Parts Diagram

Gold Series Walk-Behind Mower

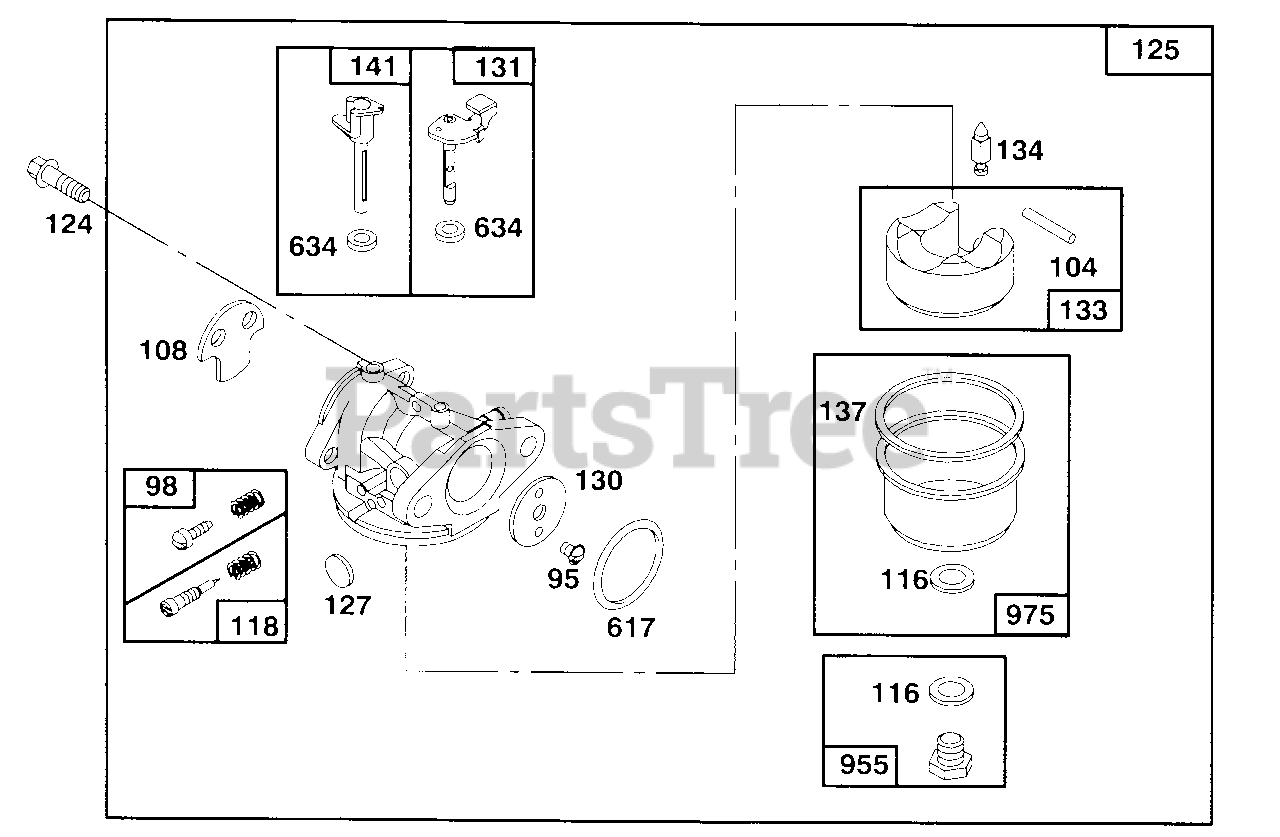

ENGINE BRIGGS & STRATTON MODEL 126702-3193-01 Parts Diagram

  • Title
95

Lawn-Boy 94098

Screw-Throttle Valve Mtg.

$

$

Currently unavailable

98

Lawn-Boy 398185

Screw-Idle Adjustment

$

$

Currently unavailable

104

Lawn-Boy 231371

Pin-Float Hinge
(Superseded to 701979)

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

108

Lawn-Boy 223471

Valve-Choke

$

$

Currently unavailable

116

Gasket-Sealing (Sold in Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

118

Lawn-Boy 493765

Valve and Spring-Needle

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Currently unavailable

124

Lawn-Boy 94525

Screw-Carburetor Mtg.

$

$

Currently unavailable

125

Lawn-Boy 494217

Carburetor Assembly

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

130

Lawn-Boy 223470

Valve-Throttle

$

$

Currently unavailable

131

Lawn-Boy 493267

Shaft and Lever-Throttle

$

$

Currently unavailable

133

Lawn-Boy 398187

Float Assy.-Carburetor

$

$

Currently unavailable

134

Lawn-Boy 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Currently unavailable

137

Gasket-Bowl (Sold in Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

141

Lawn-Boy 494218

Shaft-Choke

$

$

Currently unavailable

617

Lawn-Boy 270344

Seal-Fuel Intake Tube

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Currently unavailable

634

Washer-Shaft (Sold in Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

955

Lawn-Boy 493869

Screw-Bowl Mtg.

$

$

Currently unavailable

975

Lawn-Boy 493640

Bowl Assy.-Carburetor

$

$

Currently unavailable
