10415 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 005900001 - 005999999) (1995) REAR WHEEL DRIVE ASS'Y (MODEL NO. 10515 & 10520) Parts Diagram

Gold Series Walk-Behind Mower

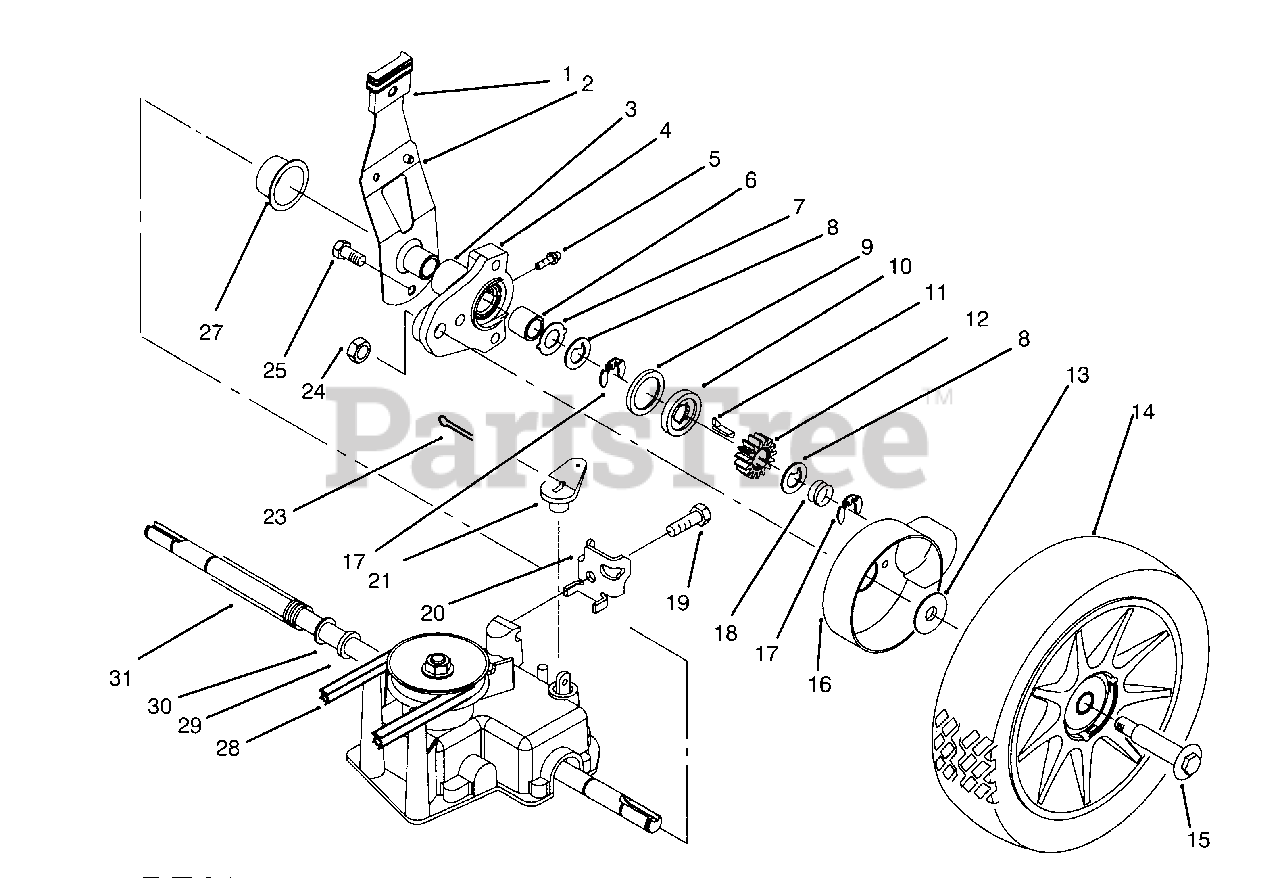

REAR WHEEL DRIVE ASS'Y (MODEL NO. 10515 & 10520) Parts Diagram

  • Title
1

Lawn-Boy 92-1008

Knob-Spring Arm (Ref.)

$12.99

$

In Stock, only 2 left!

0

2

Lawn-Boy 92-6540

Spring Arm Assembly L.H.

$20.99

$

In Stock, only 1 left!

0

Lawn-Boy 92-6539

Spring Arm Assembly R.H.

Note: Not Illustrated

$20.99

$

In Stock, only 2 left!

0

3

$4.99

$

In Stock, Qty 6

0

4

Lawn-Boy 92-7746

Pivot Arm Assembly (Incl. Ref. #3, 5, & 6)

$43.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 614442

Fitting-Grease (Ref.)

$

$

Not available

6

$6.49

$

In Stock, Qty 5

0

7

Lawn-Boy 65-4730

Washer-Thrust

$2.49

$

In Stock, Qty 9

0

8

Lawn-Boy 65-4740

Washer-Thrust

$2.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 65-4710

Ring-Friction

$2.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 65-4760

Washer-Clutch

$1.49

$

In Stock, Qty 17

0

11

Lawn-Boy 66-6050

Key-Rocking, L.H.
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 16

0

Lawn-Boy 66-6040

Key-Rocking, R.H.
(Superseded to 139-6643)

Note: Not Illustrated

$7.49

$

In Stock, Qty 8

0

12

Lawn-Boy 65-4750

Gear-Pinion

$11.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 614426

Washer-Stepped

$3.49

$

In Stock, Qty 13

0

14

Lawn-Boy 92-1042

Wheel-8"

$49.99

$

In Stock, only 3 left!

0

15

Lawn-Boy 92-1057

Bolt-Wheel

$3.99

$

In Stock, Qty 15

0

16

Lawn-Boy 614427

Cover-Wheel
(Superseded to 94-1609)

$8.99

$

In Stock, Qty 5

0

17

Lawn-Boy 65-2720

Ring-Retaining

$1.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 65-4720

Spring-Compression

$1.49

$

In Stock, Qty 20+

0

19

Lawn-Boy 32144-70

Screw-Hex. Hd.

$2.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 82-8780

Retainer-Cable

$14.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 60-8821

Lever-Shift

$9.99

$

In Stock, only 1 left!

0

23

Lawn-Boy 3272-10

Pin-Cotter

$1.49

$

In Stock, Qty 14

0

$2.49

$

In Stock, only 2 left!

0

$1.99

$

In Stock, Qty 20+

0

27

$7.49

$

In Stock, Qty 7

0

28

Lawn-Boy 92-1043

"V" Belt

$18.99

$

In Stock, only 2 left!

0

29

Lawn-Boy 605255

Washer-Felt

$1.49

$

In Stock, Qty 20+

0

30

Lawn-Boy 303259

Washer-Flat

$1.99

$

In Stock, Qty 8

0

31

Lawn-Boy 24-7920

Cover-Drive Shaft

$9.99

$

Usually ships in 3-6 days

0
