10415 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 005900001 - 005999999) (1995) DECK AND WHEEL ASSEMBLY (MODEL NO. 10415) Parts Diagram

Gold Series Walk-Behind Mower

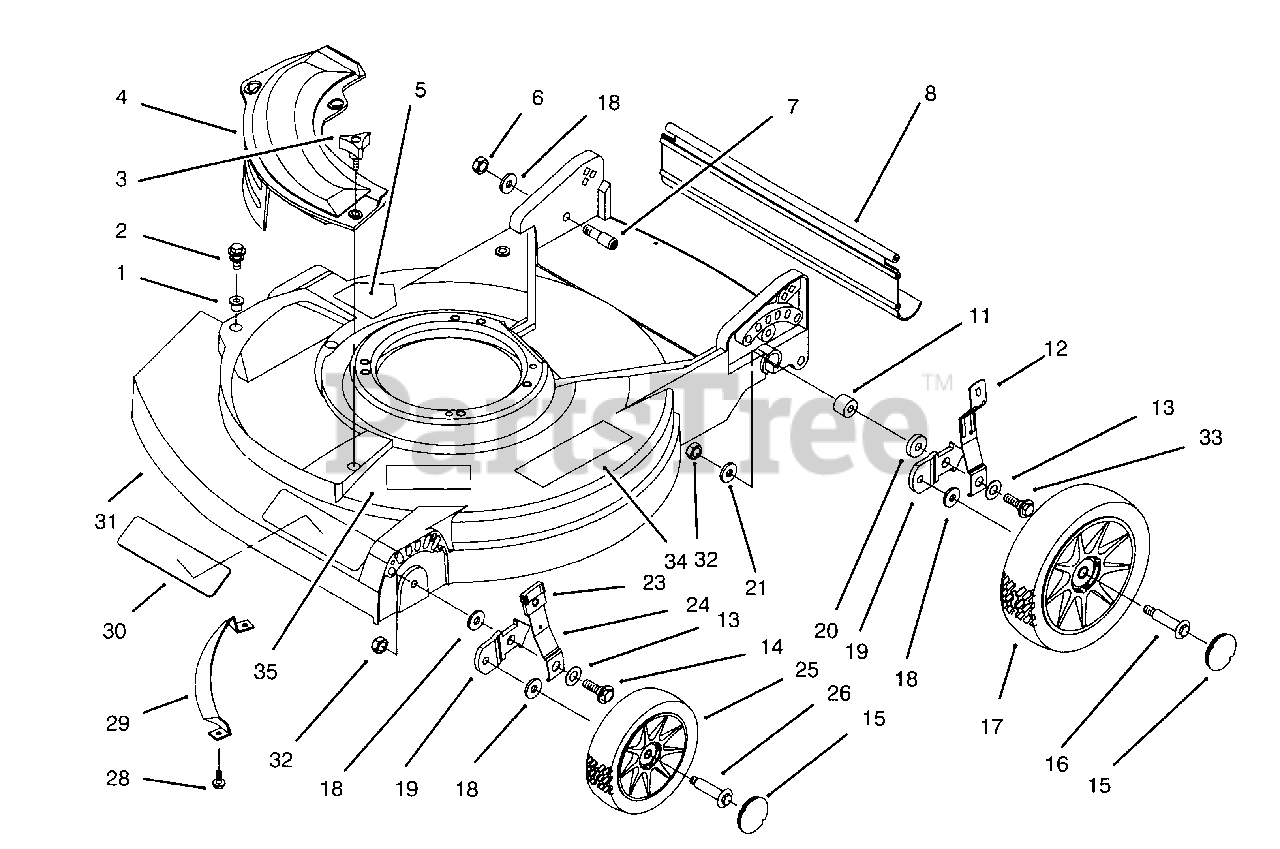

DECK AND WHEEL ASSEMBLY (MODEL NO. 10415) Parts Diagram

  • Title
1

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

$1.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 614677

Screw-Thread Forming

$4.49

$

In Stock, Qty 12

0

3

Lawn-Boy 614682

Knob
(Superseded to 98-8332)

$5.49

$

In Stock, Qty 13

0

4

Lawn-Boy 92-8630

Cover-Plate, Mulch

$

$

Not available

Lawn-Boy 607560

Cover-Side Discharge
(Superseded to 95-7052)

Note: Not Illustrated

$36.99

$

In Stock, only 3 left!

0

5

Lawn-Boy 39-5770

Decal-Danger (English)

$8.99

$

In Stock, Qty 8

0

$2.99

$

In Stock, Qty 12

0

7

Lawn-Boy 92-9673

Bolt-Shoulder

$7.49

$

In Stock, only 2 left!

0

8

Lawn-Boy 92-7736

Shield-Trailing

$40.99

$

In Stock, only 3 left!

0

11

$10.99

$

In Stock, Qty 17

0

12

Lawn-Boy 92-1005

Spring Arm Assembly

$21.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 3290-413

Washer-Belleville

$5.49

$

Usually ships in 3-6 days

0

14

Lawn-Boy 92-4856

Bolt-Shoulder

$76.99

$

Usually ships in 3-6 days

0

15

$2.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 614650

Bolt-Wheel

$4.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 684777

Wheel Assembly 8"

$59.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 40-1940

Washer-Wheel Bolt

$2.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 614637

Bracket-H. O. C.
(Superseded to 95-7403-03)

$

$

Not available

20

$

$

Not available

21

$14.99

$

In Stock, only 2 left!

0

23

Lawn-Boy 92-1008

Knob-Spring Arm

$14.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 92-1006

Spring Arm Assembly

$12.99

$

In Stock, only 2 left!

0

25

Lawn-Boy 684776

Wheel-6"

$37.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 92-1099

Bolt-Wheel

$8.49

$

In Stock, Qty 20+

0

28

$3.49

$

In Stock, only 3 left!

0

29

Lawn-Boy 608175

Bar-Toe

$77.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 614701

Applique

$

$

Not available

31

Lawn-Boy 16-5769

Housing-21" (Incl. Ref. #5 & 30)

$

$

Not available

32

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 20+

0

33

Lawn-Boy 92-7674

Bolt-Shoulder

$2.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 93-7250

Decal-Warning

$15.99

$

In Stock, only 2 left!

0

35

Lawn-Boy 93-3191

Decal-No Rust

$

$

Not available
