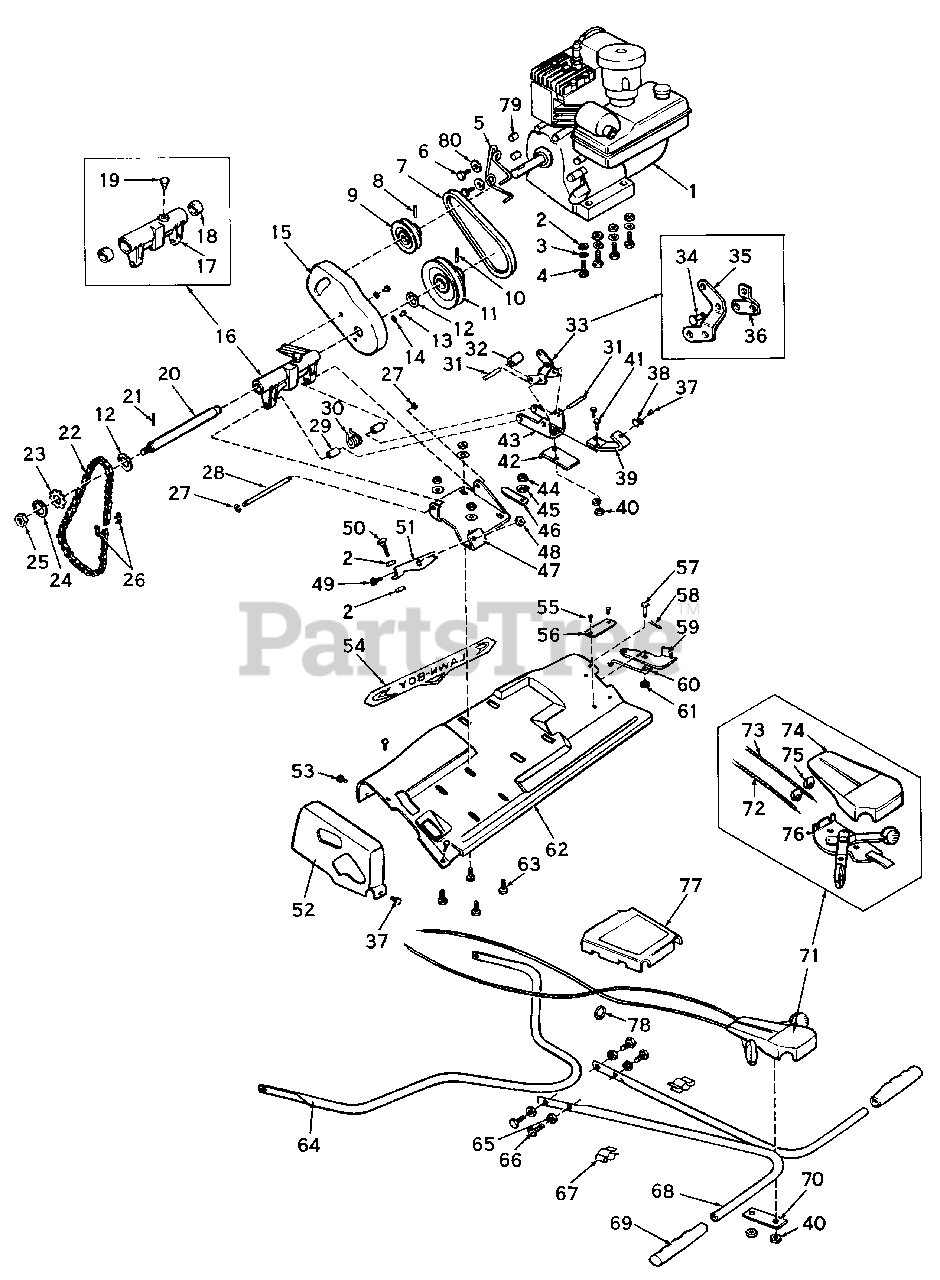

1041 - Lawn-Boy Walk-Behind Mower (SN: 900000001 - 999999999) (1959) MODELS 1041 AND 1051 MOWERS PARTS LIST Parts Diagram

Walk-Behind Mower

MODELS 1041 AND 1051 MOWERS PARTS LIST Parts Diagram

  • Title

1

Lawn-Boy 2200-5-19

Engine for 1041-0-18"

$

$

Currently unavailable

1

Lawn-Boy 2200-6-19

Engine for 1051-0-21"

$

$

Currently unavailable

2

Lawn-Boy 70

Nut (5/16-18 Hex.)

$

$

Currently unavailable

3

Lawn-Boy 1025

Lockwasher (5/16)
(Superseded to 703209)

$

$

Not available

4

Lawn-Boy 1529-11

Bolt (5/16-18 x 1-3/8 Carriage)

$

$

Currently unavailable

5

Lawn-Boy 2724-5

Keeper-18"

$

$

Currently unavailable

5

Lawn-Boy 2724-6

Keeper-21"

$

$

Currently unavailable

6

Lawn-Boy 1509-69

Screw (1/4-20 x 1-3/4 Hex. Hd.)

$

$

Currently unavailable

7

Lawn-Boy 1651-20

"V" Belt

$

$

Currently unavailable

8

Lawn-Boy 1508-13

Screw (5/16-24 x 7/32)

$

$

Currently unavailable

9

Lawn-Boy 1626-40-19

Pulley-18"

$

$

Currently unavailable

9

Lawn-Boy 1626-39-19

Pulley-21"

$

$

Currently unavailable

10

Lawn-Boy 1548-11

Roll Pin

$

$

Currently unavailable

11

Lawn-Boy 2120-34-19

Pulley Assembly

$

$

Currently unavailable

12

Lawn-Boy 1540-17

Washer (5/8 x 5/16)

$

$

Currently unavailable

13

Lawn-Boy 1511-9

Screw (#10-32 x 1/2 Sems Ph. Hd. Thd Cut.)

$

$

Currently unavailable

14

Lawn-Boy 1540-55

Washer

$

$

Currently unavailable

15

Lawn-Boy 2639-30-19

Belt Guard

$

$

Currently unavailable

16

Lawn-Boy 2102-20

Jackshaft Housing, Bearings and Oiler Assembly

$

$

Currently unavailable

17

Lawn-Boy 3601-64-19

Jackshaft Housing

$

$

Currently unavailable

18

Lawn-Boy 1652-1

Bearing

$

$

Currently unavailable

19

Lawn-Boy 1691-2

Oiler

$

$

Currently unavailable

20

Lawn-Boy 1632-26

Jackshaft

$

$

Currently unavailable

21

Lawn-Boy 1546-2

Pin

$

$

Currently unavailable

22

Lawn-Boy 1654-2

Chain

$

$

Currently unavailable

23

Lawn-Boy 1638-16

Sprocket

$

$

Currently unavailable

24

Lawn-Boy 1036

Washer

$

$

Currently unavailable

25

Lawn-Boy 1538-16

Nut (5/16-20 Hex. Jam Lock.) (Gripco)

$

$

Currently unavailable

26

Lawn-Boy 1113-13

Connector Link

$

$

Currently unavailable

27

Lawn-Boy 1650-10

Retaining Ring

$

$

Currently unavailable

28

Lawn-Boy 1547-3

Pin

$

$

Currently unavailable

29

Lawn-Boy 1624-48

Spacer

$

$

Currently unavailable

30

Lawn-Boy 1642-30

Spring

$

$

Currently unavailable

31

Lawn-Boy 1548-13

Roll Pin

$

$

Currently unavailable

32

Lawn-Boy 1658-8

Roller

$

$

Currently unavailable

33

Lawn-Boy 1155-10

Roller Lever Assembly

$

$

Currently unavailable

34

Lawn-Boy 9

Rivet

$

$

Currently unavailable

35

Lawn-Boy 1705-9

Roller Lever-L.H.

$

$

Currently unavailable

36

Lawn-Boy 1705-10

Roller Lever-R.H.

$

$

Currently unavailable

37

Lawn-Boy 1117

Screw (#10-32 x 3/8 Ph. Rd. Hd. Thd. Cut. Sems)
(Superseded to 253-44)

$29.99

$

In Stock, only 1 left!

0

38

Lawn-Boy 1694-10

Clamp

$

$

Currently unavailable

39

Lawn-Boy 1609-93

Control Bracket

$

$

Currently unavailable

40

Lawn-Boy 1534-8

Nut (#10-32 Gripco)

$

$

Currently unavailable

41

Lawn-Boy 41-054

Screw (#10-32 x 9/16 Rd. Hd. Sems)

$

$

Currently unavailable

42

Lawn-Boy 1606-41

Plate

$

$

Currently unavailable

43

Lawn-Boy 1609-83-19

Bracket

$

$

Currently unavailable

44

Lawn-Boy 67

Nut (1/4-20 Hex.)

$

$

Currently unavailable

45

Lawn-Boy 1018

Lockwasher (1/4)
(Superseded to 703203)

$

$

Not available

46

Lawn-Boy 1624-50

Spacer

$

$

Currently unavailable

47

Lawn-Boy 3609-82-19

Bracket

$

$

Currently unavailable

48

Lawn-Boy 41-028

Nut (5/16-24 Hex. Lock. Gripco)

$

$

Currently unavailable

49

Lawn-Boy 1513-18

Bolt (5/16-24 Hex. Shoulder Bolt)

$

$

Currently unavailable

50

Lawn-Boy 1513-23

Bolt (5/16-18 x 1-5/8 Step)

$

$

Currently unavailable

51

Lawn-Boy 2705-6

Lever

$

$

Currently unavailable

52

Lawn-Boy 3639-32-19

Guard

$

$

Currently unavailable

53

Lawn-Boy 1513-21

Screw (5/16-24 x 1/2 Sems Pan. Hd.)

$

$

Currently unavailable

54

Lawn-Boy 2616-61

Lawn-Boy Label

$

$

Currently unavailable

55

Lawn-Boy 1020

Screw (#6 x 1/4 Rd. Hd. Ph. Self Tapping)
(Superseded to 700495)

$

$

Not available

56

Lawn-Boy 1605-120

Name Plate-18"

$

$

Currently unavailable

56

Lawn-Boy 1605-116

Name Plate-21"

$

$

Currently unavailable

57

Lawn-Boy 1545-7

Clevis Pin

$

$

Currently unavailable

58

Lawn-Boy 1547-4

Cotter Pin

$

$

Currently unavailable

59

Lawn-Boy 1627-19

Latch

$

$

Currently unavailable

60

Lawn-Boy 2642-32

Spring

$

$

Currently unavailable

61

Lawn-Boy 1097

Washer

$

$

Currently unavailable

62

Lawn-Boy 5690-9-19

Deck-18"

$

$

Currently unavailable

62

Lawn-Boy 5690-10-19

Deck-21"

$

$

Currently unavailable

63

Lawn-Boy 1529-15

Bolt (1/4-20 x 5/8)

$

$

Currently unavailable

64

Lawn-Boy 3712-7-19

Lower Handle Section-18"

$

$

Currently unavailable

64

Lawn-Boy 3712-8-19

Lower Handle Section-21"

$

$

Currently unavailable

65

Lawn-Boy 1538-8

Nut (1/4-20 Hex.)

$

$

Currently unavailable

66

Lawn-Boy 1509-22

Bolt (1/4-20 x 1-1/4 Hex.)

$

$

Currently unavailable

67

Lawn-Boy 1689-5

Clip

$

$

Currently unavailable

68

Lawn-Boy 3117-13-19

Upper Handle Section

$

$

Currently unavailable

69

Lawn-Boy 1710-5

Handle Grip

$

$

Currently unavailable

70

Lawn-Boy 1694-7

Clamp

$

$

Currently unavailable

71

Lawn-Boy 3142-17

Dual Throttle Control Assy.

$

$

Currently unavailable

72

Lawn-Boy 1171-1

Throttle Control Cable

$

$

Currently unavailable

73

Lawn-Boy 1171-2

Insta-Control Cable

$

$

Currently unavailable

74

Lawn-Boy 3622-39-20

Control Cover

$

$

Currently unavailable

75

Lawn-Boy 1689-9

Clip

$

$

Currently unavailable

76

Lawn-Boy 3103-22

Control Assembly

$

$

Currently unavailable

77

Lawn-Boy 1129-71

Handle Cover and Label

$

$

Currently unavailable

78

Lawn-Boy 1607-7

Ring

$

$

Currently unavailable

79

Lawn-Boy 1624-69

Spacer

$

$

Currently unavailable

80

Lawn-Boy 1540-23

Washer

$

$

Currently unavailable
