10401 C - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 008900001 - 008999999) (1998) AIR FILTER ASSEMBLY Parts Diagram

GoldPro Series Walk-Behind Mower

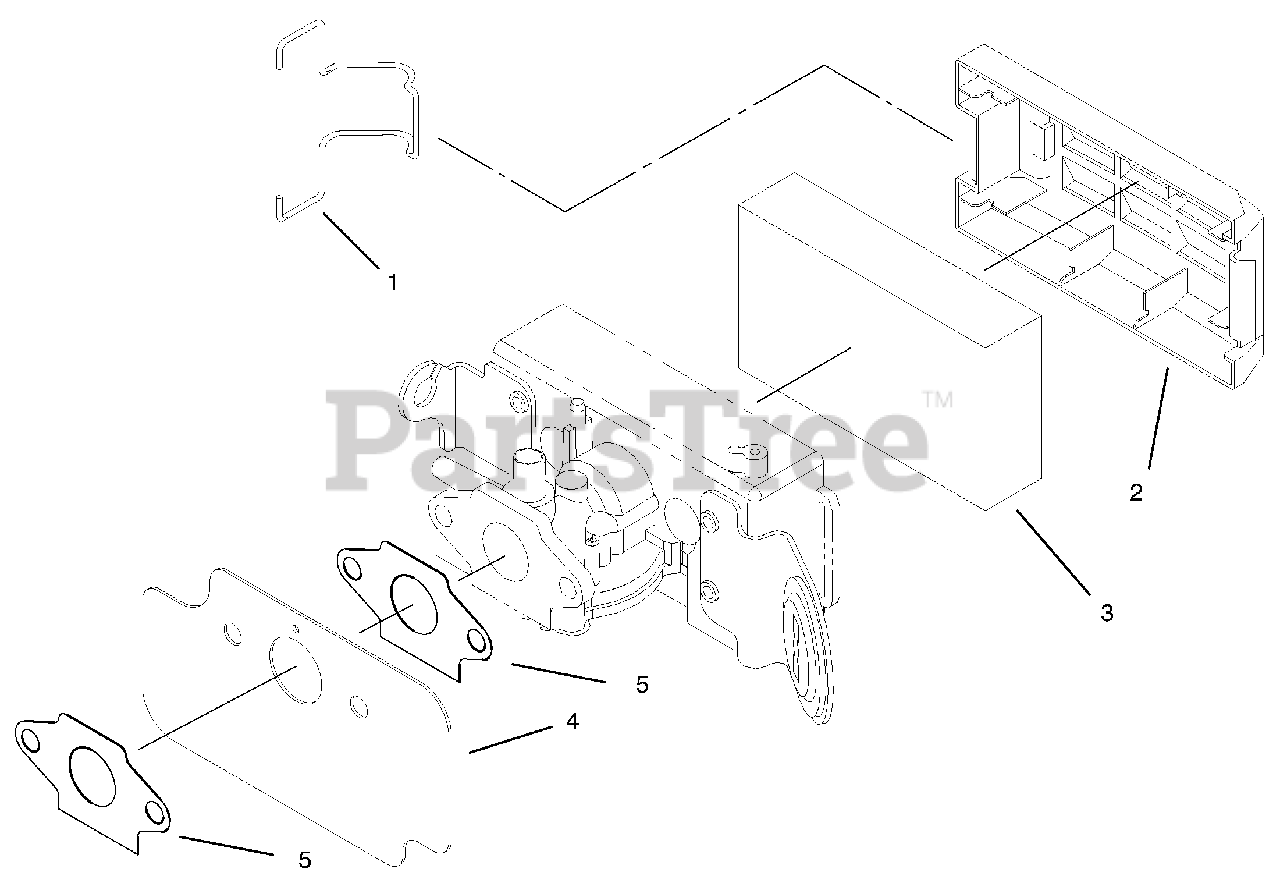

AIR FILTER ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 610383

Retainer-Cover

$9.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 93-1231

Cover-Air Filter

$

$

Not available

3

Lawn-Boy 609493

Element-Air Filter
(Superseded to 107-4621)

$5.49

$

In Stock, Qty 7

0

4

Lawn-Boy 93-1221

Shield-Heat

$

$

Not available

5

Lawn-Boy 92-4948

Gasket-Carb.

$1.99

$

In Stock, Qty 15

0
