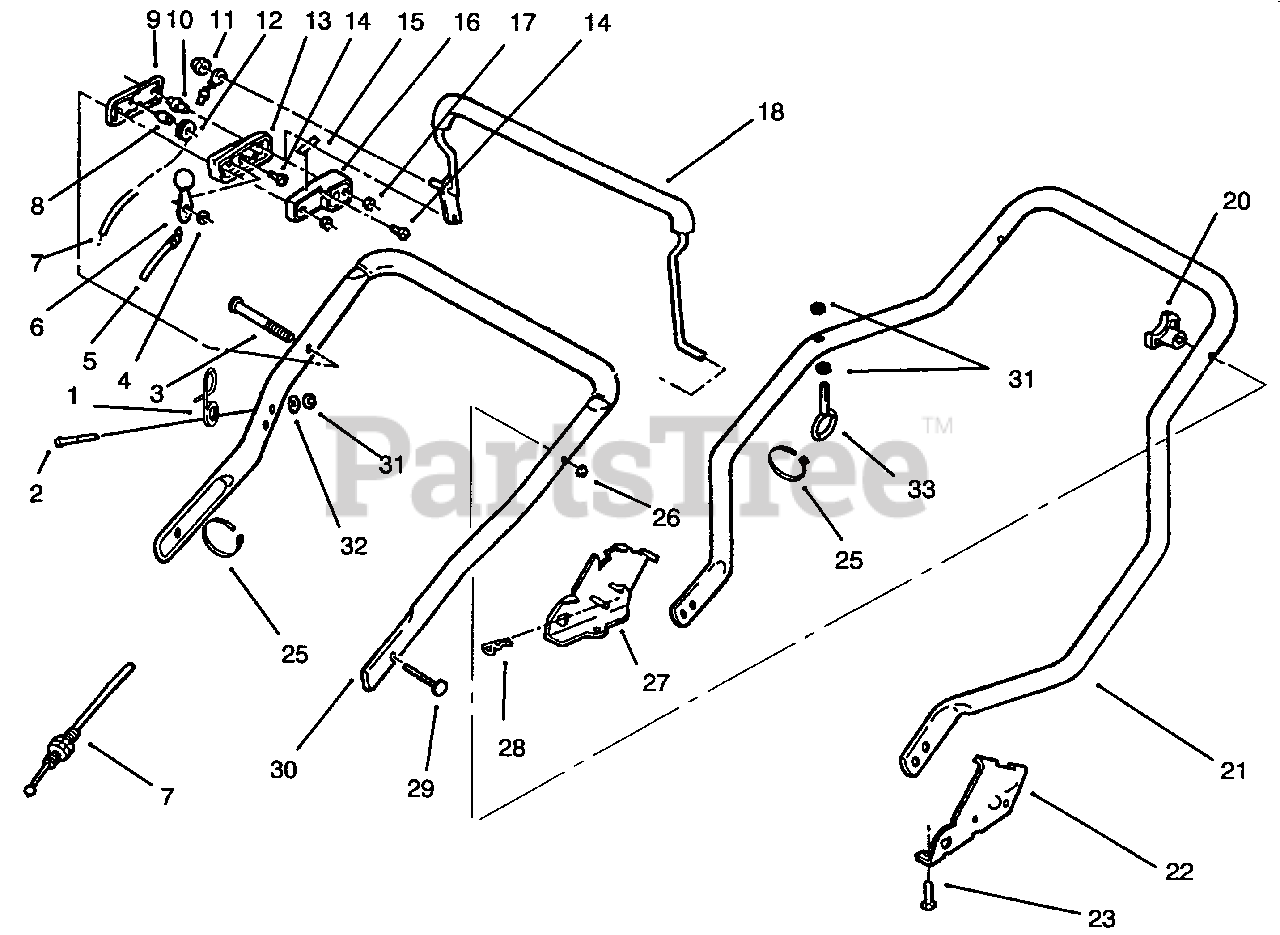

10400 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 004900001 - 004999999) (1994) HANDLE Parts Diagram

Gold Series Walk-Behind Mower

HANDLE Parts Diagram

  • Title
1

Lawn-Boy 92-2930

Rope Guide Assembly

$

$

Not available

2

$

$

Not available

3

$4.99

$

Usually ships in 3-6 days

0

4

$2.99

$

In Stock, only 4 left!

0

5

Lawn-Boy 612588

Cable-Throttle

$50.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 683663

Lever & Knob Assembly

$

$

Not available

7

Lawn-Boy 683041

Control Cable Assembly

$114.99

$

Usually ships in 3-6 days

0

$3.49

$

Usually ships in 3-6 days

0

9

Lawn-Boy 611777

Control Case Outer

$27.99

$

In Stock, only 1 left!

0

10

$12.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 612168

Nut-Acorn

$17.99

$

Usually ships in 3-6 days

0

12

$5.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 612633

Case-Throttle, Center

$

$

Not available

14

$3.99

$

In Stock, Qty 6

0

15

Lawn-Boy 612698

Decal-Throttle

$

$

Not available

16

Lawn-Boy 612634

Case-Throttle, Inner

$

$

Not available

$1.49

$

In Stock, Qty 6

0

18

Lawn-Boy 683478

Lever-Control

$138.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 614243

Knob
(Superseded to 98-7134)

$2.99

$

In Stock, Qty 16

0

21

Lawn-Boy 613363

Handle-Lower

$

$

Not available

22

Lawn-Boy 683925

Bracket-Handle L.H.
(Superseded to 683925-03)

$80.99

$

Usually ships in 3-6 days

0

23

$3.49

$

In Stock, only 3 left!

0

25

Lawn-Boy 614249

Tie Strap

$1.49

$

In Stock, Qty 6

0

26

Lawn-Boy 605546

Nut-Push
(Superseded to 32112-11)

$1.49

$

In Stock, Qty 6

0

27

Lawn-Boy 683926

Bracket-Handle R.H.
(Superseded to 683926-03)

$75.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 605803

Pin-Cotter

$

$

Not available

29

$2.49

$

In Stock, Qty 13

0

30

Lawn-Boy 612683

Handle Assembly-Top

$

$

Not available

31

Lawn-Boy 3296-73

Nut-Lock

$5.49

$

In Stock, Qty 6

0

33

Lawn-Boy 611571

EyeBolt

$14.99

$

Usually ships in 3-6 days

0
