10400 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 003900001 - 003999999) (1993) DECK, MUFFLER COVER, BLADE & WHEELS Parts Diagram

Gold Series Walk-Behind Mower

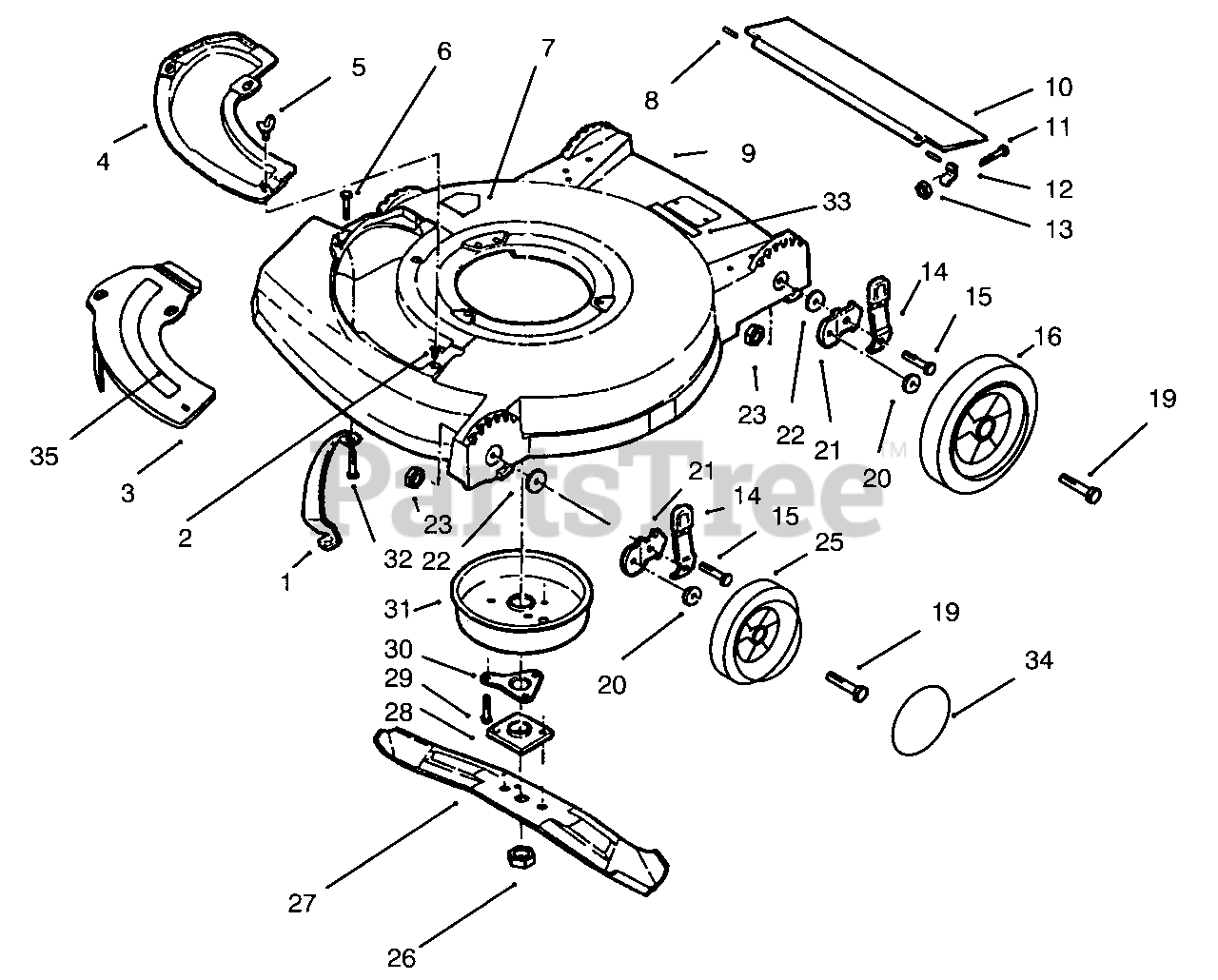

DECK, MUFFLER COVER, BLADE & WHEELS Parts Diagram

  • Title

1

Lawn-Boy 608159

Toe Bar

$

$

Not available

2

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

$0.99

$

In Stock, Qty 14

0

3

Lawn-Boy 684619

Cover-Plate, Mulch (Incl. Ref. #35)

$106.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 607560

Cover Plate
(Superseded to 95-7052)

$30.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 614682

Nut-Wing
(Superseded to 98-8332)

$5.49

$

In Stock, Qty 18

0

6

Lawn-Boy 614677

Screw-Plate Mounting

$3.99

$

In Stock, Qty 16

0

7

Lawn-Boy 39-5770

Decal-Danger (Engish)

$7.99

$

In Stock, Qty 8

0

Lawn-Boy 92-5429

Decal-Danger (French/English)

Note: Not Illustrated

$

$

Not available

8

Lawn-Boy 32121-61

Pin-Roll

$1.49

$

In Stock, Qty 6

0

9

Lawn-Boy 16-2169

Housing Assembly (Incl. Ref. # 2, 7 & 33)

$

$

Not available

10

Lawn-Boy 92-1048

Shield-Trailing

$43.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 321-39

Screw-Trailing Shield

$0.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 608161

Clamp

$10.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 3296-73

Nut

$5.49

$

In Stock, Qty 6

0

14

Lawn-Boy 92-4880

Knob and Spring Assembly
(Superseded to 153444)

$

$

Not available

15

Lawn-Boy 610646

Bolt-Shoulder

$6.49

$

Usually ships in 3-6 days

0

16

Lawn-Boy 684777

Wheel-Rear 8"

$52.99

$

In Stock, only 2 left!

0

19

Lawn-Boy 92-1099

Bolt-Wheel

$7.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 40-1940

Washer

$2.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 608833

Bracket-Wheel Ht. Adjust
(Superseded to 608833-03)

$22.99

$

In Stock, only 2 left!

0

22

Lawn-Boy 608834

Washer-Wheel Ht. Adjust

$15.99

$

In Stock, only 2 left!

0

23

Lawn-Boy 603773

Nut-Wheel Ht. Adjust

$2.99

$

In Stock, only 4 left!

0

25

Lawn-Boy 684776

Wheel-Front 6"

$33.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 603164

Nut
(Superseded to 121-3611)

$5.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 612079

Blade 19"
(Superseded to 612079-03)

$33.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 677525

Collar and Plate Assembly

$23.99

$

In Stock, only 1 left!

0

29

Lawn-Boy 609471

Screw-Muff. to Muff. Plate

$4.99

$

In Stock, Qty 14

0

30

Lawn-Boy 609786

Support-Crankshaft

$20.99

$

In Stock, only 2 left!

0

31

Lawn-Boy 682876

Muffler Cover Assembly

$143.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 46-6811

Screw

$3.49

$

In Stock, only 3 left!

0

33

Lawn-Boy 92-2940

Decal-Warning (English
(Superseded to 92-4981)

$4.49

$

Usually ships in 3-6 days

0

Lawn-Boy 92-5427

Decal-Warning (French/English)

Note: Not Illustrated

$

$

Not available

34

Lawn-Boy 92-1604

Hub Cap

$2.49

$

In Stock, Qty 20+

0

35

Lawn-Boy 614551

Decal

$

$

Not available
