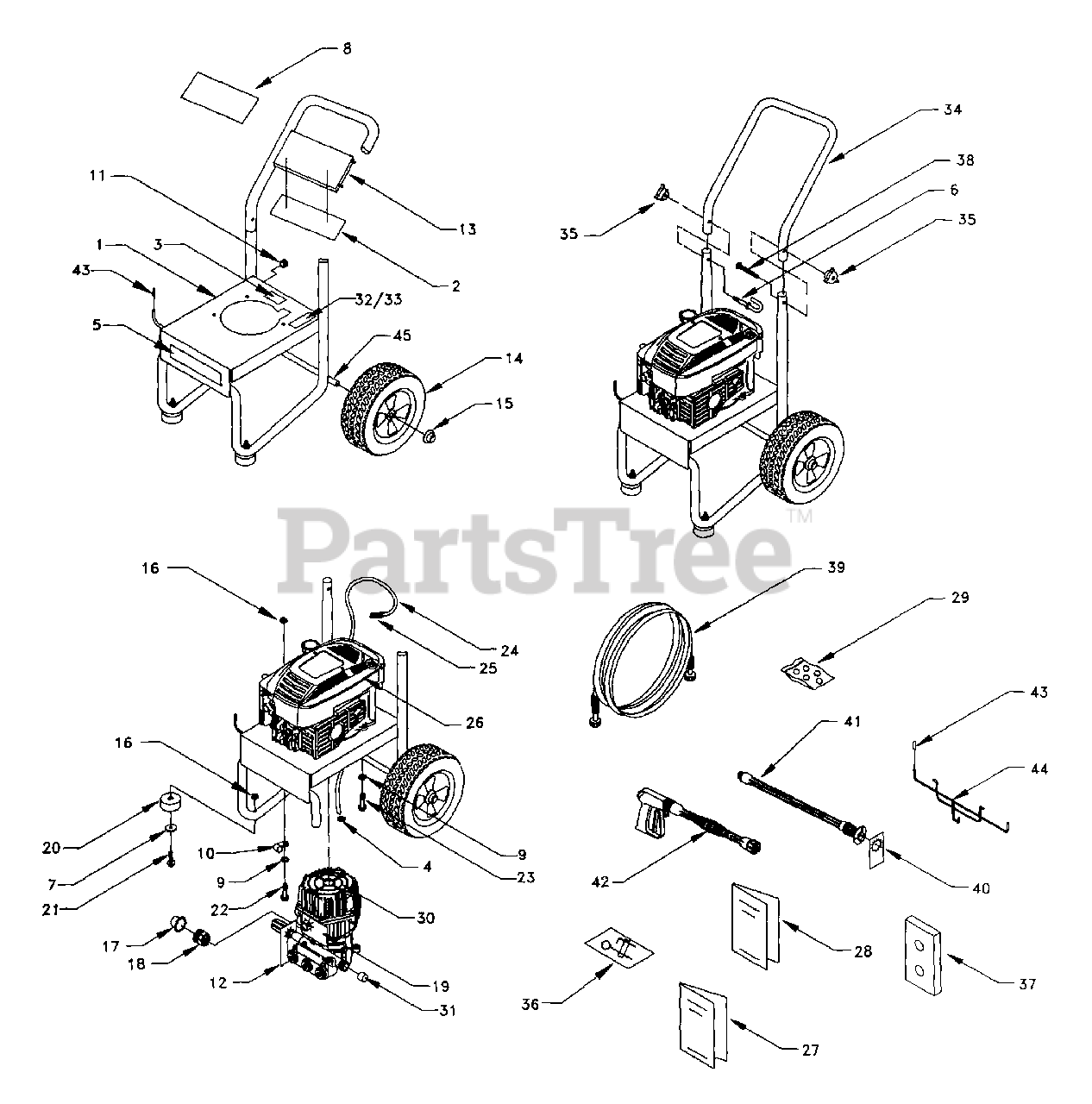

1040-2 - Generac 2,000 PSI Pressure Washer Main Unit Parts Diagram

2,000 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton AB2058

BASE, VSPW
(Superseded to AB2058GS)

$177.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B1932

DECAL, Instructions
(Superseded to B1932GS)

$15.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 20566

DECAL, 1-800 Number
(Superseded to 20566GS)

$1.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 48031G

CLAMP, Hose 3/16"
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B2192

DECAL, GENERAC
(Superseded to B2192GS)

$17.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B1730

BOLT, Eye

$

$

Not available

7

Briggs & Stratton 50190

WASHER, M8 Flat
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton B2060

DECAL, Logo 2000 PSI
(Superseded to B2060GS)

$15.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 22145

WASHER, M8 Flat

$

$

Not available

10

Briggs & Stratton B1232

CLAMP, Hose
(Superseded to B1232GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 30809

GROMMET, Chem Hose
(Superseded to 30809GS)

$4.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 97054

TAG, Pressure Adjust

$

$

Not available

13

Briggs & Stratton B1631B

BILLBOARD, Plastic
(Superseded to B1631BGS)

$29.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B1760

TIRE, 3.5" X 10" Black Mag
(Superseded to B1760GS)

$81.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 75402

PUSHNUT, 1/2"
(Superseded to 194062GS)

$4.49

$

In Stock, only 2 left!

0

16

Briggs & Stratton 52858

NUT, M8 Locking Flange
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

17

Briggs & Stratton A1408

CAP, Garden Hose Inlet
(Superseded to A1408GS)

$

$

Not available

18

Briggs & Stratton 21424

CONNECTOR, Garden Hose
(Superseded to 5022163)

$1985.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton B1288

TAG, Pump Breather Cap
(Superseded to B1288GS)

$1.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 27007

MOUNT, Rubber Foot
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 9

0

21

Briggs & Stratton B1214

HHCS, M8 X 1.25 X 45 Long
(Superseded to B1214GS)

$3.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 39414

HHCS, M8 x 35
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 52265

HHCS, M8 x 65
(Superseded to 52265GS)

$2.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton A1040C

HOSE, Chemical
(Superseded to A1040CGS)

$11.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton A1041

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton ~NSP

ENGINE, B & S 6HP, #12H812-2-681-E1, Spec B2216A

$

$

Currently unavailable

27

Briggs & Stratton B3356

MANUAL, B & S Engine
(Superseded to 380567TRI)

$

$

Not available

28

Briggs & Stratton B3408

MANUAL, Owners
(Superseded to B3408GS)

$14.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton B3057

KIT, O-Ring Maintenance

$

$

Currently unavailable

30

-----

PUMP, GPW-FH Assembly, B3358A

Note: (For replacment, order 193461GS)

$

$

Not available

30

Briggs & Stratton 193461GS

REPLACEMENT PUMP ASSEMBLY

Note: (Must also order 208673GS Thermal Relief Valve)

$371.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 208673GS

VALVE, Relief, Thermal

$14.99

$

In Stock, Qty 20+

0

31

Briggs & Stratton 97100

CAP, High Pressure
(Superseded to 97100GS)

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 88056

DECAL, Data

$

$

Currently unavailable

33

Briggs & Stratton 79552

OVERLAMINATE

$

$

Not available

34

Briggs & Stratton AB1945

HANDLE, VS PW
(Superseded to AB1945GS)

$76.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 97178

KNOB, PW Handle
(Superseded to 97178GS)

$8.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton B2163

KIT, Nozzle Cleaning

$

$

Currently unavailable

37

Briggs & Stratton B2430

VIDEO
(Superseded to B2430GS)

$31.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 31669

BOLT, 1/4-20 X 1.75 Carriage
(Superseded to 31669GS)

$3.49

$

In Stock, only 2 left!

0

39

Briggs & Stratton B1969

HOSE, 1/4" X 25'

$

$

Currently unavailable

40

Briggs & Stratton 97566

HANG TAG, Nozzle
(Superseded to 97566GS)

$1.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton B1867E

WAND, Adjustable Nozzle
(Superseded to B1867EGS)

$81.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton B3263

GUN, High Pressure
(Superseded to 704312)

$93.99

$

In Stock, Qty 7

0

43

Briggs & Stratton B1460

CAP, Vinyl Black
(Superseded to B1460GS)

$2.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton B1953A

WIREFORM
(Superseded to B1953AGS)

$30.99

$

Usually ships in 2-12 days

0

45

-----

UNKNOWN

$

$

Not available
