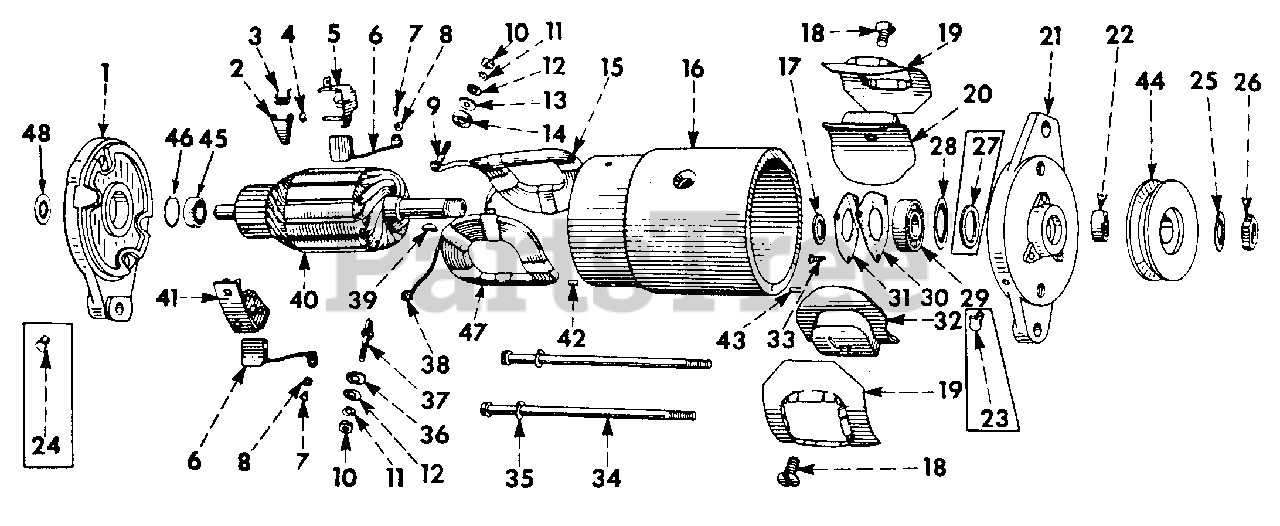

104 - Cub Cadet Garden Tractor Motor Generator-Delco-Remy Parts Diagram

Garden Tractor

Motor Generator-Delco-Remy Parts Diagram

  • Title

Cub Cadet IH-330820Z

Motor Generator Assy, 12 Volt

$

$

Not available

1

Cub Cadet IH-1939907

Frame Assy, Commutator End Clamp Frame Pin Plug

$

$

Not available

2

Cub Cadet IH-1944373

Arm, Brush

$

$

Currently unavailable

3

Cub Cadet IH-1916324

Spring, Brush

$

$

Currently unavailable

4

~NLA

Washer, Brush Arm Space

$

$

Not available

5

~NLA

Holder, Brush Ground

$

$

Not available

6

Cub Cadet IH-1946427

Brush
(Superseded to IH-1946427P)

$

$

Not available

7

~NLA

Screw, No. 6 X 1/4 C-Z Slt Rd Hd Mach

$

$

Not available

~NLA

Screw, No. 6 X 5/16 C-Z Slt Rd Hd Mach

$

$

Not available

8

Cub Cadet IH-131044

Washer, Brush Lead Attaching Screw Lock

$

$

Currently unavailable

9

~NLA

Stud, Terminal Field

$

$

Not available

10

Cub Cadet IH-121743

Nut, No. 12 C-Z Hex

$

$

Not available

11

~NLA

Washer, Field Terminal Stud Lock

$

$

Not available

12

~NLA

Washer, Terminal Stud

$

$

Not available

13

Cub Cadet IH-1858753

Washer, Terminal Stud Insulating

$

$

Not available

14

~NLA

Bushing, Field Terminal Insulating

$

$

Not available

Cub Cadet IH-1939894

Bushing, Field Terminal Insulating Inside

$

$

Currently unavailable

15

Cub Cadet 759-3358

Coil, Field

Note: (Set of two)

$

$

Not available

16

Frame

Note: (Not serviced separately)

$

$

Not available

17

Cub Cadet IH-1861591

Collar, Drive End Spacer - Inside

$

$

Currently unavailable

18

Cub Cadet IH-1968396

Screw, Pole Shoe

$

$

Not available

19

Cub Cadet IH-1912073

Insulator, Field Coil

$

$

Not available

20

~NLA

Shoe, Pole

$

$

Not available

21

~NLA

Frame, Drive End

$

$

Not available

22

Cub Cadet IH-1959991

Collar, Drive End Space

$

$

Not available

23

Not used in this application

$

$

Not available

24

Not used in this application

$

$

Not available

25

Cub Cadet IH-1941978

Washer, Drive End Shaft Nut Lock

$

$

Not available

26

Cub Cadet IH-1915172

Nut, Drive End Shaft

$

$

Currently unavailable

27

Not used in this application

$

$

Not available

28

Cub Cadet IH-1947344

Plate, Drive End Grease Slinger

$

$

Not available

29

Cub Cadet 741-0361

Bearing, Drive End Ball
(Superseded to 941-0361)

$49.99

$

In Stock, only 2 left!

0

30

Cub Cadet IH-1912008

Gasket, Drive End Retainer Plate

$

$

Not available

31

Cub Cadet IH-1971993

Plate, Drive End Retainer

$

$

Currently unavailable

32

~NLA

Shoe, Pole

$

$

Not available

33

Cub Cadet IH-1914580

Screw, Drive End Retainer Plate

$

$

Currently unavailable

34

Cub Cadet IH-809763

Bolt, Thru

$

$

Currently unavailable

35

Cub Cadet 736-0119

Washer, Thru Bolt
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

36

Cub Cadet IH-1921362

Bushing, Armature Terminal Insulating

$

$

Currently unavailable

37

Cub Cadet IH-1858749

Stud, Terminal Armature

$

$

Currently unavailable

38

~NLA

Clip, Terminal to Brush

$

$

Not available

39

Cub Cadet IH-124545

Key, No. 5 Woodruff Aly-Slt

$

$

Not available

40

Cub Cadet IH-1939904

Armature

Note: (Used with IH-1101951, IH-1101967 & IH-1101997)

$

$

Not available

~NLA

Armature

Note: (Also order end frame IH-434940)

$

$

Not available

41

Cub Cadet IH-1940422

Holder, Brush Insulated

$

$

Currently unavailable

42

~NLA

Pin, Commutator End Dowel

$

$

Not available

43

Cub Cadet IH-809593

Pin, Drive End Dowel

$

$

Currently unavailable

44

Cub Cadet KH-231278

Pulley, Motor Generator
(Superseded to KH-231278-S)

Note: (Not included in motor generator assy)

$72.99

$

Usually ships in 2-5 days

0

45

Cub Cadet IH-441805-R91

Bearing, Commutator End Ball
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

46

Cub Cadet IH-1929959

Clamp, Commutator End Bearing

$

$

Currently unavailable

47

Cub Cadet 759-3358

Coil, Field

Note: (Set of two)

$

$

Not available

48

Cub Cadet IH-1948326

Plug, Commutator End Bearing Well

Note: (Order Part No. IH-1939907)

$

$

Not available
