104-4671 - Toro Sales Kit for 522xi Indy Special Edition Tractor POWER STEERING AND TILT ASSEMBLY Parts Diagram

Sales Kit for 522xi Indy Special Edition Tractor

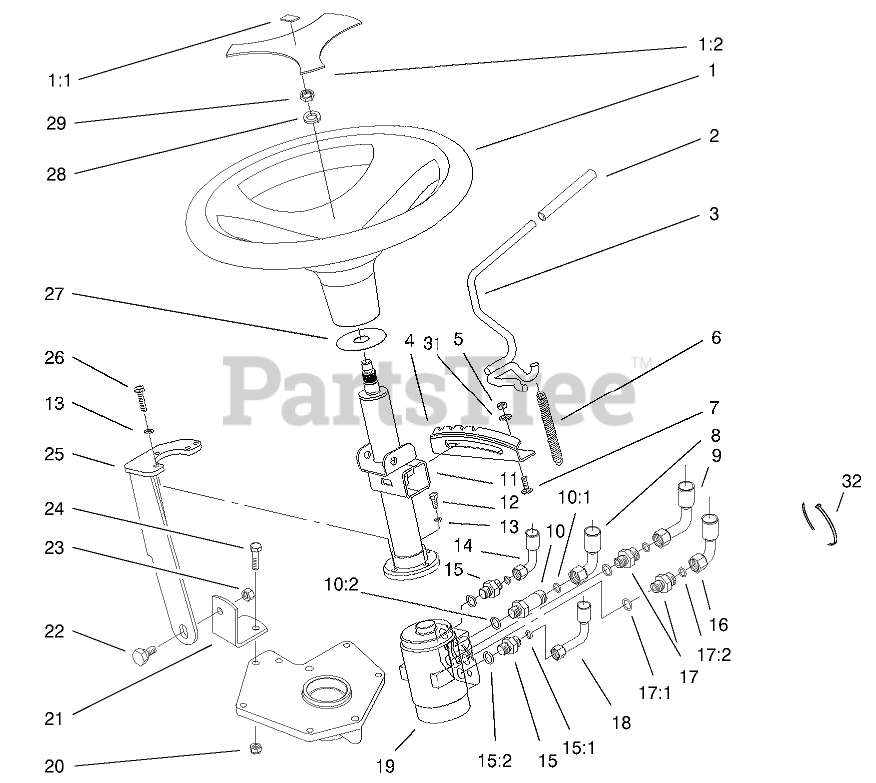

POWER STEERING AND TILT ASSEMBLY Parts Diagram

  • Title
1

Toro 98-1474

WHEEL-STEERING

$

$

Not available

1

Toro 98-7211

COVER ASM

$

$

Not available

1:1

Toro 98-1459

DECAL

$4.99

$

Usually ships in 3-6 days

0

1:2

Toro 98-1468

COVER-WHEEL, STEERING

$18.99

$

In Stock, only 1 left!

0

2

Toro 92-6798

CAP-ROD, TILT

$4.99

$

In Stock, only 2 left!

0

3

Toro 95-3964

LEVER-TILT

$

$

Not available

4

Toro 94-2382

BRACKET-DETENT

$24.99

$

Usually ships in 3-6 days

0

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

6

Toro 95-3805

SPRING

$14.99

$

In Stock, Qty 8

0

7

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

8

Toro 94-7947

HOSE ASM

$

$

Not available

9

Toro 94-7949

HOSE-ASM

$

$

Not available

10

Toro 95-4137

FITTING-HYD, LONG

$64.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

10:2

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

11

Toro 94-2451

COLUMN-POWER

$

$

Not available

12

Toro 33103-020

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

13

Toro 48-8020

WASHER-SPRING

$1.49

$

Usually ships in 3-6 days

0

14

Toro 94-7948

HOSE ASM

$

$

Not available

15

Toro 95-4139

FITTING-HYD. STRAIGHT

$

$

Not available

15:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

15:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

16

Toro 95-3807

HOSE ASM

$

$

Not available

17

Toro 95-4138

FITTING-HYD. STRAIGHT
(Superseded to 340-2)

$12.99

$

In Stock, only 2 left!

0

17:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

17:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

18

Toro 94-7946

HOSE ASM

$

$

Not available

19

Toro 94-7567

CONTROL UNIT-POWER STEERING

$

$

Not available

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 94-7599-03

Bracket-Pivot
(Superseded to 94-7599)

$

$

Not available

22

Toro 94-7582

BOLT-SHOULDER

$3.49

$

In Stock, only 2 left!

0

23

$6.49

$

In Stock, only 2 left!

0

24

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

25

Toro 94-7521-03

Pivot-Power String

$

$

Not available

26

Toro 33103-025

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

27

Toro 94-2025

WASHER-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

28

Toro 69-8420

WASHER-LOCK

$1.99

$

Usually ships in 3-6 days

0

29

Toro 95-4182

NUT-HH, JAM

$3.99

$

Usually ships in 3-6 days

0

31

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0
