104-4671 - Toro Sales Kit for 522xi Indy Special Edition Tractor BUMPER AND HOOD SUPPORT ASSEMBLY Parts Diagram

Sales Kit for 522xi Indy Special Edition Tractor

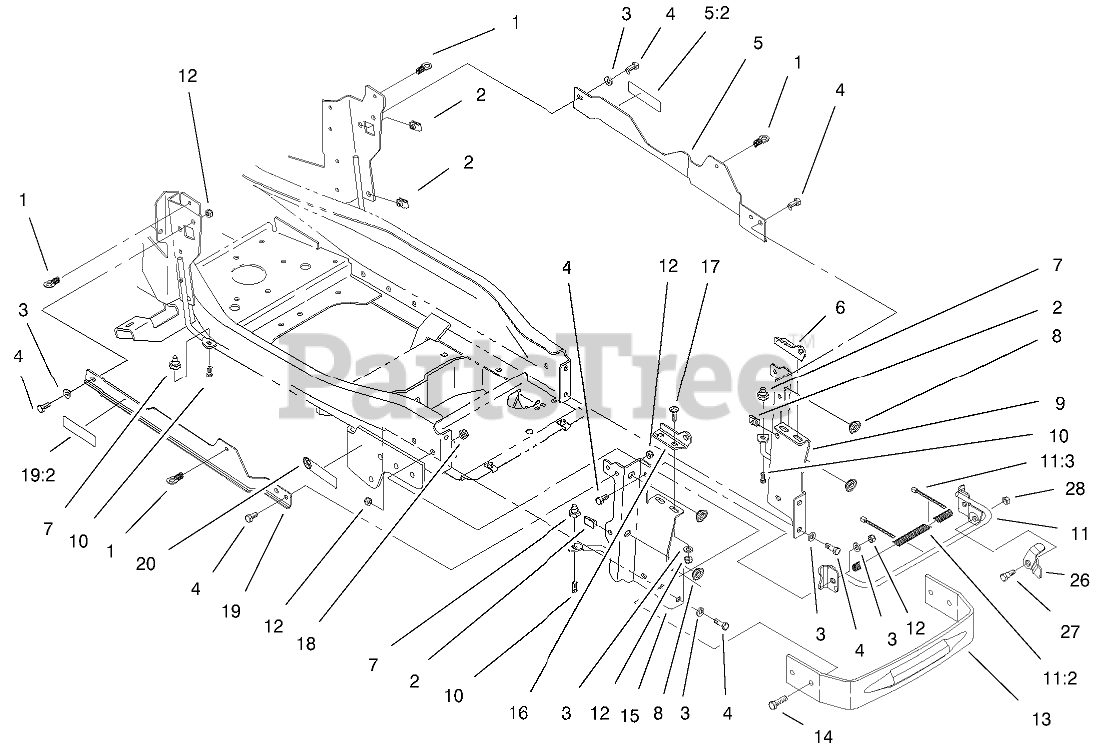

BUMPER AND HOOD SUPPORT ASSEMBLY Parts Diagram

  • Title
1

Toro 95-4013

LATCH ASM

$21.99

$

Usually ships in 3-6 days

0

2

$2.99

$

In Stock, Qty 20+

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 98-5064

SUPPORT / DECAL ASM

$

$

Not available

5:2

Toro 98-5014

DECAL-WARNING

$4.99

$

Usually ships in 3-6 days

0

6

Toro 98-9026-03

BRACKET-HINGE, LOWER LH

$

$

Not available

7

Toro 95-3989

MOUNT-SIDEPANEL

$

$

Not available

8

Toro 94-7910

GROMMET

$4.99

$

Usually ships in 3-6 days

0

9

Toro 95-4082-03

SUPPORT-HOOD, LH

$

$

Not available

10

Toro 46-8093

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0

11

Toro 99-5305

SUPPORT-HOOD

$

$

Not available

11:2

Toro 95-4258

COVER-BRACE

$

$

Not available

11:3

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 94-2308-03

BUMPER-FRAME

$

$

Not available

14

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

15

Toro 95-4081-03

SUPPORT-HOOD, RH

$

$

Not available

16

Toro 98-9027-03

BRACKET-HINGE, LOWER RH

$

$

Not available

17

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

18

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

19

Toro 99-5345

SUPPORT ASM

$

$

Not available

19:2

Toro 98-5014

DECAL-WARNING

$4.99

$

Usually ships in 3-6 days

0

20

Toro 92-8747

DECAL-ATTACH A-MATIC

$6.49

$

In Stock, only 1 left!

0

26

Toro 98-9015

LEVER-PROP, HOOD

$

$

Not available

27

Toro 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, only 3 left!

0

28

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0
