104-2800 - Toro Hydraulic Cooler Kit for Dingo TX Compact Utility Loader HOOD AND BAFFLE ASSEMBLY Parts Diagram

Hydraulic Cooler Kit for Dingo TX Compact Utility Loader

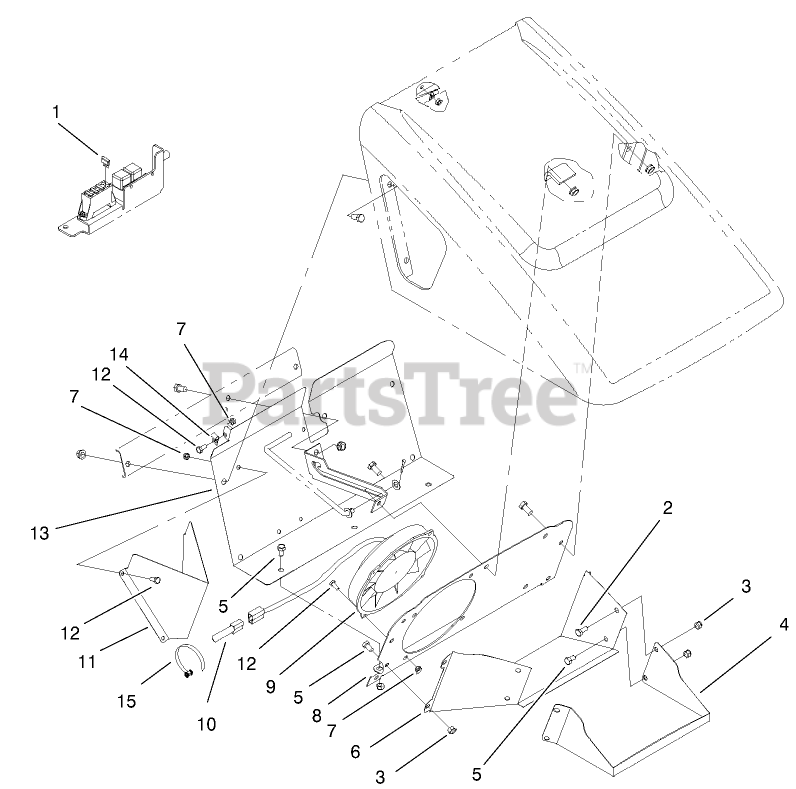

HOOD AND BAFFLE ASSEMBLY Parts Diagram

  • Title

1

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

2

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 104-2813-03

SHROUD-FAN, FRONT

$91.99

$

Usually ships in 3-6 days

0

5

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

6

Toro 104-2812-03

SHROUD-FAN

$

$

Not available

7

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 4 left!

0

8

Toro 104-2814-03

PLATE-BAFFLE, FAN

$

$

Not available

9

Toro 104-2809

FAN

$510.99

$

Usually ships in 3-6 days

0

10

Toro 104-2808

HARNESS-WIRE,FAN

$

$

Not available

11

Toro 104-2811-03

BAFFLE-FAN

$88.99

$

Usually ships in 3-6 days

0

12

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 104-2815-03

PANEL-RACK, FAN

$

$

Not available

14

Toro 2412-91

CLAMP

$3.99

$

In Stock, only 2 left!

0

15

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
