103M02-0073-F1 - Briggs & Stratton Vertical Engine Carburetor Group Parts Diagram

Vertical Engine

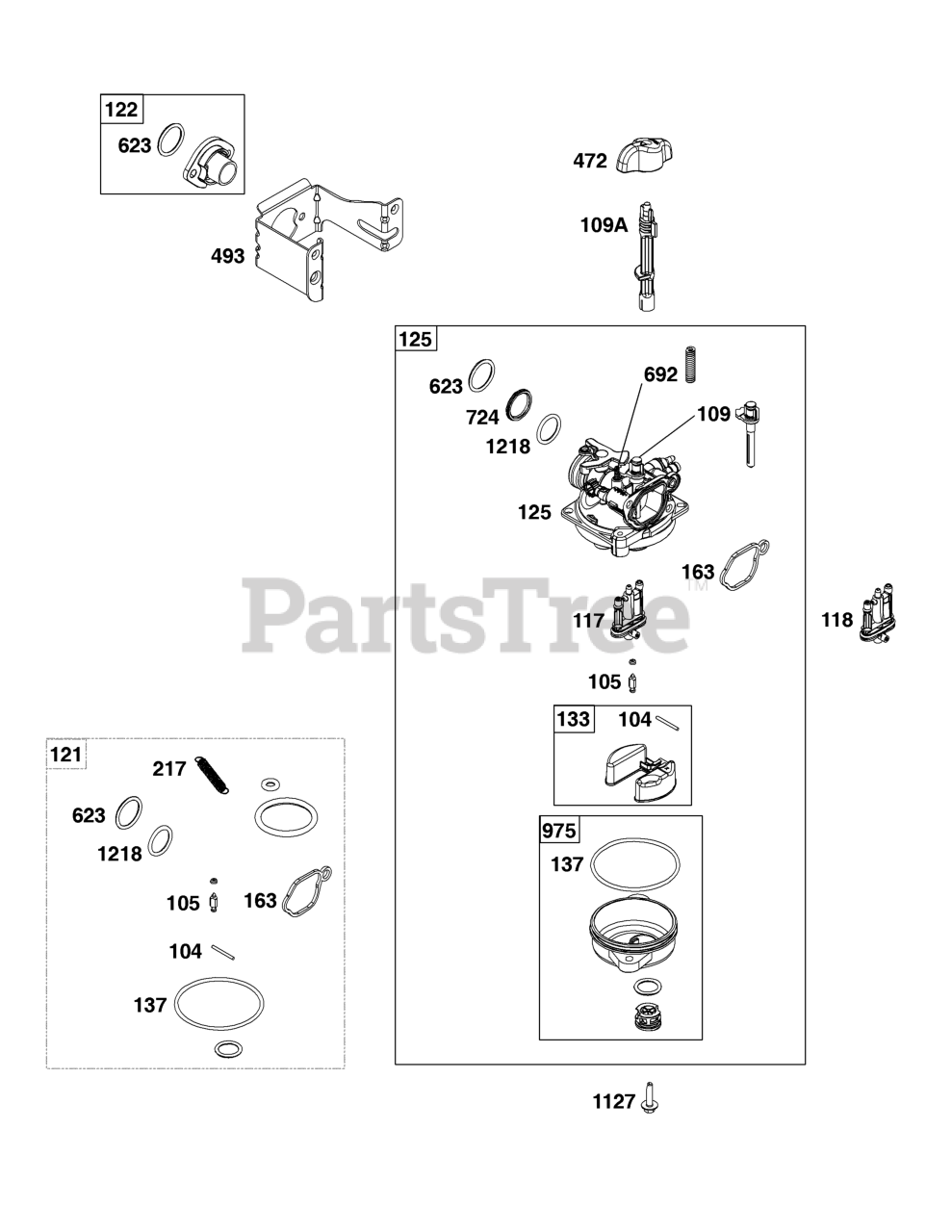

Carburetor Group Parts Diagram

  • Title

104

Briggs & Stratton 590558

Pin-Float Hinge

$4.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 594581

Valve-Float Needle

$7.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 597117

SHAFT, Choke

$20.99

$

In Stock, only 2 left!

0

109A

Briggs & Stratton 597116

SHAFT, Choke

$21.99

$

In Stock, only 3 left!

0

117

Briggs & Stratton 595922

Jet-Main

Note: (Standard)

$7.99

$

In Stock, Qty 8

0

118

Briggs & Stratton 595923

Jet-Main

Note: (High Altitude)

$16.99

$

Usually ships in 2-12 days

0

121

KIT, Carburetor Overhaul

Note: (Part information located in Service Parts and Tools Group.)

$

$

Not available

122

Briggs & Stratton 590549

Spacer-Carburetor

$10.99

$

In Stock, only 1 left!

0

125

Briggs & Stratton 596582

Carburetor

$69.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 591120

Float-Carburetor

$13.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 594633

Gasket-Float Bowl

$15.99

$

In Stock, only 2 left!

0

163

Briggs & Stratton 799580

Gasket-Air Cleaner

$5.99

$

In Stock, only 1 left!

0

472

Briggs & Stratton 597110

KNOB, Choke Shaft

$7.99

$

In Stock, only 3 left!

0

493

Briggs & Stratton 593330

Bracket-Mounting

$9.99

$

In Stock, only 1 left!

0

623

Briggs & Stratton 799581

Seal-O Ring

Note: (Carburetor Spacer)

$4.99

$

In Stock, only 1 left!

0

692

Briggs & Stratton 590931

Spring-Detent

$5.49

$

In Stock, Qty 11

0

724

Briggs & Stratton 697478

Retainer-Seal

$4.99

$

In Stock, Qty 20+

0

975

Briggs & Stratton 594632

Bowl-Float

$17.99

$

In Stock, only 3 left!

0

1127

Briggs & Stratton 590554

Screw

Note: (Float Bowl to Carburetor Body)

$3.99

$

Usually ships in 2-12 days

0

1218

Briggs & Stratton 270344S

Seal-O Ring

Note: (Carburetor)

$3.49

$

In Stock, Qty 20+

0
