10367 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) RECOIL STARTER ASSEMBLY NO. 590739 TECUMSEH MODEL NO. LV195EA-362005B Parts Diagram

Silver Series Walk-Behind Mower

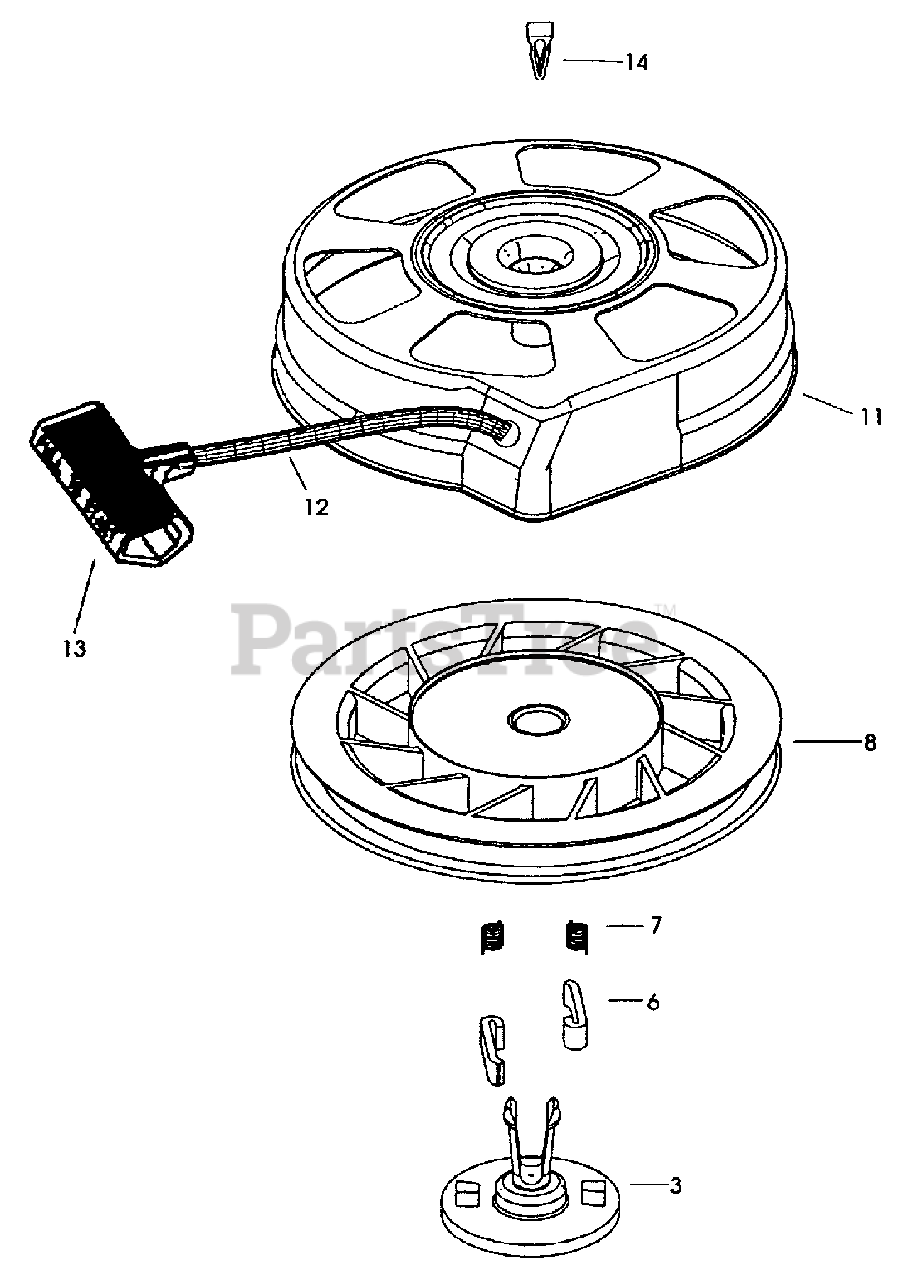

RECOIL STARTER ASSEMBLY NO. 590739 TECUMSEH MODEL NO. LV195EA-362005B Parts Diagram

  • Title

Lawn-Boy 590739

Starter-Rewind

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

3

Lawn-Boy 590740

Retainer

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

6

Lawn-Boy 590616

Dog-Starter

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

7

Lawn-Boy 590617

Spring-Dog

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

8

Lawn-Boy 590618A

Pulley and Rewind Spring ASM

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

11

Lawn-Boy 590638

Housing Assembly-Starter

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

12

Lawn-Boy 590535

Starter Rope ( 98IN X 9/64IN dia.)

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

13

Lawn-Boy 590701

Handle-Starter

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

14

Lawn-Boy 590760

Spring Clip

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable
