10367 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) GEAR CASE ASSEMBLY NO. 106-8328 Parts Diagram

Silver Series Walk-Behind Mower

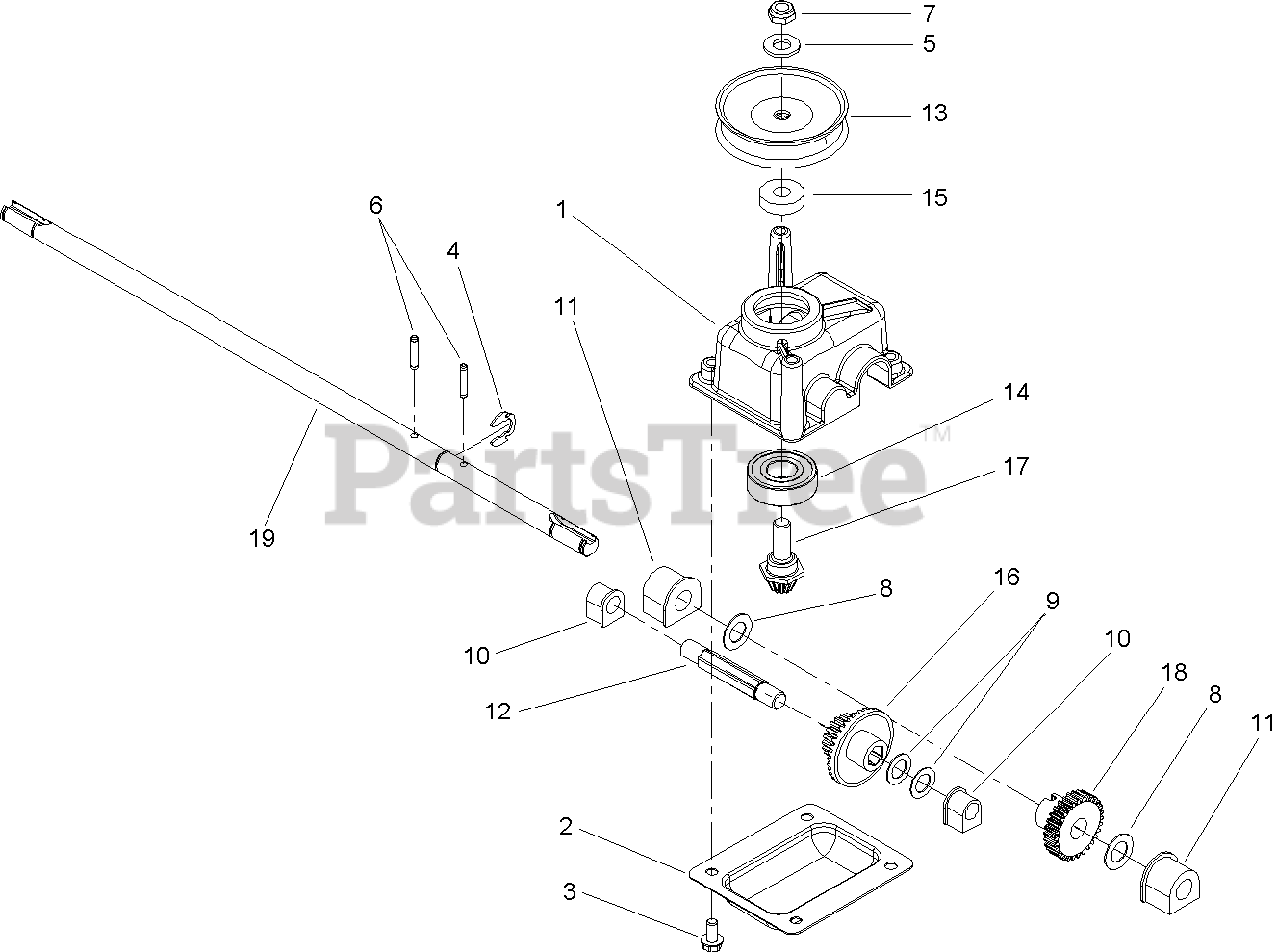

GEAR CASE ASSEMBLY NO. 106-8328 Parts Diagram

  • Title
1

Lawn-Boy 104-7619

CASE-GEAR

$45.99

$

In Stock, only 1 left!

0

2

Lawn-Boy 614668-03

COVER-CASE, GEAR

$9.49

$

Usually ships in 3-6 days

0

3

Lawn-Boy 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 32151-68

RING-RETAINING
(Superseded to 65-2720)

$1.49

$

In Stock, Qty 11

0

5

Lawn-Boy 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

6

Lawn-Boy 3285-19

PIN-GROOVE

$2.99

$

In Stock, Qty 7

0

7

Lawn-Boy 3296-5

NUT-LOCK, NI

$3.49

$

In Stock, Qty 8

0

8

$7.99

$

In Stock, Qty 7

0

9

Lawn-Boy 36-4791

WASHER-THRUST

$2.49

$

In Stock, Qty 20+

0

10

$6.99

$

In Stock, Qty 10

0

11

$8.49

$

In Stock, Qty 17

0

12

Lawn-Boy 614696

SHAFT-INTERMEDIATE

$108.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 614669

HALF-PULLEY

$23.99

$

In Stock, only 2 left!

0

14

Lawn-Boy 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 18

0

15

$1.49

$

In Stock, only 3 left!

0

16

Lawn-Boy 104-1005

GEAR-19T SPUR, 37T BEVEL

$60.99

$

In Stock, only 1 left!

0

17

Lawn-Boy 104-7667

GEAR-PINION, BEVEL

$18.99

$

In Stock, only 1 left!

0

18

$25.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 104-7670

SHAFT-OUTPUT

$139.99

$

Usually ships in 3-6 days

0
