10363 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 210000001 - 210999999) (2001) REAR AXLE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

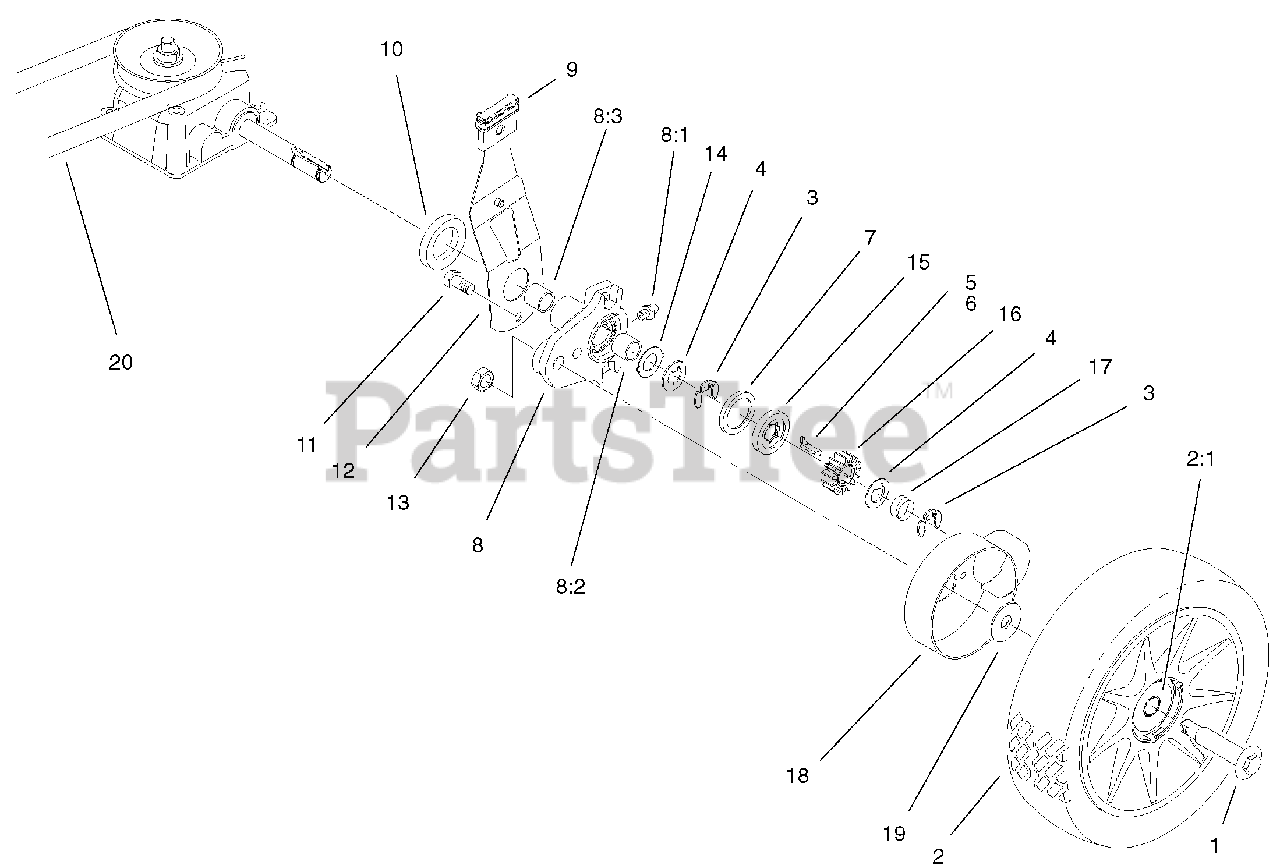

REAR AXLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 92-1057

Bolt-Shoulder

$3.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 92-1042

Wheel & Tire ASM

$55.99

$

In Stock, Qty 9

0

2:1

$2.99

$

In Stock, only 4 left!

0

3

Lawn-Boy 65-2720

Ring-Klip

$1.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 65-4740

Washer-Thrust, Keyed

$2.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 66-6050

Key-Rocking, LH
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 66-6040

Key-Rocking, RH
(Superseded to 139-6643)

Note: Not illustrated

$7.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 65-4710

Ring-Friction

$3.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 92-7746

Arm ASM-Rear Height Adjustment

$50.99

$

In Stock, only 2 left!

0

8:1

Lawn-Boy 302-56

Fitting-Zerk

$5.49

$

In Stock, only 1 left!

0

8:2

$6.49

$

In Stock, Qty 20+

0

8:3

$4.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 92-1008

Knob-Lever, Height Adjustment

$14.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 614447

Spacer-Axle Shaft

$3.49

$

In Stock, Qty 20+

0

11

$1.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 92-1004

Rear Spring Arm ASM

$

$

Not available

$2.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 65-4730

Washer-Arm, Pivot

$2.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 65-4760

Washer-Clutch

$1.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 65-4750

Gear-Pinion

$11.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 65-4720

Spring-Compression

$1.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 94-1609

Cover-Wheel

$10.99

$

In Stock, Qty 5

0

19

Lawn-Boy 614426

Washer-Stepped

$3.49

$

In Stock, Qty 20+

0

20

$20.99

$

In Stock, only 3 left!

0
