10362 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 220000001 - 220999999) (2002) RECOIL STARTER NO. 590739 Parts Diagram

Silver Series Walk-Behind Mower

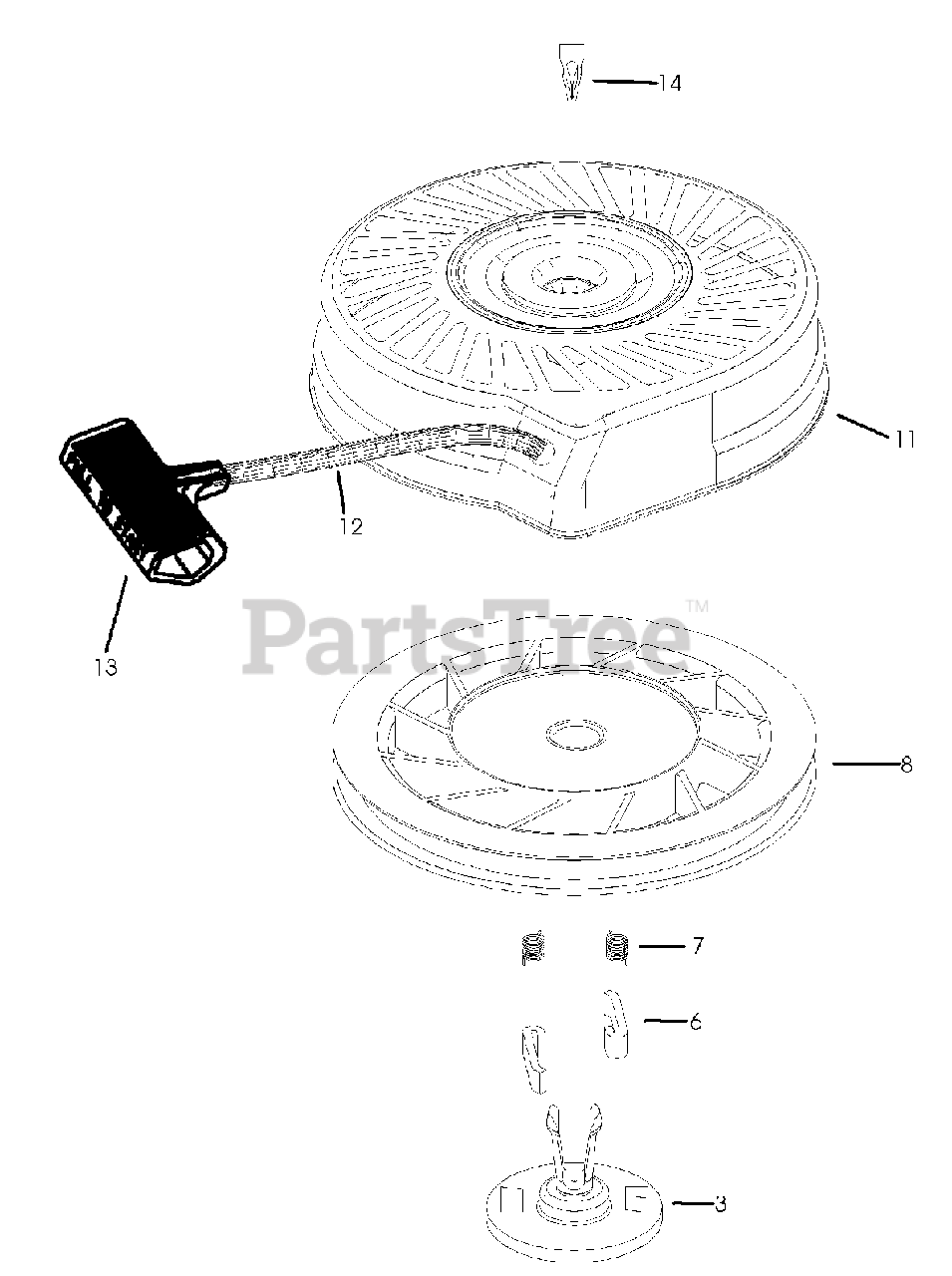

RECOIL STARTER NO. 590739 Parts Diagram

  • Title
3

Lawn-Boy 590740

Retainer

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

6

Lawn-Boy 590616

Dog-Starter

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

7

Lawn-Boy 590617

Dog Spring

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

8

Lawn-Boy 590618A

Pulley & Rewind Spring ASM

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

11

Lawn-Boy 590638

Housing Assemble-Starter

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

12

Lawn-Boy 590535

Rope Starter

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

13

Lawn-Boy 590701

Handle-Starter

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

14

Lawn-Boy 590760

Cup Washer

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable
