10362 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 220000001 - 220999999) (2002) HOUSING, HANDLE BRACKET AND WHEEL ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

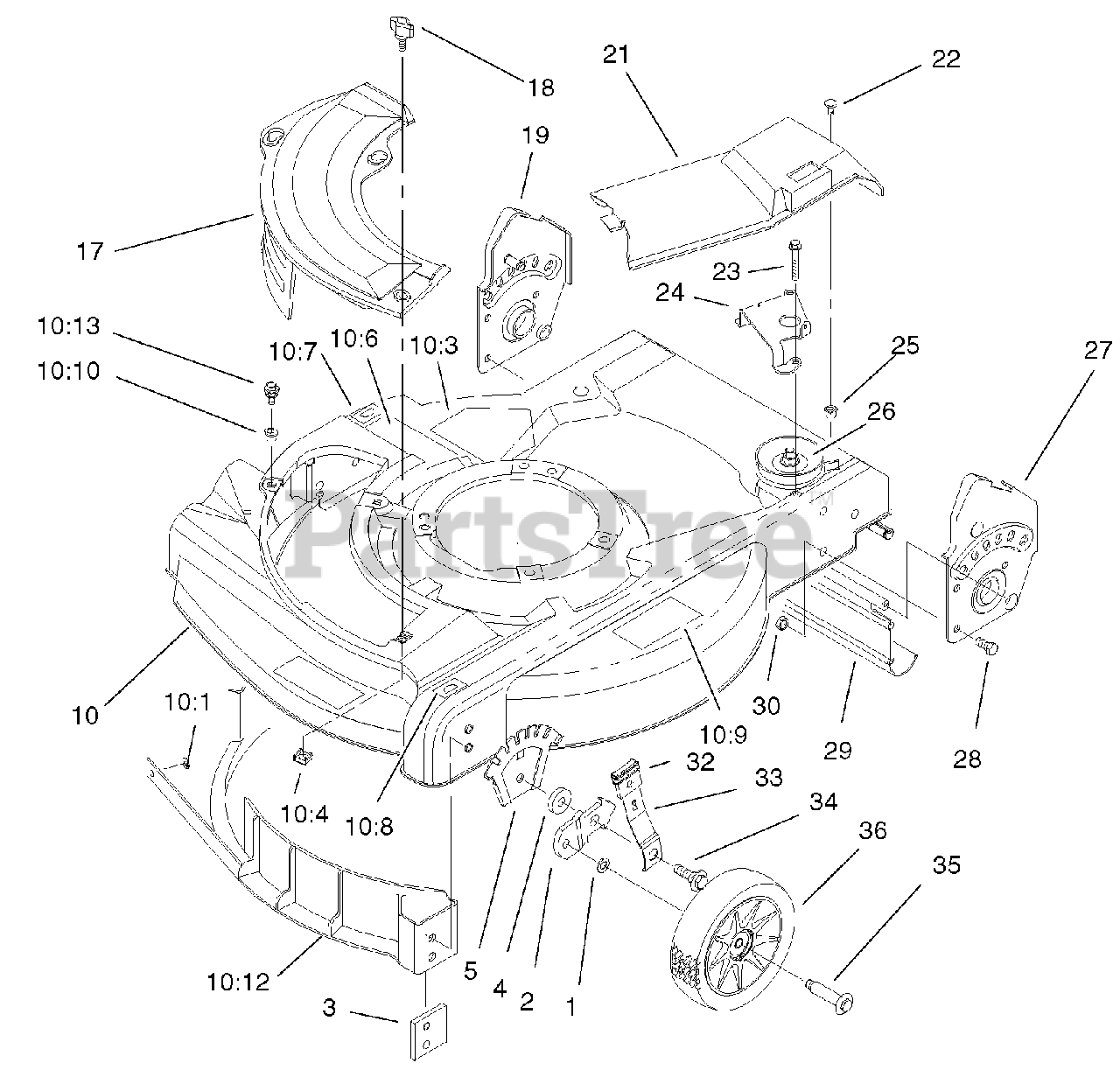

HOUSING, HANDLE BRACKET AND WHEEL ASSEMBLY Parts Diagram

  • Title
1

$2.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 95-7403-03

BRACKET-HEIGHT ADJUSTMENT, WHEEL

$

$

Not available

3

Lawn-Boy 92-7731

PLATE - BAFFLE

$10.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 92-4890

WASHER-WHEEL

$8.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 92-4881-03

PLATE - HEIGHT ADJUSTMENT

$29.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 98-4477

DECK ASM

$316.99

$

Usually ships in 3-6 days

0

10:1

Lawn-Boy 3269-26

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

10:3

Lawn-Boy 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

10:4

Lawn-Boy 613765

NUT-CAGE

$9.99

$

In Stock, Qty 7

0

10:6

Lawn-Boy 99-6018

DECAL - WARNING

$2.99

$

Usually ships in 3-6 days

0

10:7

Lawn-Boy 92-2914

DECAL - HOC, RH

$

$

Not available

10:8

Lawn-Boy 92-2915

DECAL - HOC, LH

$6.49

$

Usually ships in 3-6 days

0

10:9

Lawn-Boy 93-7250

DECAL-WARNING

$15.99

$

In Stock, only 2 left!

0

10:10

Lawn-Boy 94-1610

GROMMET - PLASTIC

$1.49

$

In Stock, Qty 20+

0

10:12

Lawn-Boy 92-7719

Insert-Housing

$

$

Currently unavailable

10:13

Lawn-Boy 614677

SCREW-SEMS

$4.49

$

In Stock, Qty 12

0

17

Lawn-Boy 92-8630

PLATE-MULCH

$

$

Not available

$5.49

$

In Stock, Qty 13

0

19

Lawn-Boy 92-7723

HANDLE BRACKET ASM-RH
(Superseded to 105-8602)

$45.99

$

In Stock, only 1 left!

0

21

Lawn-Boy 95-7068

COVER - DRIVE

$25.99

$

In Stock, only 1 left!

0

22

$6.99

$

In Stock, Qty 20+

0

23

Lawn-Boy 65-5221

SCREW-HWHTF

$2.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 92-7728-03

GUIDE - TRANSMISSION

$7.99

$

In Stock, only 1 left!

0

25

Lawn-Boy 605120

GROMMET

$4.49

$

In Stock, Qty 7

0

26

Lawn-Boy 104-7671

GEAR CASE ASM

$

$

Not available

27

Lawn-Boy 92-7724

HANDLE BRACKET ASM-LH
(Superseded to 105-8604)

$

$

Not available

28

Lawn-Boy 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 92-8647

SHIELD - TRAILING

$41.99

$

In Stock, only 1 left!

0

30

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Lawn-Boy 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT

$14.99

$

In Stock, only 2 left!

0

33

Lawn-Boy 614687

ARM-FRONT SPRING

$21.99

$

In Stock, only 3 left!

0

34

Lawn-Boy 614672

BOLT-SHOULDER

$2.99

$

In Stock, only 4 left!

0

35

Lawn-Boy 92-1099

BOLT-SHOULDER

$8.49

$

In Stock, Qty 20+

0

36

Lawn-Boy 684776

WHEEL & TIRE ASM

$37.99

$

In Stock, Qty 20+

0

Lawn-Boy 95-7052

PLATE-OPENING, CHUTE

Note: Not illustrated

$36.99

$

In Stock, only 3 left!

0
