10361 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 220000001 - 220999999) (2002) ENGINE ASSEMBLY-LEV120-361546B Parts Diagram

Silver Series Walk-Behind Mower

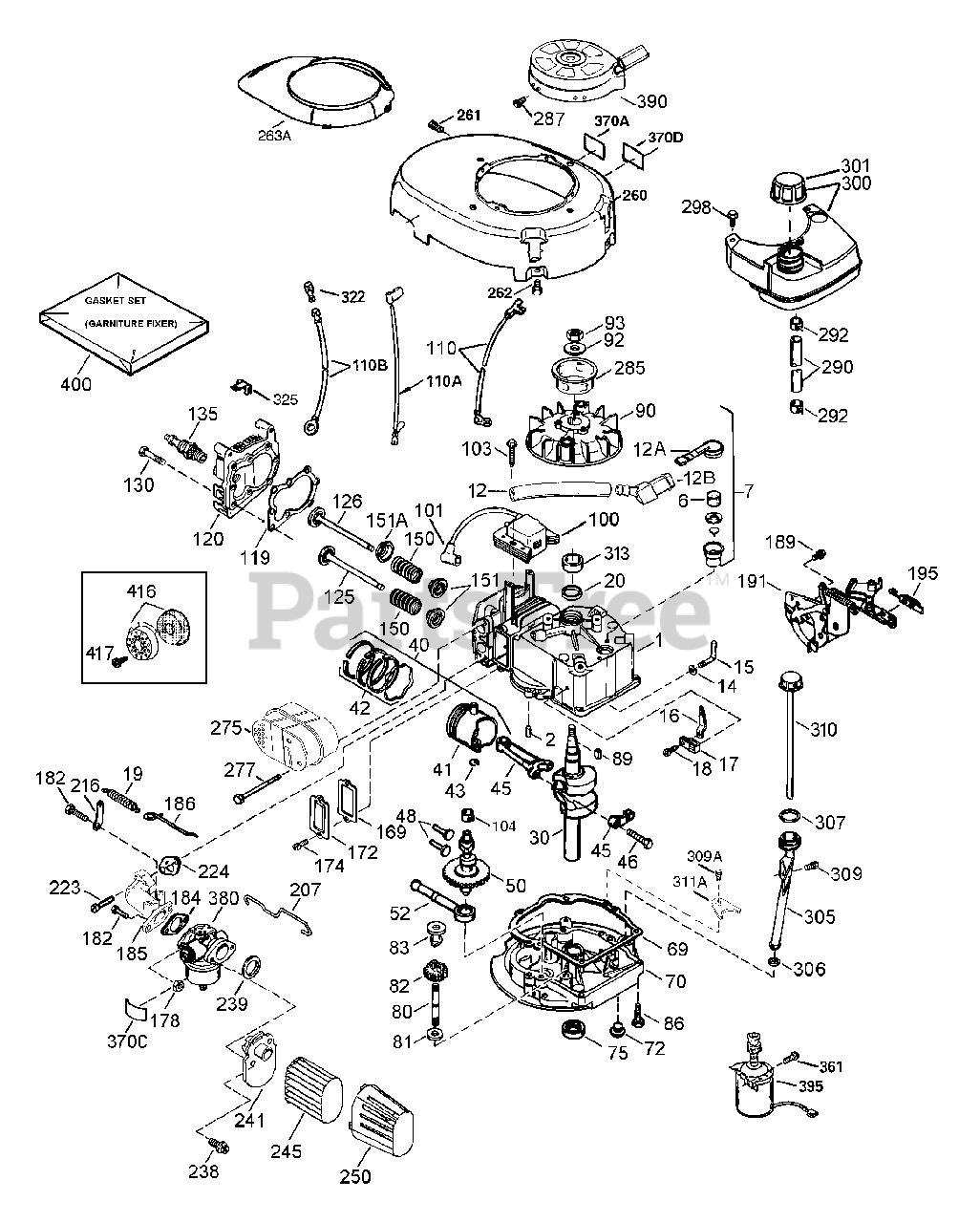

ENGINE ASSEMBLY-LEV120-361546B Parts Diagram

  • Title

313

Lawn-Boy 34080

Spacer

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

322

Lawn-Boy 35013

Connector Body

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

325

Lawn-Boy 35249

Wire Clip

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

361

Lawn-Boy 650831

Screw, 1/4-20 x 1/2"

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

370A

Lawn-Boy 36261

Lubrication Decal

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

370C

Lawn-Boy 37318

Primer Decal (3X)

Note: Obtain parts from Tecumseh

$

$

Not available

370D

Lawn-Boy 35977

Caution Decal

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

380

Lawn-Boy 640303

Carburetor (Incl. 184)

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

390

Lawn-Boy 590737

Rewind Starter (NOTE: This engine could have been built with 590694 starter.)

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

395

Lawn-Boy 35709

Electric Starter Motor (12 Volt)

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

400

Lawn-Boy 37613

Gasket Set (Incl. Items Marked PK in Notes)

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

416

Lawn-Boy 36085

Spark Arrestor Kit (Incl. 417)(Optional)

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

417

Lawn-Boy 650760

Screw, 8-32 x 3/8' (Optional)

Note: Obtain parts from Tecumseh

$

$

Currently unavailable
