10361 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 220000001 - 220999999) (2002) ELECTRIC STARTER ASSEMBLY NO. 35709 Parts Diagram

Silver Series Walk-Behind Mower

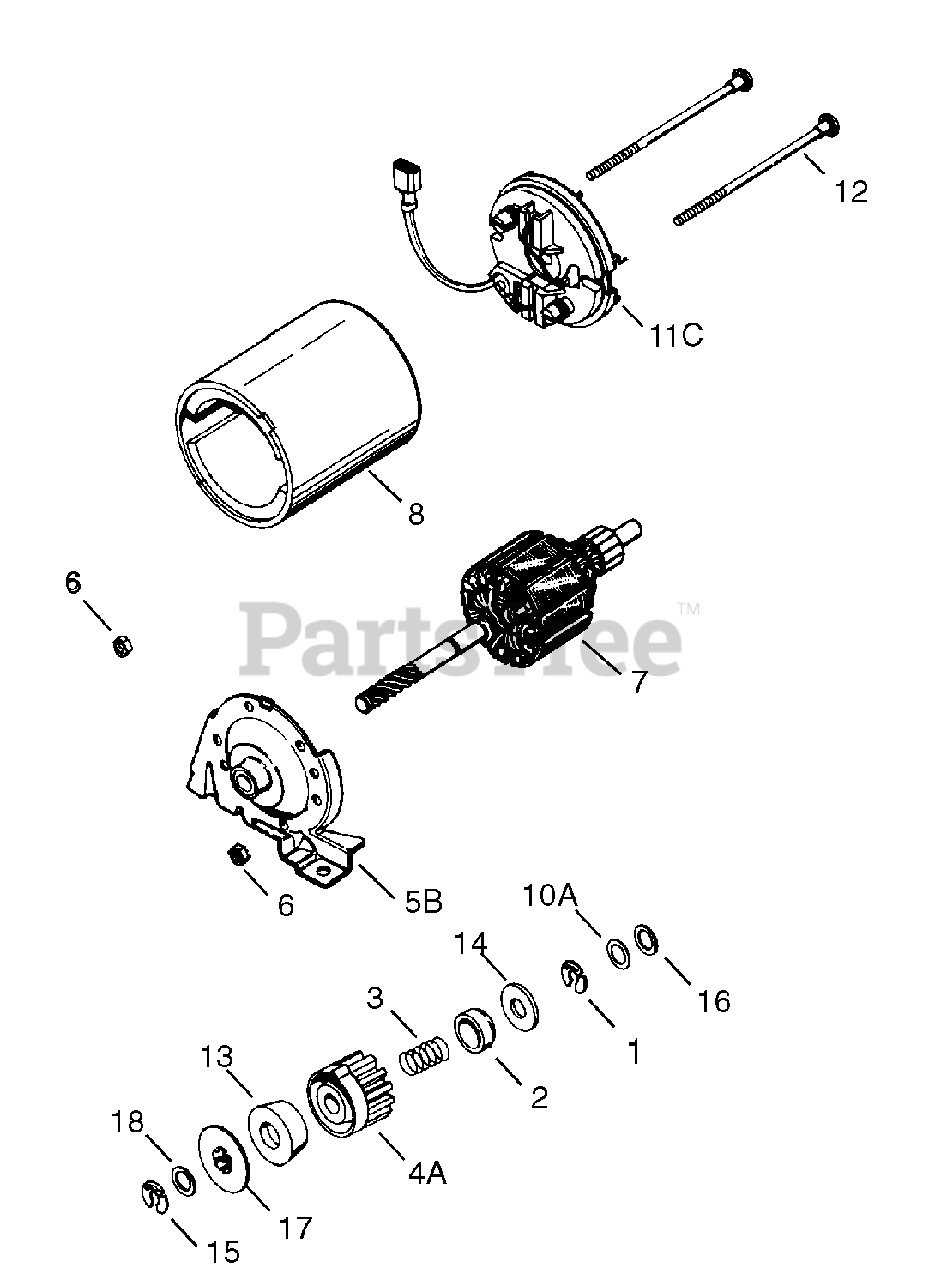

ELECTRIC STARTER ASSEMBLY NO. 35709 Parts Diagram

  • Title
1

Lawn-Boy 39955

Retainer Ring

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

2

Lawn-Boy 34950

Spring Retainer

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

3

Lawn-Boy 34954

Spring

Note: Obtain parts from Tecumseh

$

$

Not available

4A

Lawn-Boy 34949A

Gear

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

5B

Lawn-Boy 34953

Drive End Cap ASM

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

6

Lawn-Boy 33450

Lock Nut

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

7

Lawn-Boy 34944

Armature

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

8

Lawn-Boy 34945

Housing ASM

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

10A

Lawn-Boy 590500

Thrust Washer

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

11C

Lawn-Boy 35714

Commutator End Cap ASM (Incl. Brushes)

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

12

Lawn-Boy 34947

Bolt

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

13

Lawn-Boy 34946

Pinion Driver

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

14

Lawn-Boy 590760

Cup Washer

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

15

Lawn-Boy 34952

Retainer Ring

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

16

Lawn-Boy 34948

Washer

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

17

Lawn-Boy 34953

Drive Nut

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

18

Lawn-Boy 590608

Washer

Note: Obtain parts from Tecumseh

$

$

Currently unavailable
