10361 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 220000001 - 220999999) (2002) CARBURETOR ASSEMBLY NO. 640303 Parts Diagram

Silver Series Walk-Behind Mower

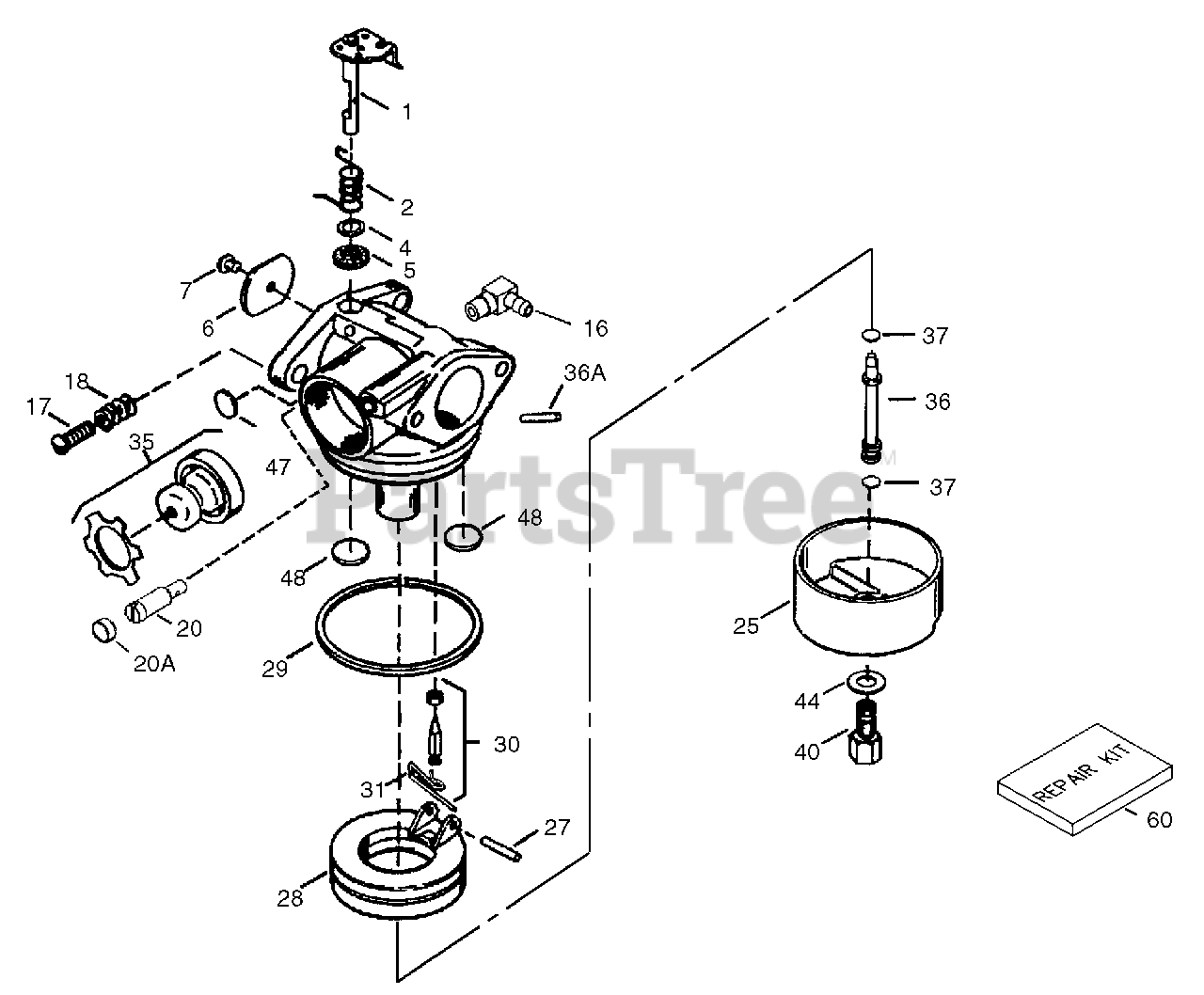

CARBURETOR ASSEMBLY NO. 640303 Parts Diagram

  • Title
1

Lawn-Boy 631615

Throttle Shaft & Lever Assembly

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

2

Lawn-Boy 631767

Throttle Return Spring

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

4

Lawn-Boy 631184

Dust Seal Washer

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

5

Lawn-Boy 631183

Dust Seal

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

6

Lawn-Boy 640070

Throttle Shutter

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

7

Lawn-Boy 650506

Shutter Screw

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

16

Lawn-Boy 631807

Fuel Fitting

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

17

Lawn-Boy 651025

Throttle Crack Screw/Idle Speed Screw

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

18

Lawn-Boy 630766

Tension Spring

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

20

Lawn-Boy 640018

Idle Restrictor Screw

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

20A

Lawn-Boy 640200

Idle Restrictor Screw Cap

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

25

Lawn-Boy 632808

Float Bowl

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

27

Lawn-Boy 631024

Float Shaft

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

28

Lawn-Boy 632802

Float (Plastic)

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

29

Lawn-Boy 631028

Float Bowl O-Ring

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

30

Lawn-Boy 632807

Inlet Needle, Seat, & Clip (Incl. 31)

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

31

Lawn-Boy 631022

Spring Clip

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

35

Lawn-Boy 640259

Primer Bulb (Red) /Retainer Ring

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

36

Lawn-Boy 640019

Main Nozzle Tube

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

36A

Lawn-Boy 632766

Bowl Vent Tube Extension

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

37

Lawn-Boy 632547

O-Ring, Main Nozzle Tube

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

40

Lawn-Boy 640087

High Speed Bowl Nut

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

44

Lawn-Boy 27110A

Bowl Nut Washer

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

47

Lawn-Boy 630748

Welch Plug, Idle Mixture Well

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

48

Lawn-Boy 631027

Welch Plug, Atmospheric Vent

Note: Obtain parts from Tecumseh

$

$

Currently unavailable

60

Lawn-Boy 632809

Repair kit

Note: Obtain parts from Tecumseh

$

$

Currently unavailable
