10360 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 210000001 - 210999999) (2001) HANDLE AND CONTROLS ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

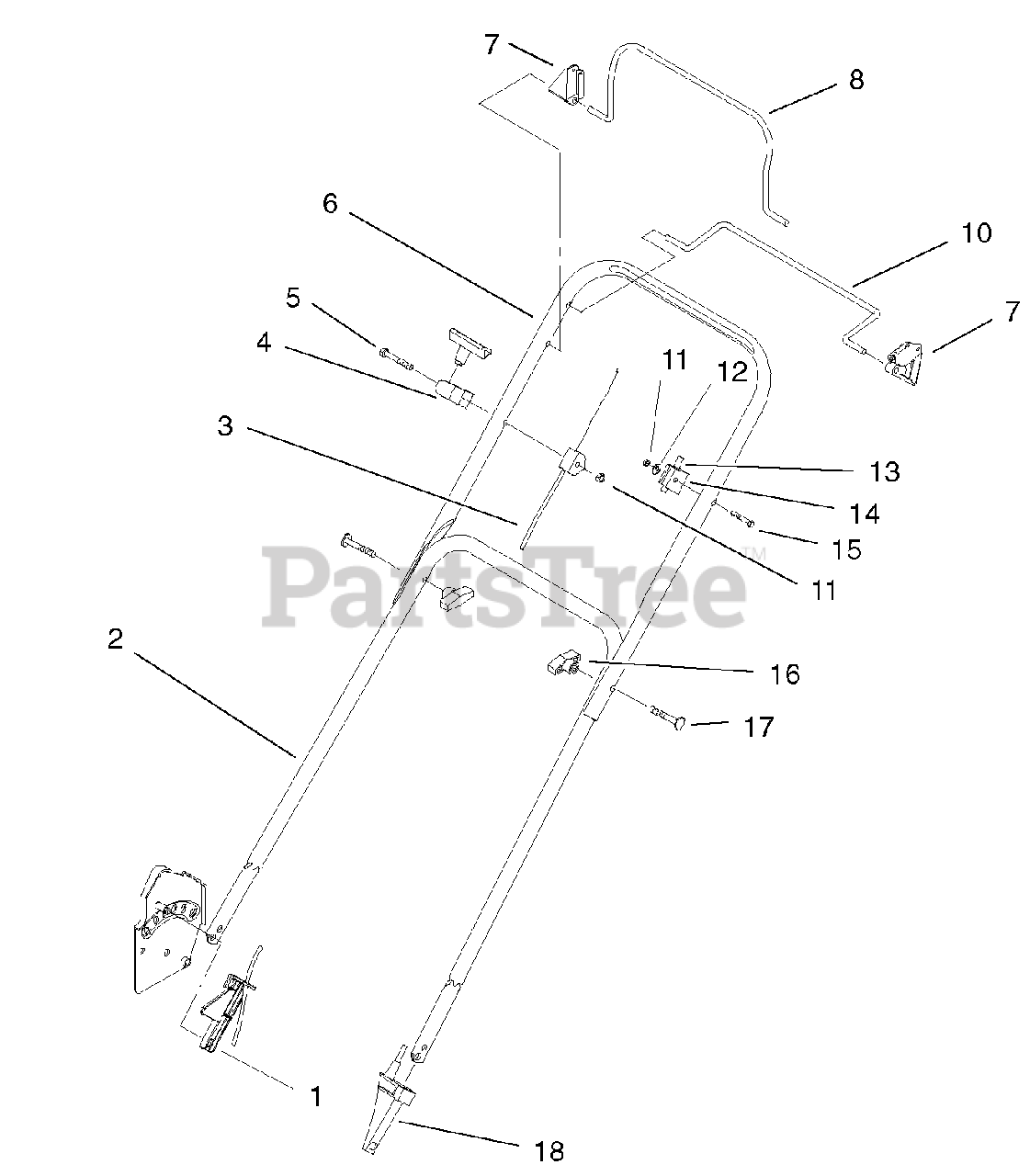

HANDLE AND CONTROLS ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 104-1013

Guard-Cable

$

$

Not available

2

Lawn-Boy 614643-05

Handle-Lower

$

$

Not available

3

Lawn-Boy 100-5989

Brake Cable ASM

$34.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 93-7383

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, only 4 left!

0

5

Lawn-Boy 321-50

Screw-HH

$1.99

$

In Stock, Qty 8

0

6

Lawn-Boy 100-2888-05

Handle-Upper

$

$

Not available

7

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$5.49

$

In Stock, only 1 left!

0

8

Lawn-Boy 93-4184-03

Bail-Brake

$41.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 92-1001-03

Bail-Control

$58.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 3296-73

Nut-Lock, NI

$5.49

$

In Stock, only 2 left!

0

12

Lawn-Boy 3256-1

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 100-5982

Cable-Ground Speed

$40.99

$

In Stock, Qty 7

0

14

Lawn-Boy 92-7729

Anchor-Upper, Cable

$4.99

$

In Stock, only 4 left!

0

15

Lawn-Boy 92-2266

Screw-Handle

$6.49

$

Usually ships in 3-6 days

0

16

Lawn-Boy 98-7134

Knob-Handle

$2.99

$

In Stock, Qty 15

0

17

$2.49

$

In Stock, Qty 13

0

18

Lawn-Boy 93-7380

Anchor-Cable

$14.99

$

In Stock, only 1 left!

0
