10360 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 210000001 - 210999999) (2001) ENGINE-LEV115-350181E Parts Diagram

Silver Series Walk-Behind Mower

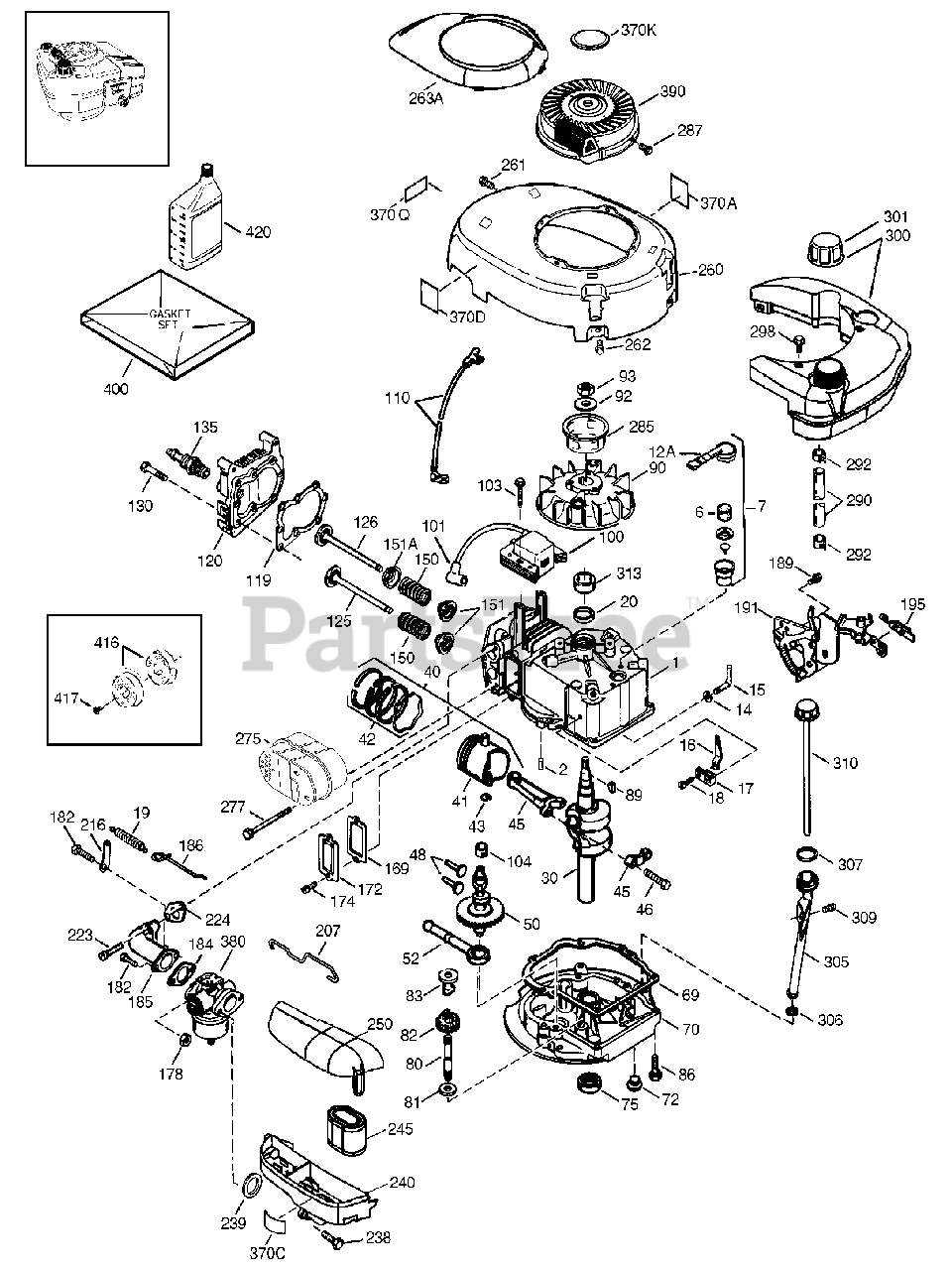

ENGINE-LEV115-350181E Parts Diagram

  • Title

1

Lawn-Boy 37266

Cylinder (Incl. 2,20 & 150)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

2

Lawn-Boy 26727

Dowel Pin

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

6

Lawn-Boy 33734

Breather Element

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

7

Lawn-Boy 36557

Breather Body ASM(Incl. 6 & 12A)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

12A

Lawn-Boy 36558

Breather Cover & Tube

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

14

Lawn-Boy 28277

Washer

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

15

Lawn-Boy 30589

Governor Rod(Incl. 14)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

16

Lawn-Boy 34839A

Governor Lever

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

17

Lawn-Boy 31335

Governor Lever Clamp

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

18

Lawn-Boy 651018

Screw, Torx T-15

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

19

Lawn-Boy 36281

Extension Spring
(Superseded to 700777)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

20

Lawn-Boy 32600

Oil Seal

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

30

Lawn-Boy 37616

Crankshaft
(Superseded to 700894)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

40

Lawn-Boy 40004

Piston, Pin & Ring Set(Std.)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

40

Lawn-Boy 40005

Piston, Pin & Ring Set(.010" OS)
(Superseded to 92-3755)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

41

Lawn-Boy 36070

Piston & Pin ASM(Std.)(Incl. 43)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

41

Lawn-Boy 36071

Piston & Pin ASM(.010" OS)(Incl. 43)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

42

Lawn-Boy 40006

Ring Set (Std.)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

42

Lawn-Boy 40007

Ring Set (.010" OS)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

43

Lawn-Boy 20381

Piston Pin RetainingRing

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

45

Lawn-Boy 36777

Connecting Rod ASM(Incl. 46)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

46

Lawn-Boy 32610A

Connecting Rod Bolt

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

48

Lawn-Boy 27241

Valve Lifter

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

50

Lawn-Boy 37460

Camshaft Exhaust

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

52

Lawn-Boy 29914

Oil Pump ASM

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

69

Lawn-Boy 37130

Mounting FlangeGasket

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

70

Lawn-Boy 34311E

Mounting Flange(Incl. 72 thru 83, 306)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

72

Lawn-Boy 36083

Oil Drain Plug

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

75

Lawn-Boy 27897

Oil Seal

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

80

Lawn-Boy 30574A

Governor Shaft

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

81

Lawn-Boy 30590A

Washer

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

82

Lawn-Boy 30591

Governor Gear ASM(Incl. 81)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

83

Lawn-Boy 30588A

Governor Spool

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

86

Lawn-Boy 650488

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

89

Lawn-Boy 611004

Flywheel Key

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

90

Lawn-Boy 611112

Flywheel
(Superseded to 611113)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

92

Lawn-Boy 650815

Belleville Washer

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

93

Lawn-Boy 650816

Flywheel Nut

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

100

Lawn-Boy 34443C

Solid State Ignition

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

101

Lawn-Boy 610118

Spark Plug Cover

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

103

Lawn-Boy 651007

Screw, Torx T-15

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

104

Lawn-Boy 37480

Cam Bushing

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

110

Lawn-Boy 37047

Ground Wire

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

119

Lawn-Boy 36787

Cylinder Head Gasket

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

120

Lawn-Boy 36825

Cylinder Head

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

125

Lawn-Boy 37288

Exhaust Valve (Std.)(Incl. 151)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

126

Lawn-Boy 37289

Intake Valve (Std.)(Incl. 151)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

130

Lawn-Boy 6021A

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

135

Lawn-Boy 35395

Resistor Spark Plug(RJ19LM)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

150

Lawn-Boy 31672

Valve Spring

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

151

Lawn-Boy 31673

Valve Spring Cap
(Superseded to 742357)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

151A

Lawn-Boy 40017

Intake Valve Seal

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

169

Lawn-Boy 36783

Valve Cover Gasket

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

172

Lawn-Boy 36784

Valve Cover

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

174

Lawn-Boy 30200

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

178

Lawn-Boy 29752

Nut & Lock Washer

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

182

Lawn-Boy 6201

Nut & Lock Washer
(Superseded to 111-1250)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

184

Lawn-Boy 26756

Carburetor To IntakePipe Gasket

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

185

Lawn-Boy 36785

Intake Pipe

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

186

Lawn-Boy 32653

Governor Link

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

189

Lawn-Boy 650839

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

191

Lawn-Boy 36559A

S.E. Brake Bracket(Incl. 195)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

195

Lawn-Boy 610973

Terminal

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

207

Lawn-Boy 34336

Throttle Link

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

216

Lawn-Boy 33086

R.P.M. Adjusting Lever

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

223

Lawn-Boy 650451

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

224

Lawn-Boy 36786

Intake Pipe Gasket

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

238

Lawn-Boy 650806

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

239

Lawn-Boy 34338

Air Cleaner Gasket

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

240

Lawn-Boy 36743

Air Cleaner Body
(Superseded to 704866)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

245

Lawn-Boy 36745

Air Cleaner Filter
(Superseded to 700815)

Note: Obtain parts from local Tecumseh dealer

$5.99

$

Usually ships in 3-6 days

0

250

Lawn-Boy 36744

Air Cleaner Cover
(Superseded to 704867)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

260

Lawn-Boy 36800

Blower Housing

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

261

Lawn-Boy 30200

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

262

Lawn-Boy 650831

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

263A

Lawn-Boy 36758

Starter Grill

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

275

Lawn-Boy 37462

Muffler

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

277

Lawn-Boy 650988

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

285

Lawn-Boy 35000A

Starter Cup

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

287

Lawn-Boy 650926

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

290

Lawn-Boy 34357

Fuel Line

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

292

Lawn-Boy 26460

Fuel Line Clamp

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

298

Lawn-Boy 28763

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

300

Lawn-Boy 36757

Fuel Tank(Incl. 292 & 301)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

301

Lawn-Boy 36246

Fuel Cap

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

305

Lawn-Boy 35577

Oil Fill Tube
(Superseded to 742451)

Note: Obtain parts from local Tecumseh dealer

$280.99

$

Usually ships in 3-6 days

0

306

Lawn-Boy 36996

"O"-Ring

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

307

Lawn-Boy 35499

"O"-Ring

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

309

Lawn-Boy 650562

Screw

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

310

Lawn-Boy 36801

Dipstick
(Superseded to 701191)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

313

Lawn-Boy 34080

Spacer

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

370A

Lawn-Boy 36261

Lubrication Decal

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

370C

Lawn-Boy 37318

Primer Decal (3X)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

370D

Lawn-Boy 35977

Caution Decal

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

370K

Lawn-Boy 36695

Starter Decal
(Superseded to 704857)

Note: Obtain parts from local Tecumseh dealer

$

$

Not available

370Q

Lawn-Boy 37548

Emissions Decal

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

380

Lawn-Boy 640273

Carburetor(Incl. 184)

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

390

Lawn-Boy 590737

Rewind Starter

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

400

Lawn-Boy 36792B

Gasket Set

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable

416

Lawn-Boy 36085

Spark Arrestor Kit

Note: Obtain parts from local Tecumseh dealer

$

$

Currently unavailable
