10360 C - Lawn-Boy Silver Series Walk-Behind Mower (SN: 220000001 - 220999999) (2002) GEAR CASE ASSEMBLY NO. 104-7671 Parts Diagram

Silver Series Walk-Behind Mower

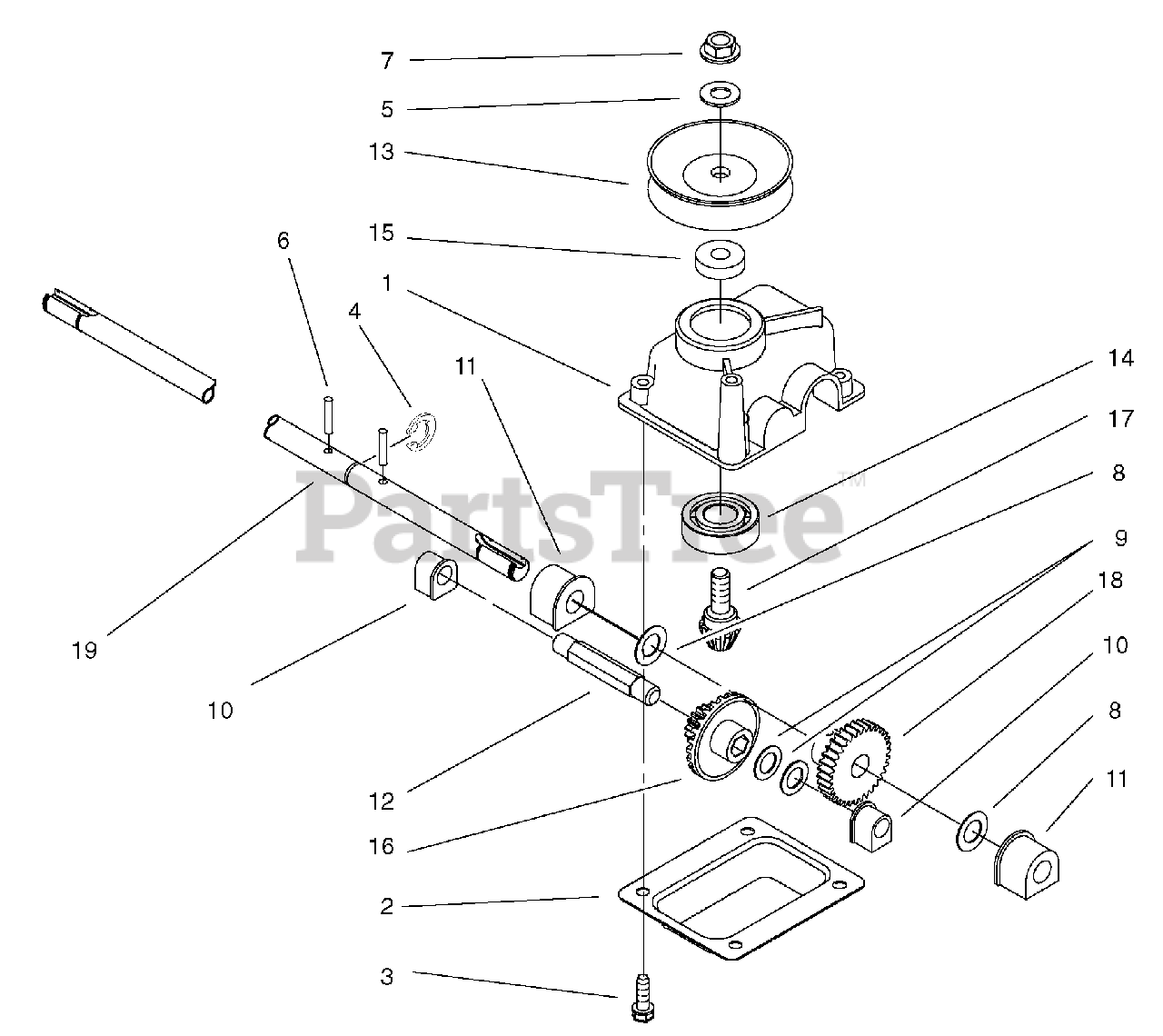

GEAR CASE ASSEMBLY NO. 104-7671 Parts Diagram

  • Title
1

Lawn-Boy 104-7619

Case-Gear

$45.99

$

In Stock, only 3 left!

0

2

Lawn-Boy 614668-03

Cover-Case, Gear

$9.49

$

Usually ships in 3-6 days

0

3

Lawn-Boy 32144-4

Screw-HWH

$1.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 32151-68

Ring-Retaining
(Superseded to 65-2720)

$1.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 3256-24

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 3285-19

Pin-Groove

$2.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 3296-5

Nut-Lock, NI

$3.49

$

In Stock, Qty 20+

0

8

$7.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 36-4791

Washer-Thrust

$2.49

$

In Stock, Qty 20+

0

10

$6.99

$

In Stock, Qty 10

0

11

Lawn-Boy 60-8850

Bushing-Output

$8.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 614696

Shaft-Intermediate

$108.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 614669

Half-Pulley

$23.99

$

In Stock, only 2 left!

0

14

Lawn-Boy 100-1048

Bearing-Ball
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

15

$0.99

$

In Stock, Qty 13

0

16

Lawn-Boy 104-7668

Gear-15t Spur, 37t Bevel

$34.99

$

In Stock, Qty 7

0

17

Lawn-Boy 104-7667

Gear-Pinion, Bevel

$18.99

$

In Stock, only 3 left!

0

18

$54.99

$

In Stock, Qty 5

0

19

Lawn-Boy 104-7670

Shaft-Output

$139.99

$

Usually ships in 3-6 days

0
