1036 Sprint (1690534) - AGCO Sprint 36" Rear-Engine Riding Mower, 10hp P.T.O. Group - Earlier Models Parts Diagram

Sprint 36" Rear-Engine Riding Mower, 10hp

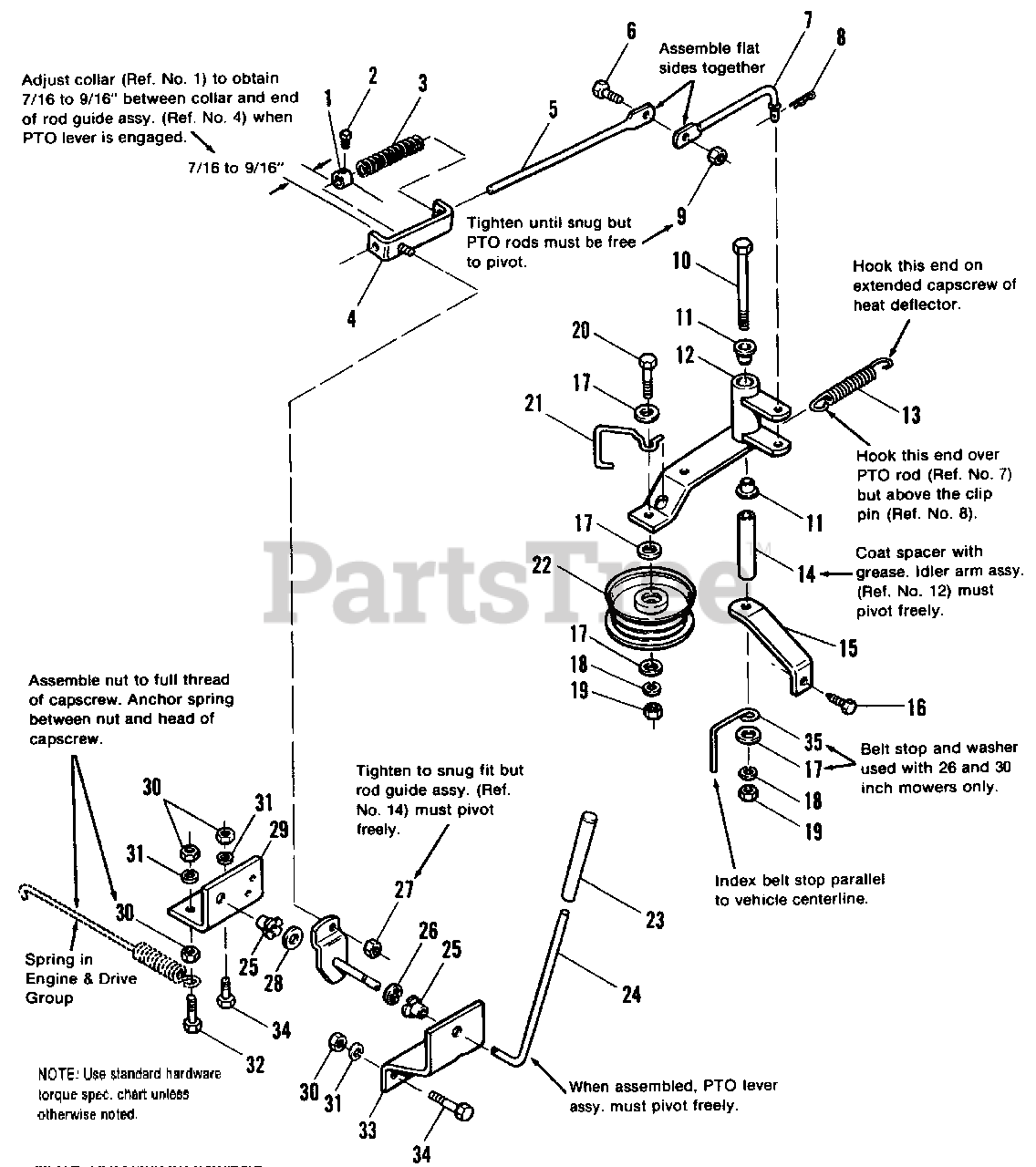

P.T.O. Group - Earlier Models Parts Diagram

  • Title

1

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

2

Simplicity 2828804

SETSCREW, 1/4-20 x 3/8

$

$

Not available

3

Simplicity 2163103SM

SPRING

$8.49

$

Usually ships in 2-12 days

0

4

Simplicity 2158406

ROD GUIDE ASSY.

$

$

Not available

5

Simplicity 1667288

ROD, P.T.O. Front

$

$

Not available

6

Simplicity 2821958

CAPSCREW, Hex, 1/4-20 x 1/2

$

$

Not available

7

Simplicity 1667289

ROD, P.T.O., Rear

$

$

Not available

8

Simplicity 2106787

CLIP, Hairpin

$

$

Not available

9

Simplicity 2823358

LOCKNUT, Hex, 1/4-20 x 1/2

$

$

Not available

10

Simplicity 2822648

CAPSCREW, Hex, 3/8-16 x 4

$

$

Not available

11

Simplicity 1663114SM

BUSHING

$4.49

$

In Stock, only 3 left!

0

12

Simplicity 1665548

P.T.O. IDLER ARM ASSY.

$

$

Not available

13

Simplicity 1706553SM

SPRING, Return

$9.99

$

Usually ships in 2-12 days

0

14

Simplicity 1665547

SPACER

$

$

Not available

15

Simplicity 1665582

SUPPORT, P.T.O.

$

$

Not available

16

Simplicity 2824856

SCREW, Taptite, 5/16-18 x 1/2

$

$

Not available

17

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

19

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

20

Simplicity 2821971

CAPSCREW, 3/8-16 x 1-1/2

$

$

Not available

21

Simplicity 1667024SM

STOP, Belt

$

$

Not available

22

Simplicity 1657712SM

PULLEY, Idler

$

$

Not available

23

Simplicity 2176933SM

GRIP

$3.49

$

In Stock, only 1 left!

0

24

Simplicity 1666450

P.T.O. LEVER ASSY.

$

$

Not available

25

Simplicity 1668185SM

BUSHING

$5.49

$

In Stock, only 1 left!

0

26

Simplicity 2158399SM

RING, Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 9

0

27

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

28

Simplicity 2816960

WASHER, Plain, 17/32

$

$

Not available

29

Simplicity 1666453

SUPPORT, Inner

$

$

Not available

30

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

31

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

32

Simplicity 2821221

CAPSCREW, Hex, 5/16-18 x 1-1/2

$

$

Not available

33

Simplicity 1666452

SUPPORT, Outer

$

$

Not available

34

Simplicity 2825205

CAPSCREW, Hex, 5/16-18 x 5/8

$

$

Not available

35

Simplicity 2106545SM

STOP, belt (5 & 8 HP Only)

$5.99

$

Usually ships in 2-12 days

0
