10359 C - Lawn-Boy Silver Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) GEAR CASE AND WHEEL ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

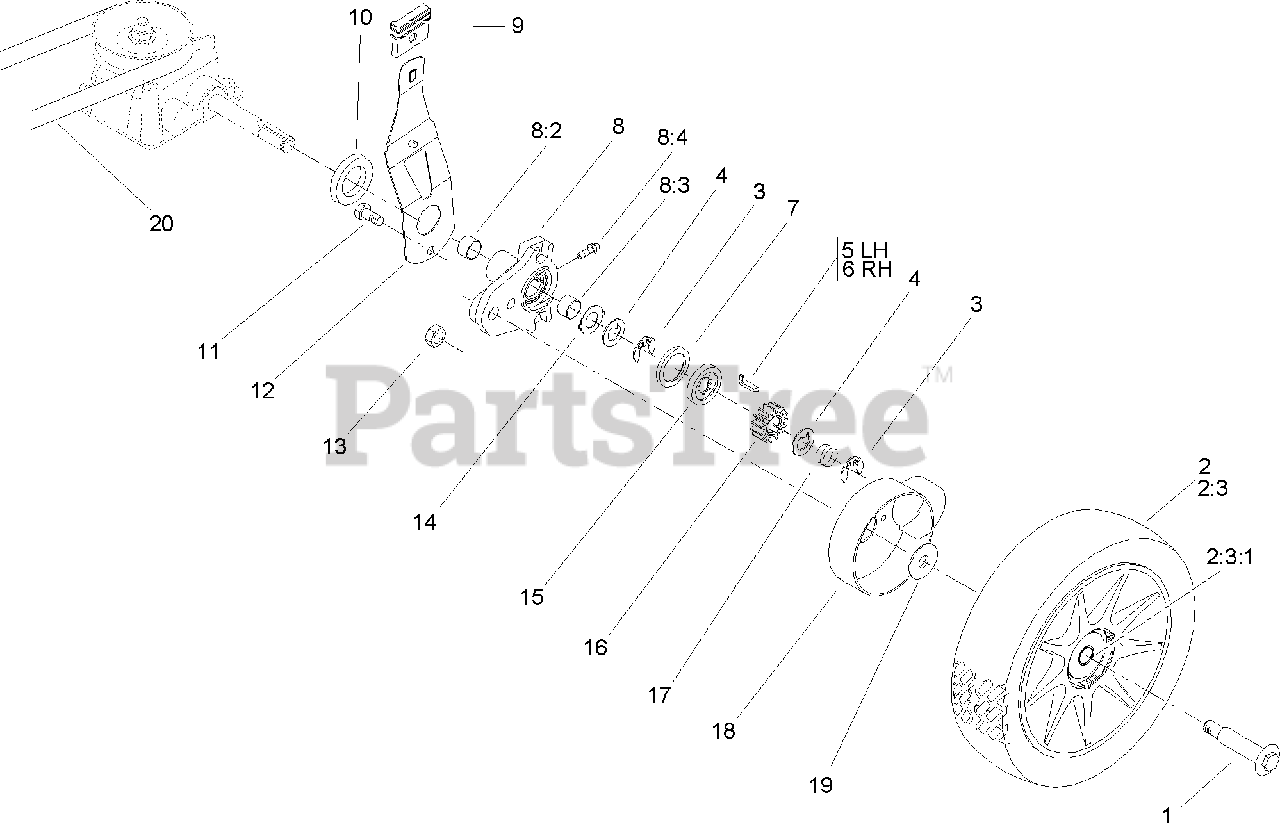

GEAR CASE AND WHEEL ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 9

0

2

Lawn-Boy 92-1042

WHEEL AND TIRE ASM

$55.99

$

In Stock, only 1 left!

0

2:3

Wheel ASM

Note: Not serviced separately

$

$

Not available

2:3:1

$2.99

$

In Stock, Qty 8

0

3

Lawn-Boy 65-2720

KLIPRING-LOCKING

$1.49

$

In Stock, Qty 6

0

4

Lawn-Boy 65-4740

WASHER-THRUST, KEYED

$2.49

$

In Stock, only 2 left!

0

5

Lawn-Boy 66-6050

KEY-ROCKING, LH
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 8

0

6

Lawn-Boy 66-6040

KEY-ROCKING, RH
(Superseded to 139-6643)

Note: Not illustrated

$7.49

$

In Stock, Qty 12

0

7

Lawn-Boy 65-4710

RING-FRICTION

$3.49

$

In Stock, Qty 5

0

8

Lawn-Boy 92-7746

REAR HEIGHT ADJUSTMENT ARM ASM

$50.99

$

In Stock, only 2 left!

0

8:2

$4.99

$

In Stock, Qty 6

0

8:3

$6.49

$

In Stock, only 4 left!

0

8:4

Lawn-Boy 302-56

FITTING-GREASE

$5.49

$

In Stock, only 1 left!

0

9

Lawn-Boy 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT

$14.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 614447

SPACER-AXLE SHAFT

$3.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 92-1004

REAR SPRING ARM ASM

$

$

Not available

$2.99

$

In Stock, Qty 8

0

14

Lawn-Boy 65-4730

WASHER-ARM, PIVOT

$2.49

$

In Stock, only 3 left!

0

15

Lawn-Boy 65-4760

WASHER-CLUTCH

$1.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 65-4750

GEAR-PINION

$11.99

$

In Stock, Qty 18

0

17

Lawn-Boy 65-4720

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 94-1609

COVER-WHEEL

$10.99

$

In Stock, Qty 5

0

19

Lawn-Boy 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0

20

$20.99

$

In Stock, only 1 left!

0
