10359 C - Lawn-Boy Silver Series Walk-Behind Mower (SN: 230000001 - 230999999) (2003) ENGINE ASSEMBLY TECUMSEH MODEL NO. LEV120-362005A Parts Diagram

Silver Series Walk-Behind Mower

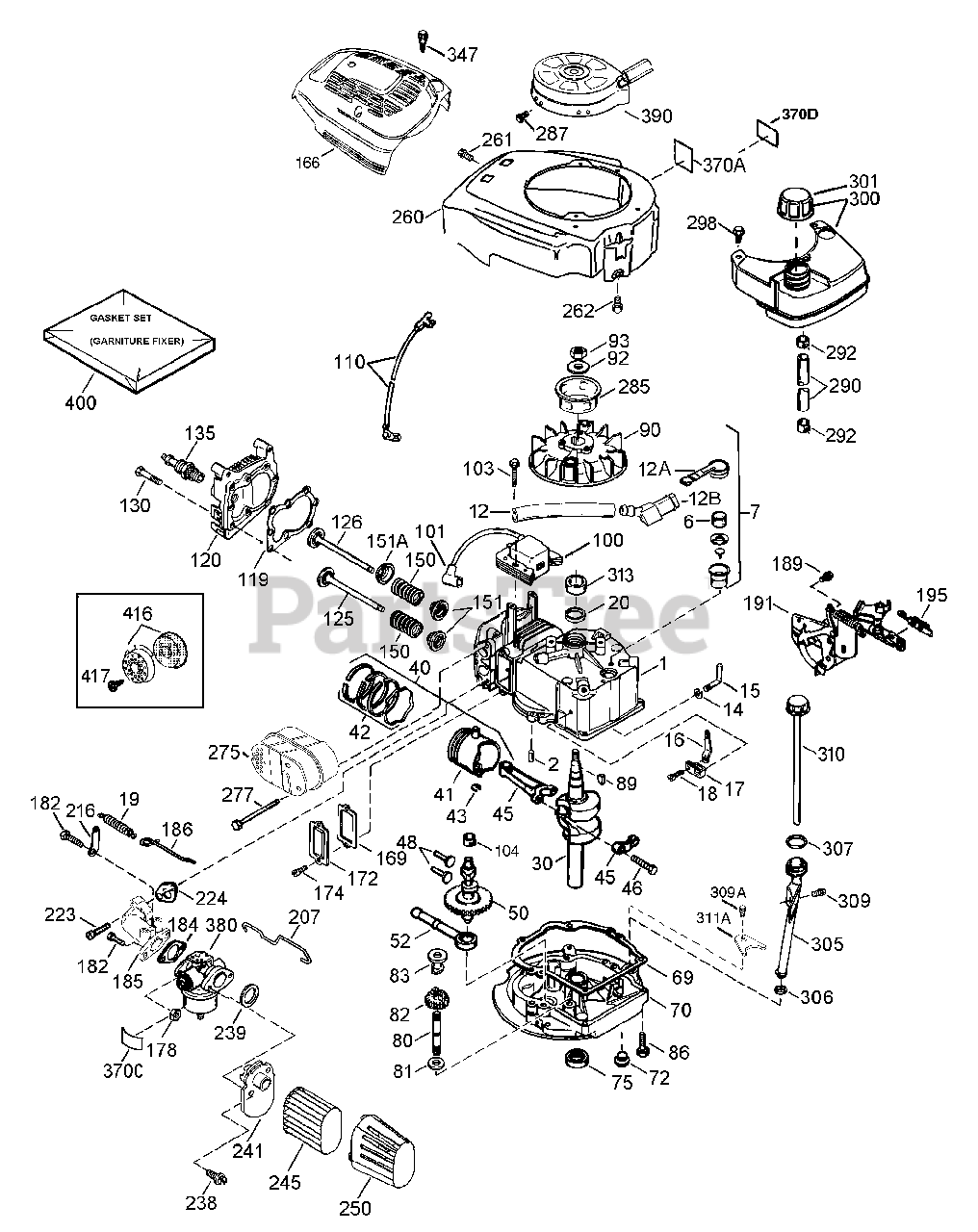

ENGINE ASSEMBLY TECUMSEH MODEL NO. LEV120-362005A Parts Diagram

  • Title

1

Lawn-Boy 37465

Cylinder (Incl. 2, 20 & 150)

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

2

Lawn-Boy 26727

Dowel Pin

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

6

Lawn-Boy 33734

Breather Element

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

7

Lawn-Boy 36557

Breather Ass'y. (Incl. 6 & 12A)

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

12

Lawn-Boy 36775

Breather Tube

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

12A

Lawn-Boy 36558

Breather Cover & Tube (Incl. 12B)

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

12B

Lawn-Boy 36694

Breather Tube Elbow
(Superseded to 704856)

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Not available

14

Lawn-Boy 28277

Washer

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

15

Lawn-Boy 30589

Governor Rod (Incl. 14)

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

16

Lawn-Boy 34839A

Governor Lever

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

17

Lawn-Boy 31335

Governor Lever Clamp

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

18

Lawn-Boy 651018

Screw, T-15, 8-32 x 19/64"

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

19

Lawn-Boy 36281

Extension Spring
(Superseded to 700777)

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Not available

20

Lawn-Boy 32600

Oil Seal

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

30

Lawn-Boy 37692

Crankshaft

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

40

Lawn-Boy 40027

Piston, Pin & Ring Set (Std.)

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

41

Lawn-Boy 40042

Piston & Pin Ass'y. (Std.)(Incl. 43)

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

42

Lawn-Boy 40006

Ring Set (Std.)

Note: Obtain Parts from Local Tecumseh Dealer.

$86.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 20381

Piston Pin Retaining Ring

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

45

Lawn-Boy 36777

Connecting Rod Ass'y. (Incl. 46)

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

46

Lawn-Boy 32610A

Connecting Rod Bolt

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

48

Lawn-Boy 27241

Valve Lifter

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

50

Lawn-Boy 37460

Camshaft (Exhaust MCR)(Inc. 104)

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

52

Lawn-Boy 29914

Oil Pump Ass'y

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

69

Lawn-Boy 37609

Mounting Flange Gasket

Note: Obtain Parts from Local Tecumseh Dealer. Included in Repair Kit No. 632809

$

$

Currently unavailable

70

Lawn-Boy 37608

Mounting Flange (Incl. 72-83,306,309A & 311A)

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

72

Lawn-Boy 37614

Oil Drain Plug
(Superseded to 700905)

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Not available

75

Lawn-Boy 27897

Oil Seal

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

80

Lawn-Boy 30574A

Governor Shaft

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

81

Lawn-Boy 30590A

Washer

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

82

Lawn-Boy 30591

Governor Gear Ass'y. (Incl. 81)

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

83

Lawn-Boy 30588A

Governor Spool

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

86

Lawn-Boy 650488

Screw, 1/4-20 x 1-1/4"

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

89

Lawn-Boy 611004

Flywheel Key

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Not available

90

Lawn-Boy 611112

Flywheel
(Superseded to 611113)

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Not available

92

Lawn-Boy 650815

Belleville Washer

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

93

Lawn-Boy 650816

Flywheel Nut

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

100

Lawn-Boy 34443C

Solid State Ignition

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

101

Lawn-Boy 610118

Spark Plug Cover

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

103

Lawn-Boy 651007

Screw, T-15, 10-24 x 15/16"

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

104

Lawn-Boy 37480

Cam Bushing

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

110

Lawn-Boy 37047

Ground Wire

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

119

Lawn-Boy 36787

Cylinder Head Gasket

Note: Obtain Parts from Local Tecumseh Dealer. Included in Repair Kit No. 632809

$

$

Currently unavailable

120

Lawn-Boy 37714

Cylinder Head
(Superseded to 741027)

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Not available

125

Lawn-Boy 36780

Exhaust Valve (1/32" OS)(Incl. 151)

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

125

Lawn-Boy 37288

Exhaust Valve (Std.)(Incl. 151)

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

126

Lawn-Boy 37289

Intake Valve (Std.)(Incl. 151 & 151A)

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

130

Lawn-Boy 6021A

Screw, 5/16-18 x 1-7/16"

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

135

Lawn-Boy 35395

Resistor Spark Plug (RJ19LM)

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

150

Lawn-Boy 31672

Valve Spring

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

151

Lawn-Boy 31673

Valve Spring Cap
(Superseded to 742357)

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Not available

151A

Lawn-Boy 40017

Intake Valve Seal

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Not available

166

Lawn-Boy 37813

Engine Shroud (Green)

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

169

Lawn-Boy 36783

Valve Cover Gasket

Note: Obtain Parts from Local Tecumseh Dealer. Included in Repair Kit No. 632809

$

$

Currently unavailable

172

Lawn-Boy 36784

Valve Cover

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Not available

174

Lawn-Boy 30200

Screw, 10-24 x 9/16"

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

178

Lawn-Boy 29752

Nut & Lock Washer, 1/4-28

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

182

Lawn-Boy 6201

Screw, 1/4-28 x 7/8"
(Superseded to 111-1250)

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Not available

184

Lawn-Boy 26756

Carburetor To Intake Pipe Gasket

Note: Obtain Parts from Local Tecumseh Dealer. Included in Repair Kit No. 632809

$

$

Currently unavailable

185

Lawn-Boy 37466

Intake Pipe

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

186

Lawn-Boy 32653

Governor Link

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

189

Lawn-Boy 650839

Screw, 1/4-20 x 3/8"

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

191

Lawn-Boy 36559A

S.E. Brake Bracket (Incl. 195)

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

195

Lawn-Boy 610973

Terminal

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

207

Lawn-Boy 34336A

Throttle Link

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

216

Lawn-Boy 33086

R.P.M. Adjusting Lever

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

223

Lawn-Boy 650451

Screw, 1/4-20 x 1"

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

224

Lawn-Boy 36786

Intake Pipe Gasket

Note: Obtain Parts from Local Tecumseh Dealer. Included in Repair Kit No. 632809

$

$

Currently unavailable

238

Lawn-Boy 650932

Screw, 10-32 x 49/64"

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

239

Lawn-Boy 34338

Air Cleaner Gasket

Note: Obtain Parts from Local Tecumseh Dealer. Included in Repair Kit No. 632809

$

$

Currently unavailable

241

Lawn-Boy 36919

Air Cleaner Collar

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

245

Lawn-Boy 36905

Air Cleaner Filter

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

250

Lawn-Boy 37122

Air Cleaner Cover

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

260

Lawn-Boy 37696A

Blower Housing

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

261

Lawn-Boy 30200

Screw, 10-24 x 9/16"

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

262

Lawn-Boy 650831

Screw, 1/4-20 x 1/2"

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

275

Lawn-Boy 37498

Muffler

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

277

Lawn-Boy 650988

Screw, 1/4-20 x 2-9/32"

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

285

Lawn-Boy 35000A

Starter Cup

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

287

Lawn-Boy 650926

Screw, 8-32 x 21/64"

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

290

Lawn-Boy 29774

Fuel Line

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

292

Lawn-Boy 26460

Fuel Line Clamp

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

298

Lawn-Boy 28763

Screw, 10x32 x 35/64"

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

300

Lawn-Boy 35586A

Fuel Tank (Incl. 292 & 301)

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

301

Lawn-Boy 36246

Fuel Cap Ass'y

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

305

Lawn-Boy 35647

Oil Fill Tube

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

306

Lawn-Boy 37610

"O"-Ring

Note: Obtain Parts from Local Tecumseh Dealer. Included in Repair Kit No. 632809

$

$

Currently unavailable

307

Lawn-Boy 35499

"O"-Ring

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

309

Lawn-Boy 650562

Screw, 10-32 x 1/2"

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

309A

Lawn-Boy 650783

Screw, 10-24 x 3/4"

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

310

Lawn-Boy 35648

Dipstick
(Superseded to 700539)

Note: Obtain Parts from Local Tecumseh Dealer

$

$

Not available

311A

Lawn-Boy 37611

Hold Down Bracket

Note: Obtain Parts from Local Tecumseh Dealer

$

$

Currently unavailable

313

Lawn-Boy 34080

Spacer

Note: Obtain Parts from Local Tecumseh Dealer

$

$

Currently unavailable

347

Lawn-Boy 650898A

Screw, 10-32 x 27/32"

Note: Obtain Parts from Local Tecumseh Dealer

$

$

Currently unavailable

370A

Lawn-Boy 36261

Lubrication Decal

Note: Obtain Parts from Local Tecumseh Dealer

$

$

Currently unavailable

370C

Lawn-Boy 37695

Primer Decal (3 X)

Note: Obtain Parts from Local Tecumseh Dealer

$

$

Not available

370D

Lawn-Boy 35977

Warning Decal

Note: Obtain Parts from Local Tecumseh Dealer

$

$

Currently unavailable

380

Lawn-Boy 640303

Carburetor (Incl. 184)

Note: Obtain Parts from Local Tecumseh Dealer

$

$

Currently unavailable

390

Lawn-Boy 590739

Rewind Starter (NOTE: This engine could have been built with 590702 starter.)

Note: Obtain Parts from Local Tecumseh Dealer

$

$

Currently unavailable

400

Lawn-Boy 37613

Gasket Set (Incl. Items Marked PK in Notes)

Note: Obtain Parts from Local Tecumseh Dealer

$

$

Currently unavailable

416

Lawn-Boy 37530

Spark Arrestor Kit (Optional)

Note: Obtain Parts from Local Tecumseh Dealer

$

$

Currently unavailable

Lawn-Boy 750876

Short Block Asm

Note: Obtain Parts from Local Tecumseh Dealer

$

$

Currently unavailable
