10359 C - Lawn-Boy Silver Series Walk-Behind Mower (SN: 230000001 - 230999999) (2003) ENGINE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

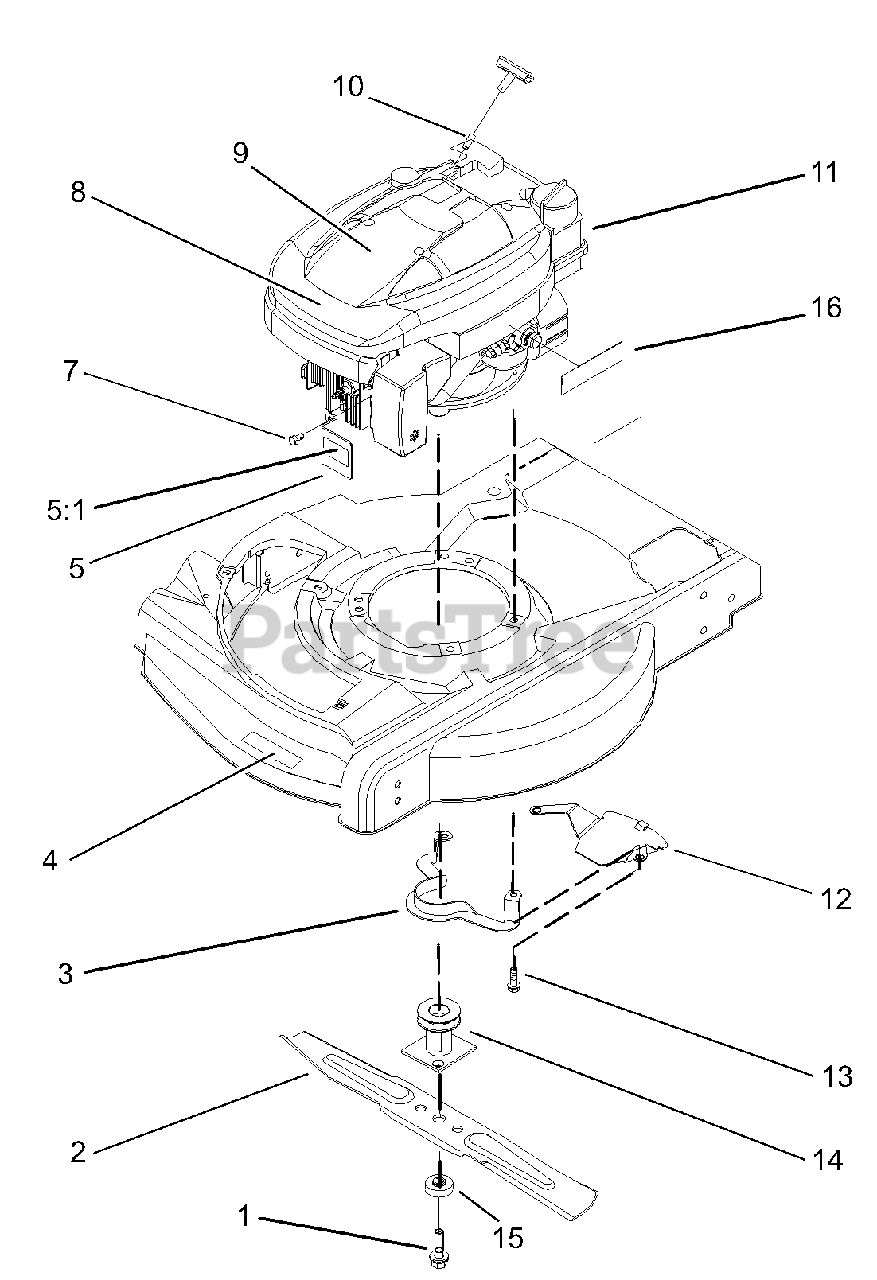

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 105-8579

Bolt-Blade,Sems
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 612543-03

Blade

$29.99

$

In Stock, only 3 left!

0

3

Lawn-Boy 92-1024-03

Guide-Belt

$

$

Not available

4

Lawn-Boy 104-7955

Decal-Deck

$17.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 95-5569

Muffler Guard ASM (only on: 10356, 10358)

$

$

Not available

5

Lawn-Boy 105-1278

Muffler Guard ASM (only on: 10359c)

$

$

Not available

5:1

Lawn-Boy 104-8065

Decal-Surface Hot, International (only on: 10359c)

$

$

Not available

5:1

Lawn-Boy 65-2690

Decal-Surface, Hot (only on: 10356, 10358)

$5.49

$

In Stock, only 4 left!

0

7

Lawn-Boy 32144-85

Screw-HWH

$1.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 98-1593

Applique

$24.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 106-8303

Decal-Recoil, Lb

$51.99

$

In Stock, only 1 left!

0

10

Lawn-Boy 92-1701

Stop-Rope
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

11

Engine-Tecumseh Model No. Lev120-362005a

Note: Not serviced separately

$

$

Not available

12

Lawn-Boy 93-4196-03

Shield-Grass

$13.99

$

In Stock, only 3 left!

0

13

Lawn-Boy 95-1726

Screw-Taptite W/Patch

$2.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 106-3950

Driver-Blade, ASM

$50.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 106-6826

Spacer

$22.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 105-6832

Decal-Primer (only on: 10359c)

$

$

Not available
