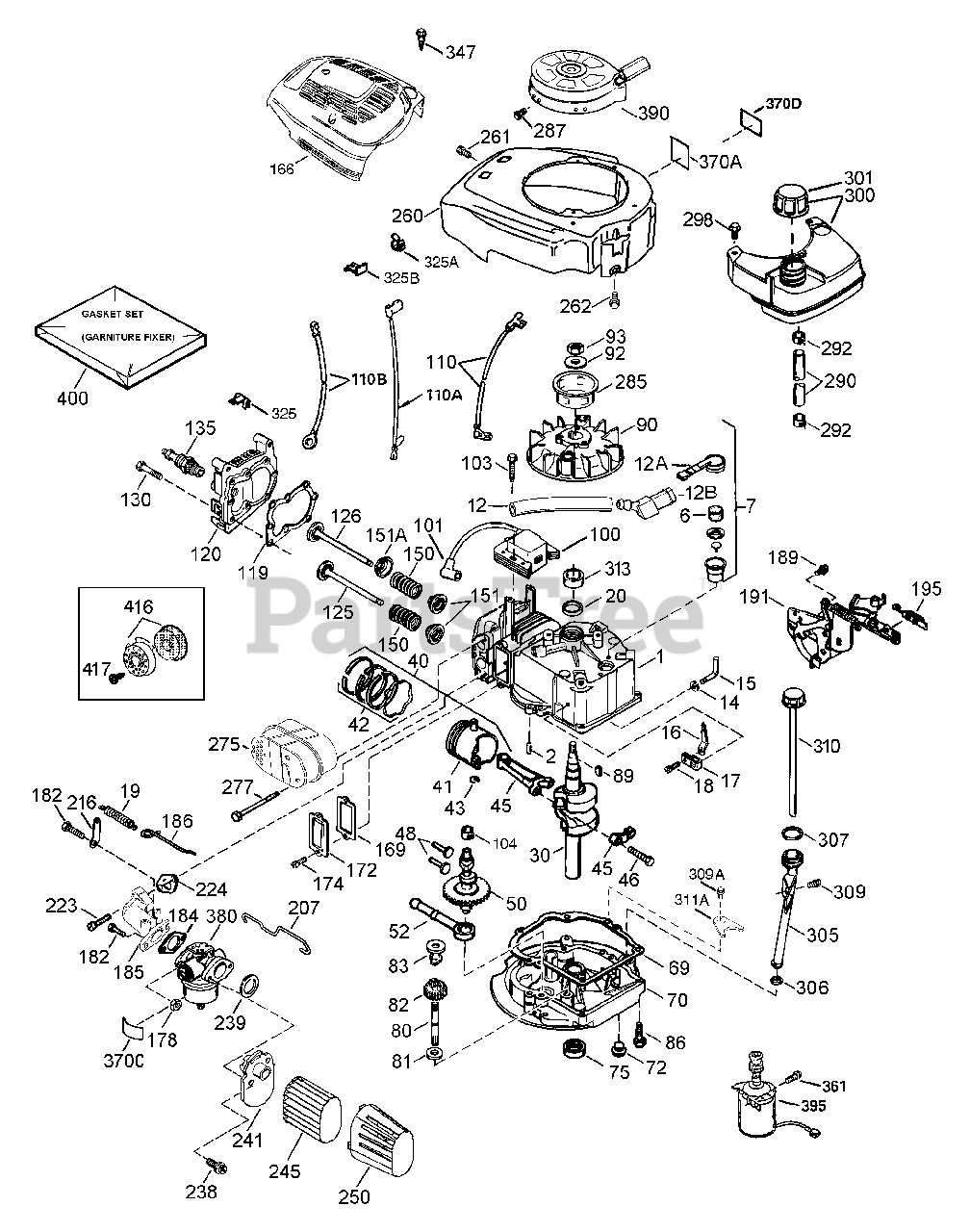

10357 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) ENGINE ASSEMBLY NO. 2 TECUMSEH MODEL LV195EA-362006B Parts Diagram

Silver Series Walk-Behind Mower

ENGINE ASSEMBLY NO. 2 TECUMSEH MODEL LV195EA-362006B Parts Diagram

  • Title

300

Lawn-Boy 37947

Fuel Tank (Incl. REF. #292 and 301)

Note: Obtain parts from your local Tecumseh dealer

$

$

Not available

301

Lawn-Boy 37844

Fuel Cap ASM

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

305

Lawn-Boy 35647

Tube-Oil Fill

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

306

Lawn-Boy 37610

INOIN-Ring

Note: Included in Gasket Kit No. 37613A Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

307

Lawn-Boy 35499

INOIN-Ring

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

309

Lawn-Boy 650562

Screw, 10-32 x 1/2in

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

309A

Lawn-Boy 650783

Screw, 10-24 x 3/4in

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

310

Lawn-Boy 35648

Dipstick
(Superseded to 700539)

Note: Obtain parts from your local Tecumseh dealer

$

$

Not available

311A

Lawn-Boy 37611

Bracket-Hold Down

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

313

Lawn-Boy 34080

Spacer

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

325

Lawn-Boy 35249

Wire Clip

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

325A

Lawn-Boy 37152

Wire Clip

Note: Obtain parts from your local Tecumseh dealer

$

$

Not available

325B

Lawn-Boy 29443

Wire Clip

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

347

Lawn-Boy 650898A

Screw, 10-32 x 27/32in

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

361

Lawn-Boy 650831

Screw, 1/4-20 x 1/2in

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

370A

Lawn-Boy 36261

Decal-Lubrication

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

370C

Lawn-Boy 37695

Decal-Primer

Note: Obtain parts from your local Tecumseh dealer

$

$

Not available

370D

Lawn-Boy 35977

Decal-Warning

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

380

Lawn-Boy 640303

Carburetor (Incl. REF. #184)

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

390

Lawn-Boy 590739

Starter-Rewind

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

395

Lawn-Boy 37753

Starter-Electric 12 Volt

Note: Obtain parts from your local Tecumseh dealer

$

$

Not available

400

Lawn-Boy 37613A

Gasket Set (Incl. Items Marked PK in Notes)

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

416

Lawn-Boy 37530

Spark Arrestor Kit (Optional)

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

417

Lawn-Boy 650760

Screw, 8-32 x 3/8in

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

Lawn-Boy 750876

SHORTBLOCK

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable
