10357 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 230000001 - 230999999) (2003) HOUSING, HANDLE BRACKET AND WHEEL ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

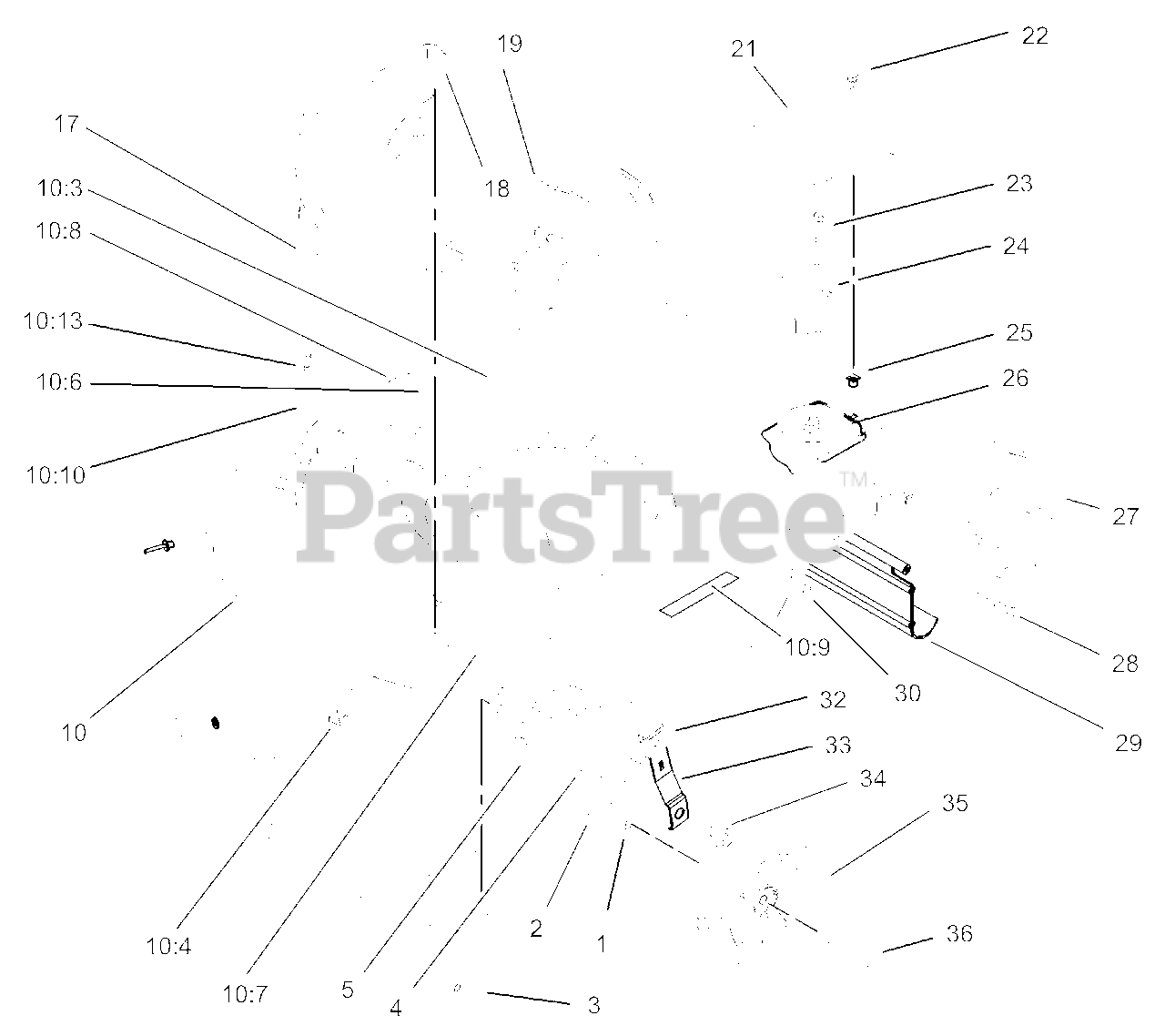

HOUSING, HANDLE BRACKET AND WHEEL ASSEMBLY Parts Diagram

  • Title
1

$2.99

$

In Stock, Qty 18

0

2

Lawn-Boy 95-7403-03

Bracket-Height Adjustment, Wheel

$

$

Not available

3

Lawn-Boy 92-7731

Plate-Baffle

$10.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 92-4890

Washer-Wheel

$8.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 92-4881-03

Plate-Height, Adjustment

$29.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 98-4477

Deck ASM

$316.99

$

Usually ships in 3-6 days

0

10:3

Lawn-Boy 43-8480

Decal-Danger

$6.99

$

In Stock, Qty 6

0

10:4

Lawn-Boy 613765

Nut-Cage

$9.99

$

In Stock, Qty 9

0

10:6

Lawn-Boy 99-6018

Decal-Warning

$2.99

$

Usually ships in 3-6 days

0

10:7

Lawn-Boy 92-2914

Decal-HOC, LH

$

$

Not available

10:8

Lawn-Boy 92-2915

Decal-HOC, RH

$6.49

$

Usually ships in 3-6 days

0

10:9

Lawn-Boy 93-7250

Decal-Warning

$15.99

$

In Stock, only 2 left!

0

10:10

Lawn-Boy 94-1610

Grommet-Plastic

$1.49

$

In Stock, Qty 9

0

10:13

Lawn-Boy 614677

Screw-Sems

$4.49

$

In Stock, Qty 12

0

17

Lawn-Boy 92-8630

Plate-Mulch

$

$

Not available

$5.49

$

In Stock, Qty 16

0

19

Lawn-Boy 105-8602

RH Bracket ASM

$45.99

$

In Stock, only 1 left!

0

21

Lawn-Boy 95-7068

Cover-Drive

$25.99

$

In Stock, only 1 left!

0

22

$6.99

$

In Stock, Qty 20+

0

23

Lawn-Boy 65-5221

Screw-HWHTF

$2.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 92-7728-03

Guide-Transmission

$7.99

$

In Stock, only 1 left!

0

25

Lawn-Boy 605120

Grommet

$4.49

$

In Stock, Qty 9

0

26

Lawn-Boy 104-7671

Gear Case ASM

$

$

Not available

27

Lawn-Boy 105-8604

LH Bracket ASM

$

$

Not available

28

Lawn-Boy 322-3

Screw-HH

$0.99

$

In Stock, Qty 13

0

29

Lawn-Boy 92-8647

Shield-Trailing

$41.99

$

In Stock, only 1 left!

0

30

Lawn-Boy 3296-29

Nut-Lock, NI

$2.49

$

In Stock, Qty 20+

0

32

Lawn-Boy 92-1008

Knob-Lever, Height Adjustment

$14.99

$

In Stock, only 2 left!

0

33

Lawn-Boy 614687

Arm-Front Spring

$21.99

$

In Stock, only 3 left!

0

34

Lawn-Boy 614672

Bolt-Shoulder

$2.99

$

In Stock, Qty 6

0

35

Lawn-Boy 92-1099

Bolt-Shoulder

$8.49

$

In Stock, Qty 20+

0

36

Lawn-Boy 684776

Wheel & Tire ASM

$37.99

$

In Stock, Qty 20+

0

Lawn-Boy 95-7052

Plate-Opening, Chute

Note: Not illustrated

$36.99

$

In Stock, only 1 left!

0
