10357 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 230000001 - 230999999) (2003) ELECTRIC STARTER KIT NO. 35709 TECUMSEH MODEL NO. LEV120-362006A Parts Diagram

Silver Series Walk-Behind Mower

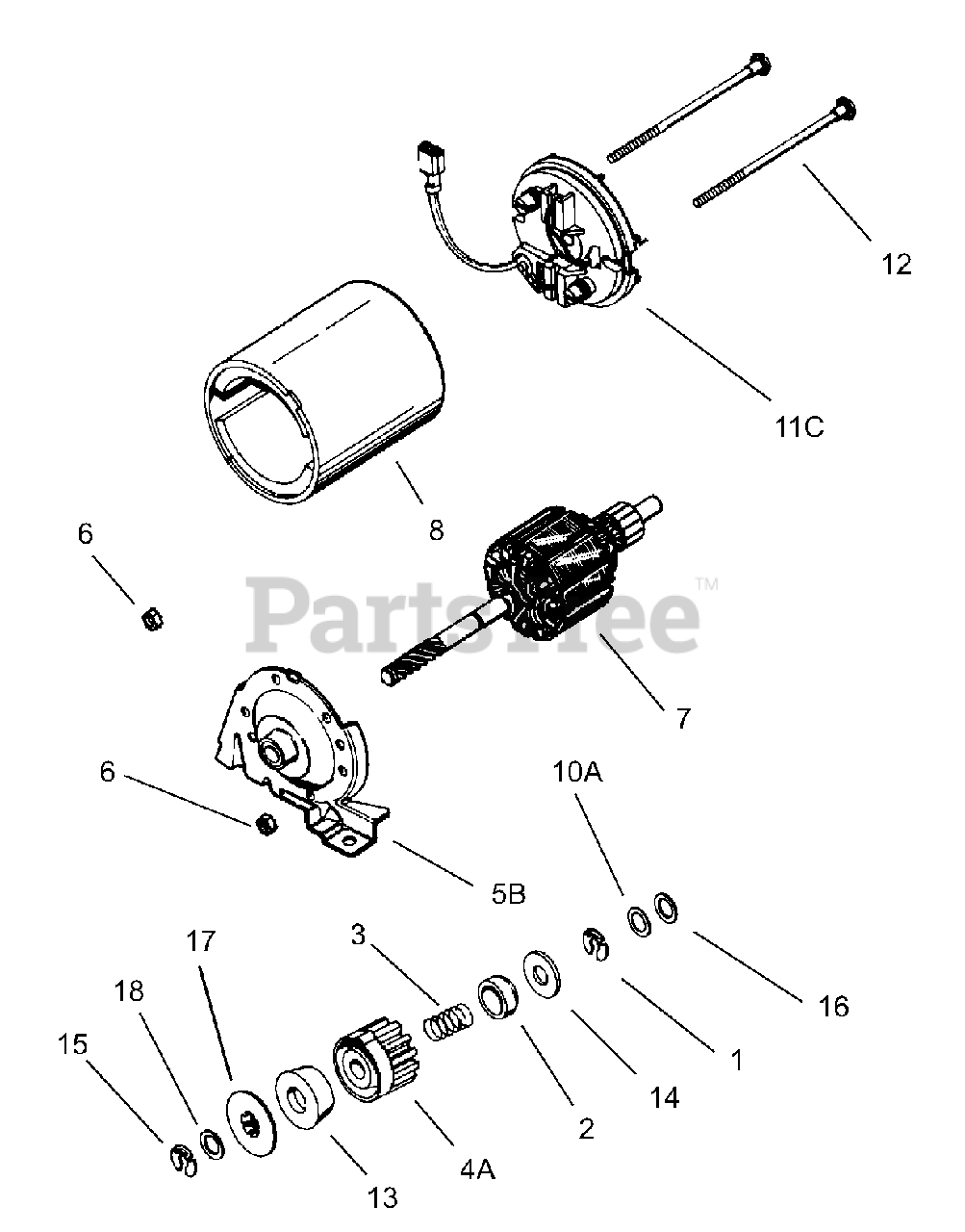

ELECTRIC STARTER KIT NO. 35709 TECUMSEH MODEL NO. LEV120-362006A Parts Diagram

  • Title

Lawn-Boy 35709

Electric Starter (12 Volt)

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

1

Lawn-Boy 34955

Retainer Ring

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

2

Lawn-Boy 34950

Spring Retainer

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

3

Lawn-Boy 34954

Spring

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Not available

4A

Lawn-Boy 34949A

Gear

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

5B

Lawn-Boy 34943

Drive End Cap Ass'y.

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

6

Lawn-Boy 33450

Lock Nut

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

7

Lawn-Boy 34944

Armature

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

8

Lawn-Boy 34945

Housing Ass'y.

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

10A

Lawn-Boy 590500

Thrust Washer

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

11C

Lawn-Boy 35714

Commutator End Cap Ass'y. (Incl. brushes)

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

12

Lawn-Boy 34947

Bolt, 10-32 x 3-3/16"

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

13

Lawn-Boy 34946

Pinion Driver

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

14

Lawn-Boy 34951

Cup Washer

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

15

Lawn-Boy 34952

Retainer Ring

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

16

Lawn-Boy 34948

Washer

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

17

Lawn-Boy 34953

Drive Nut

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable

18

Lawn-Boy 590608

Washer

Note: Obtain Parts from Local Tecumseh Dealer.

$

$

Currently unavailable
