10357 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 230000001 - 230999999) (2003) BATTERY AND SWITCH ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

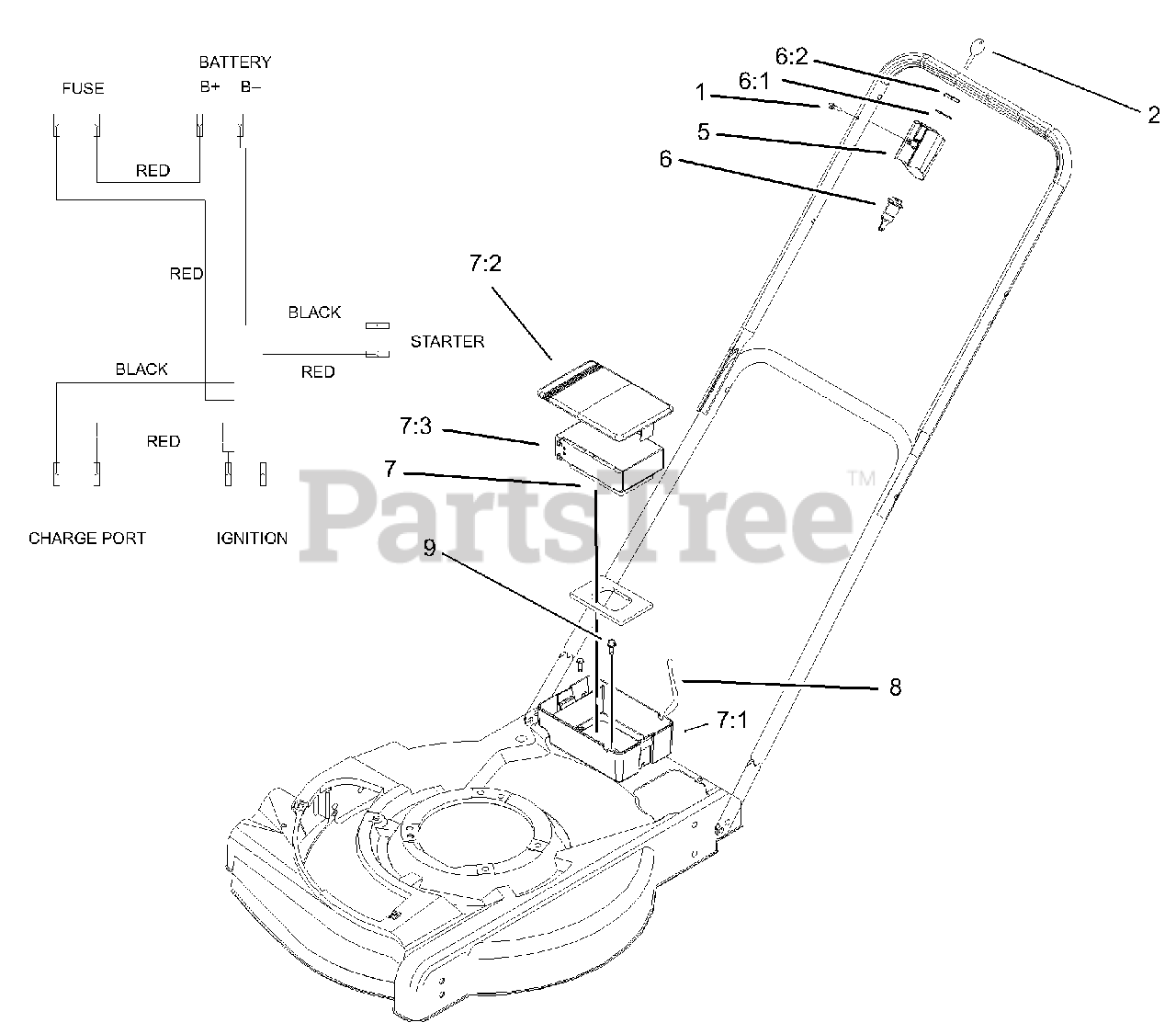

BATTERY AND SWITCH ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 32144-97

Screw

$0.99

$

In Stock, Qty 9

0

2

Lawn-Boy 98-4486

Key-Ignition

$2.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 100-1046

Mount-Switch

$

$

Not available

6

Lawn-Boy 46-5780

Switch-Starter

$29.99

$

In Stock, only 1 left!

0

6:1

Lawn-Boy 3254-5

Washer-Tooth

$1.49

$

In Stock, only 2 left!

0

6:2

Lawn-Boy 218-461

Nut-HH

$3.99

$

In Stock, Qty 9

0

7

Lawn-Boy 105-6845

Battery ASM-Panasonic
(Superseded to 115-1304)

$96.99

$

In Stock, only 3 left!

0

7:1

Lawn-Boy 105-6843

Box-Battery

$36.99

$

Usually ships in 3-6 days

0

7:2

Lawn-Boy 105-6844

Cover-Battery

$40.99

$

Usually ships in 3-6 days

0

7:3

Lawn-Boy 104-7903

Battery-Panasonic, 12v
(Superseded to 115-1304)

$96.99

$

In Stock, only 3 left!

0

8

Lawn-Boy 100-1038

Harness-Wire

$

$

Not available

9

Lawn-Boy 104-7649

Screw-Tek
(Superseded to 105-0618)

$0.99

$

In Stock, Qty 12

0

Lawn-Boy 104-7401

Charger-12 Volt
(Superseded to 136-9126)

Note: Not illustrated

$41.99

$

In Stock, only 3 left!

0

Lawn-Boy 104-7953

Decal-Harness

Note: Not illustrated

$9.99

$

Usually ships in 3-6 days

0

Lawn-Boy 99-6124

Fuse-40 Amp

Note: Not illustrated

$5.49

$

In Stock, Qty 8

0
