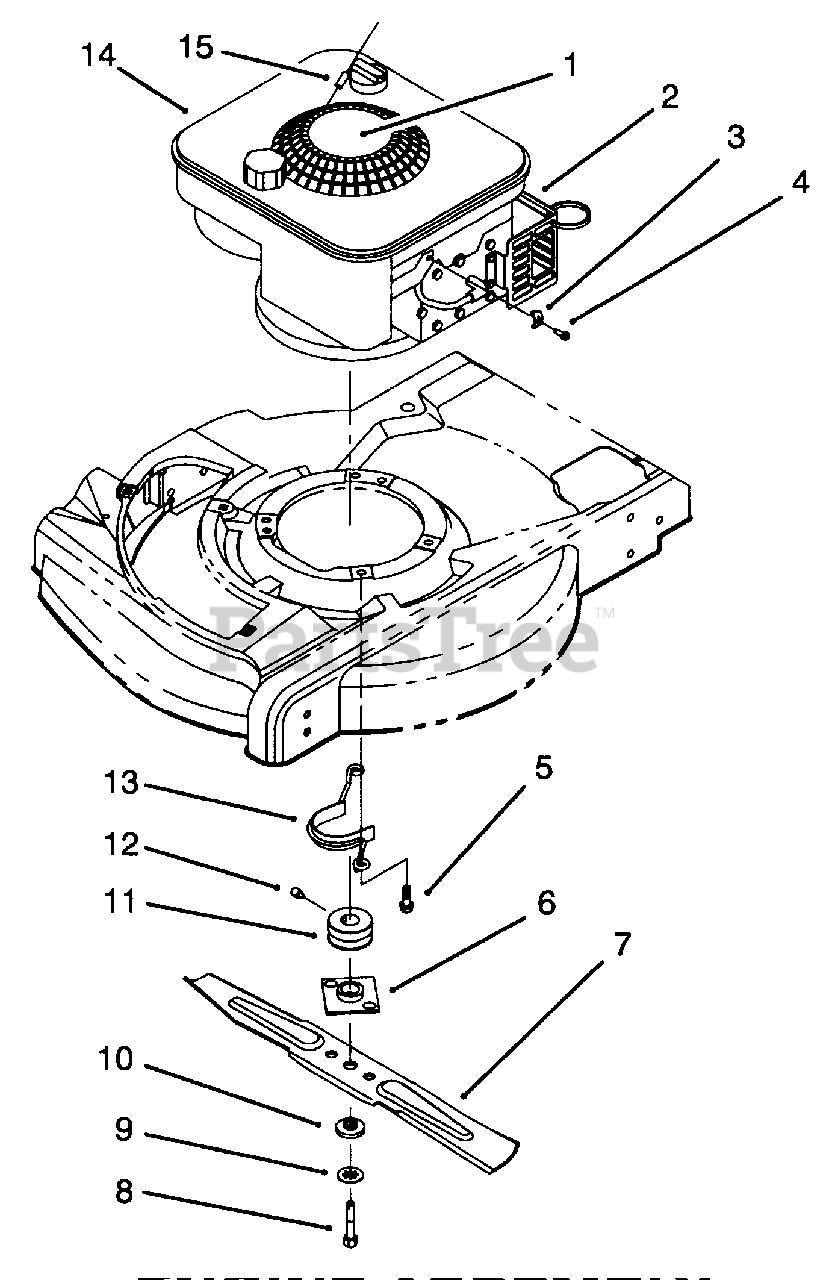

10345 - Lawn-Boy Green Series Walk-Behind Mower (SN: 004900001 - 004999999) (1994) ENGINE ASSEMBLY Parts Diagram

Green Series Walk-Behind Mower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 92-8008

Decal-Shroud

$

$

Not available

2

Lawn-Boy 684659

Shield-Muffler

$

$

Not available

3

Lawn-Boy 2210-249

Clamp-Casing

$3.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy 86-7990

Screw-Clamp

$3.49

$

Usually ships in 3-6 days

0

5

Lawn-Boy 92-1624

Screw-Engine
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 677525

Plate & Collar

$51.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 612543

Blade-21"
(Superseded to 612543-03)

$33.99

$

In Stock, only 3 left!

0

8

Lawn-Boy 26-0671

Bolt-Blade

$9.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 3253-22

Washer-Lock

$2.99

$

In Stock, only 3 left!

0

10

Lawn-Boy 92-8626

Spacer-Blade

$15.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 92-6542

Pulley-Engine

$93.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 613227

Screw-Set
(Superseded to 105-8875)

$11.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 92-9563

Guide-Belt

$

$

Not available

14

Engine

$

$

Not available

15

Lawn-Boy 2210-316

Stop-Rope

$7.99

$

Usually ships in 3-6 days

0
