10345 - Lawn-Boy Green Series Walk-Behind Mower (SN: 004900001 - 004999999) (1994) DECK & WHEEL ASSEMBLY Parts Diagram

Green Series Walk-Behind Mower

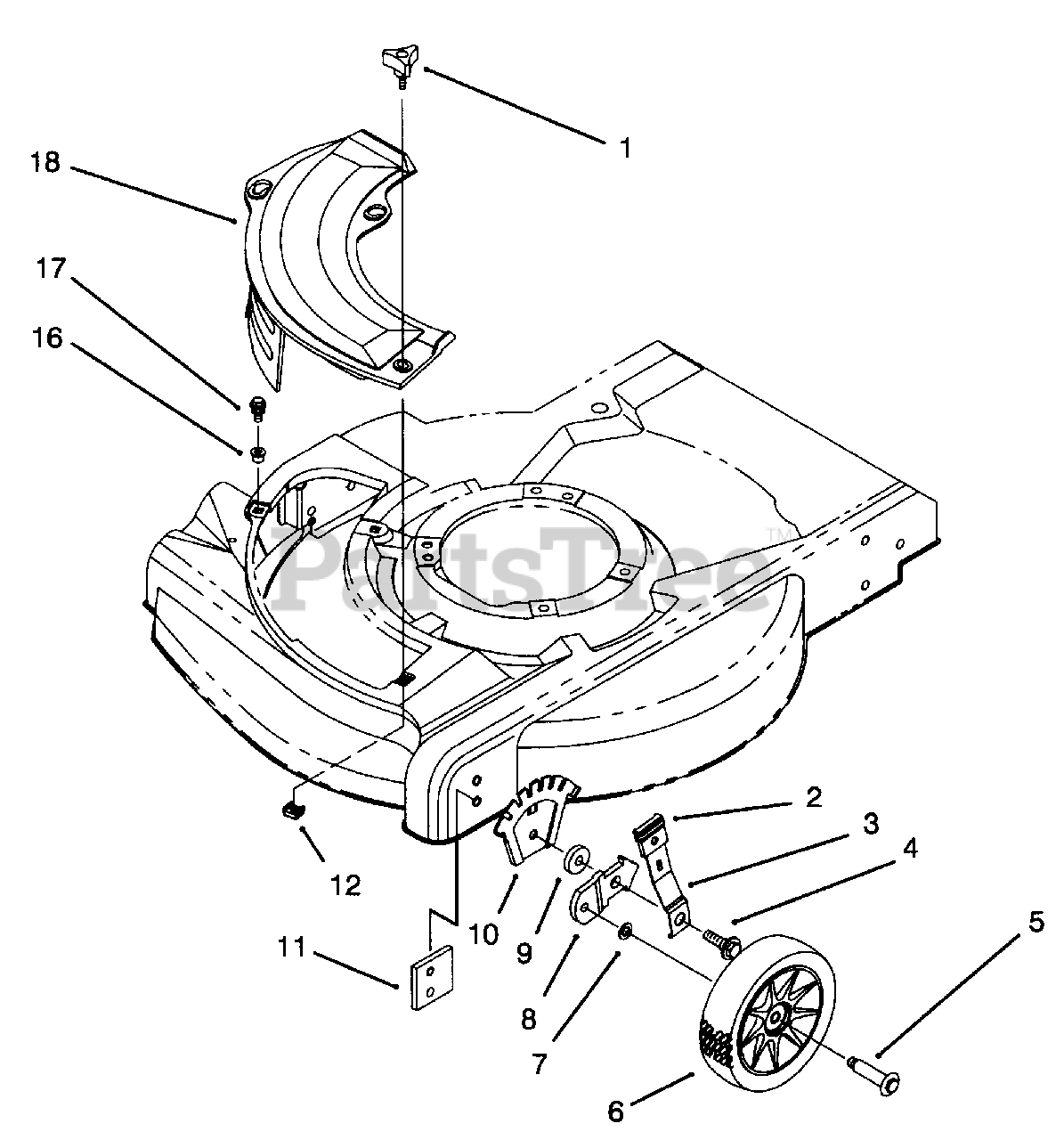

DECK & WHEEL ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 614682

Knob-Cover Plate
(Superseded to 98-8332)

$5.49

$

In Stock, Qty 15

0

2

Lawn-Boy 92-1008

Knob-Height Adjust

$14.99

$

In Stock, only 2 left!

0

3

Lawn-Boy 614687

Spring Arm-Front

$21.99

$

In Stock, only 3 left!

0

4

Lawn-Boy 614672

Bolt-Shoulder

$2.99

$

In Stock, Qty 6

0

5

Lawn-Boy 92-1099

Bolt-Shoulder

$8.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 92-8885

Wheel & Tire Ass'y 6"

$41.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 40-1940

Washer

$2.99

$

In Stock, Qty 18

0

8

Lawn-Boy 614637

Bracket-Wheel Height Adj.
(Superseded to 95-7403-03)

$

$

Not available

9

Lawn-Boy 92-4890

Washer

$8.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 92-4881

Plate-Height Adjust.
(Superseded to 92-4881-03)

$29.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 92-7731

Plate-Baffle

$10.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 613765

Nut-Cage

$9.99

$

In Stock, Qty 9

0

16

Lawn-Boy 604604

Grommet-Plastic
(Superseded to 94-1610)

$1.49

$

In Stock, Qty 7

0

17

Lawn-Boy 614677

Screw-Sems Thr'd Form

$4.49

$

In Stock, Qty 12

0

18

Lawn-Boy 92-8630

Plate-Mulch 21"

$

$

Not available
