10342 - Lawn-Boy Green Series Walk-Behind Mower (SN: 004900001 - 004999999) (1994) HANDLE ASSEMBLY Parts Diagram

Green Series Walk-Behind Mower

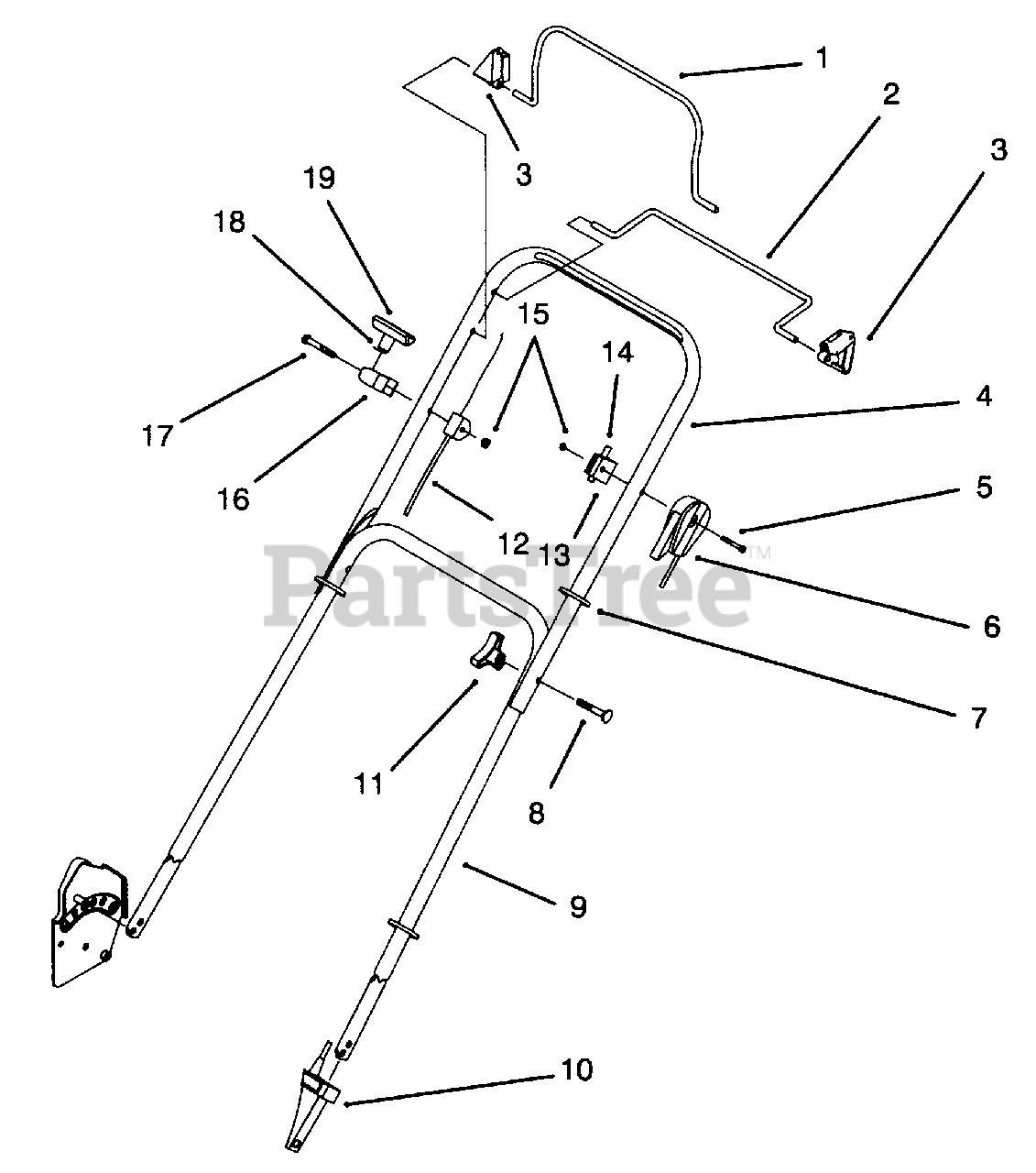

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 92-1002

Bail-Flywheel Brake
(Superseded to 92-1002-03)

$

$

Not available

2

Lawn-Boy 92-1001

Bail-S.P Control
(Superseded to 92-1001-03)

$58.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$5.49

$

In Stock, only 1 left!

0

4

Lawn-Boy 92-7737

Handle-Section Upper
(Superseded to 92-7737-05)

$

$

Not available

5

Lawn-Boy 321-49

Screw-Hex Hd. Cap

$1.99

$

In Stock, Qty 9

0

6

Lawn-Boy 92-7734

Cable-Throttle

$40.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 614249

Tie-Cable

$1.49

$

In Stock, Qty 6

0

8

Lawn-Boy 614697

Screw-Handle

$2.49

$

In Stock, Qty 13

0

9

Lawn-Boy 614643

Handle-Lower
(Superseded to 614643-05)

$

$

Not available

10

Lawn-Boy 614693

Anchor-Cable Lower
(Superseded to 93-7380)

$14.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 614243

Knob
(Superseded to 98-7134)

$2.99

$

In Stock, Qty 15

0

12

Lawn-Boy 92-7738

Cable-Flywheel Brake

$33.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 92-7729

Anchor-Cable Upper

$4.99

$

In Stock, only 4 left!

0

14

Lawn-Boy 92-7726

Cable-Traction
(Superseded to 95-5590)

$34.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 3296-73

Nut-Lock

$5.49

$

In Stock, only 3 left!

0

16

Lawn-Boy 92-7720

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

17

Lawn-Boy 321-50

Screw-Hex Hd. Cap

$1.99

$

In Stock, Qty 8

0

18

Lawn-Boy 612825

Handle-Starter
(Superseded to 81-1630)

$21.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 612824

Clip-Rope Insert

$4.49

$

In Stock, Qty 10

0
