10335 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 200000001 - 200999999) (2000) HOUSING, HANDLE BRKT & WHEEL ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

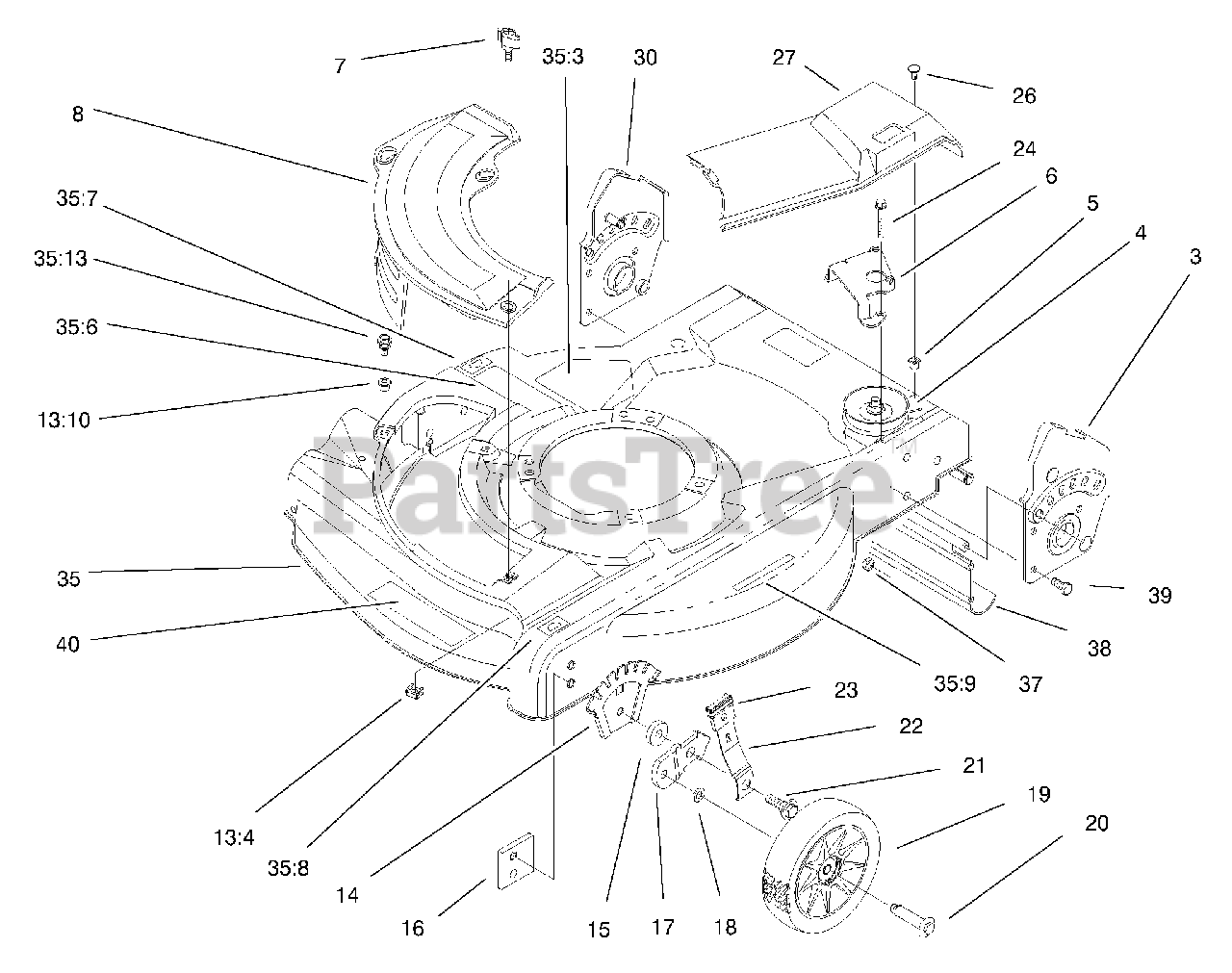

HOUSING, HANDLE BRKT & WHEEL ASSEMBLY Parts Diagram

  • Title
3

Lawn-Boy 92-7724

LH Handle Bracket ASM
(Superseded to 105-8604)

$47.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 92-7735

Gear Case Assembly
(Superseded to 104-7671)

$

$

Not available

5

Lawn-Boy 605120

Grommet

$3.99

$

In Stock, Qty 9

0

6

Lawn-Boy 92-7728-03

Guide-Transmission

$7.99

$

In Stock, only 1 left!

0

$5.49

$

In Stock, Qty 18

0

8

Lawn-Boy 92-8630

Plate-Mulch

$

$

Not available

14

Lawn-Boy 92-4881-03

Plate-Height Adjustment

$25.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 92-4890

Washer-Wheel

$8.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 92-7731

Plate-Baffle

$8.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 95-7403-03

Bracket-Wheel Height Adjustment

$

$

Not available

18

$2.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 684776

Wheel & Tire ASM

$33.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 92-1099

Bolt-Shoulder

$7.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 614672

Bolt-Shoulder

$2.99

$

In Stock, Qty 6

0

22

Lawn-Boy 614687

Arm-Front Spring

$21.99

$

In Stock, only 3 left!

0

23

Lawn-Boy 92-1008

Knob-Lever, Height Adjustment

$12.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 65-5221

Screw-Thread Forming

$1.99

$

Usually ships in 3-6 days

0

26

$1.99

$

In Stock, only 4 left!

0

27

Lawn-Boy 95-7068

Cover-Drive

$25.99

$

In Stock, only 1 left!

0

30

Lawn-Boy 92-7723

RH Handle Bracket ASM
(Superseded to 105-8602)

$45.99

$

In Stock, only 1 left!

0

35

Lawn-Boy 98-4477

ASM-Hsg/Baffle w/Decals

$293.99

$

Usually ships in 3-6 days

0

35:3

Lawn-Boy 43-8480

Decal-Danger

$6.49

$

In Stock, Qty 6

0

35:6

Lawn-Boy 99-6018

Decal-Warning

$2.49

$

Usually ships in 3-6 days

0

35:7

Lawn-Boy 92-2914

Decal-HOC, RH

$

$

Not available

35:8

Lawn-Boy 92-2915

Decal-HOC, LH

$5.49

$

Usually ships in 3-6 days

0

35:9

Lawn-Boy 93-7250

Decal-Warning

$14.99

$

In Stock, only 2 left!

0

35:13

Lawn-Boy 614677

Screw-Sems

$3.99

$

In Stock, Qty 16

0

35:10

Lawn-Boy 94-1610

Grommet-Plastic

$0.99

$

In Stock, Qty 14

0

35:4

Lawn-Boy 613765

Nut-Cage

$8.49

$

In Stock, Qty 10

0

37

Lawn-Boy 3296-29

Nut-Lock, NI

$2.49

$

In Stock, Qty 16

0

38

Lawn-Boy 92-8647

Shield-Trailing

$35.99

$

In Stock, only 1 left!

0

39

Lawn-Boy 322-3

Screw-HH

$0.99

$

In Stock, Qty 20+

0

40

Lawn-Boy 100-6385

Decal-Deck

$6.99

$

Usually ships in 3-6 days

0

Lawn-Boy 95-7052

Plate-Chute Opening

Note: Not illustrated

$30.99

$

In Stock, only 1 left!

0
