10332 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 008900001 - 008999999) (1998) ENGINE & BLADE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

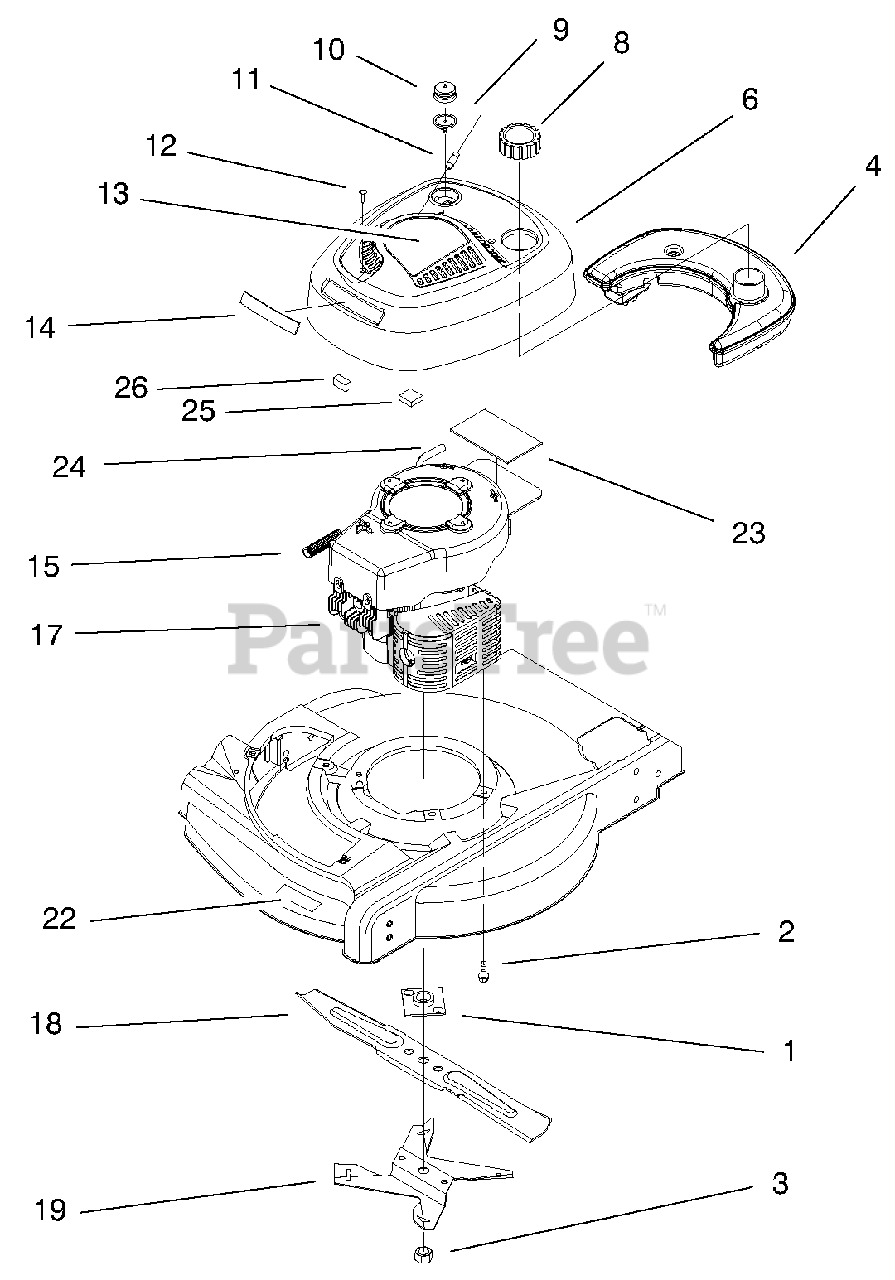

ENGINE & BLADE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 677525

ASM-Plate & Collar

$51.99

$

In Stock, only 1 left!

0

2

Lawn-Boy 611774

Screw

$4.49

$

In Stock, only 2 left!

0

3

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 95-1897

Gas Tank

$67.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 98-7033

ASM-Shroud & Recoil Covr
(Superseded to 100-6398)

$

$

Not available

8

Lawn-Boy 98-8345

ASM-Fuel/Oil Cap

$

$

Not available

9

Lawn-Boy 66-7460

Bulb-Primer

$6.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 44-2750

Body-Primer

$8.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 92-1701

Rope-Stop
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 95-7621

Screw-Tf Acorn Hd

$1.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 95-7417

Decal-Recoil

$

$

Not available

14

Lawn-Boy 92-8615

Applique-Shroud

$31.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 93-4306

Spring-Compression

$6.49

$

In Stock, only 1 left!

0

17

Engine ASM Recoil Sp

$

$

Not available

18

Lawn-Boy 612543

Blade-21" Whirl
(Superseded to 612543-03)

$33.99

$

In Stock, only 3 left!

0

19

Lawn-Boy 92-1630

Fan-Mulching
(Superseded to 99-6351-03)

$37.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 314576

Screw-Throttle Cable

$1.99

$

In Stock, Qty 6

0

21

Lawn-Boy 306531

Nut-Throttle Cable
(Superseded to 3217-26)

$1.99

$

In Stock, only 2 left!

0

22

Lawn-Boy 98-1567

Decal-Deck

$14.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 98-1386

Foam Pad

$

$

Not available

24

Lawn-Boy 612782

Gas Line

$7.49

$

In Stock, Qty 9

0

25

Lawn-Boy 99-1521

Foam Strip

$10.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 99-1522

Foam Strip

$2.99

$

In Stock, Qty 9

0
