10330 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 200000001 - 200999999) (2000) MULCH PLATE AND WHEEL ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

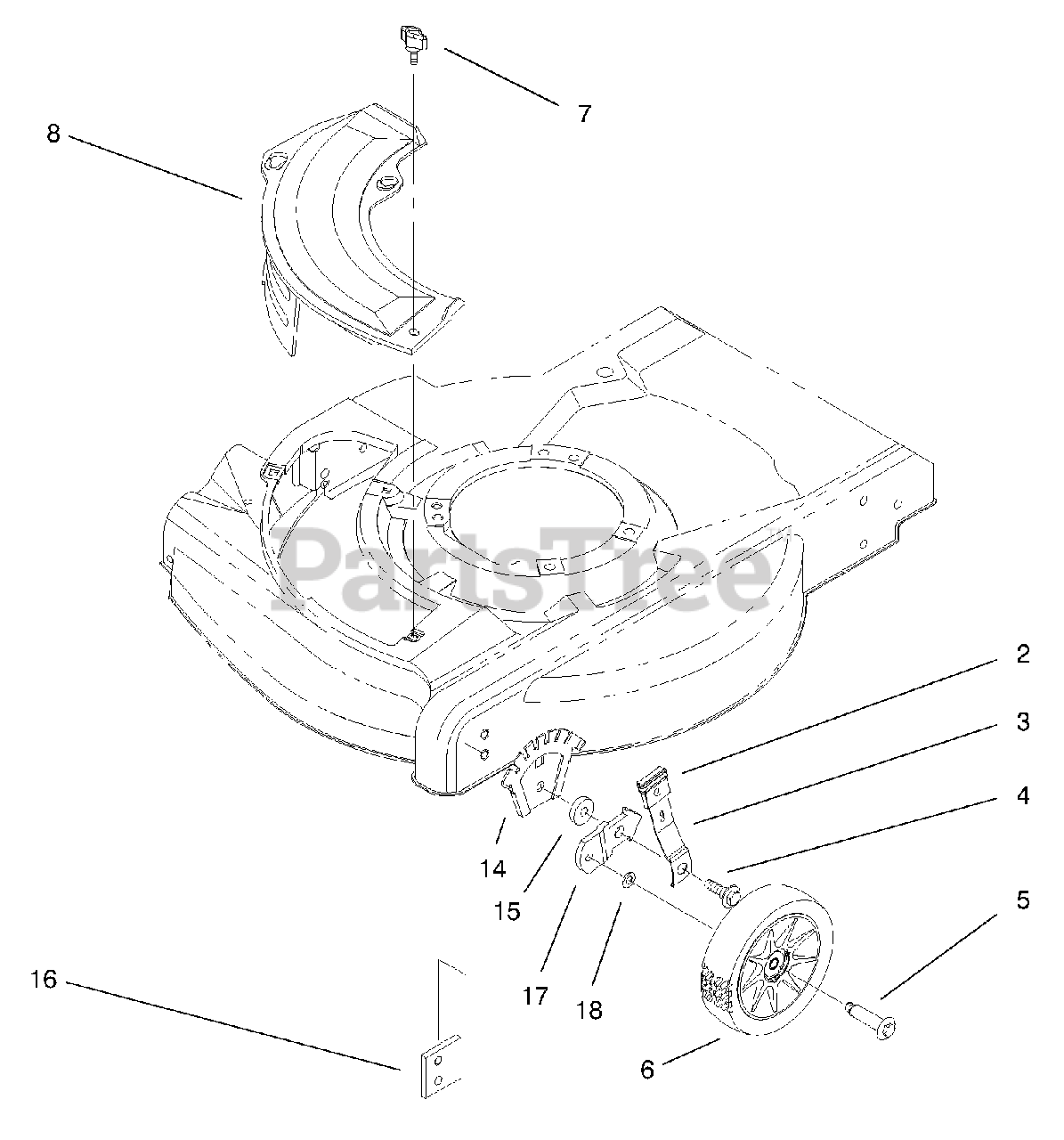

MULCH PLATE AND WHEEL ASSEMBLY Parts Diagram

  • Title

2

Lawn-Boy 92-1008

Knob-Lever, Height Adjustment

$14.99

$

In Stock, only 2 left!

0

3

Lawn-Boy 614687

Arm-Front Spring

$21.99

$

In Stock, only 3 left!

0

4

Lawn-Boy 614672

Bolt-Shoulder

$2.99

$

In Stock, only 4 left!

0

5

Lawn-Boy 92-1099

Bolt-Shoulder

$8.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 684776

Wheel & Tire ASM

$37.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 98-8332

Knob

$5.49

$

In Stock, Qty 12

0

8

Lawn-Boy 92-8630

Plate-Mulch

$

$

Not available

14

Lawn-Boy 92-4881-03

Plate-Height Adjustment

$29.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 92-4890

Washer-Wheel

$8.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 92-7731

Plate-Baffle

$10.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 95-7403-03

Bracket-Wheel Height Adjustment

$

$

Not available

18

Lawn-Boy 40-1940

Washer

$2.99

$

In Stock, Qty 20+

0

99

Lawn-Boy 95-7052

Plate-Chute Opening

Note: Not illustrated

$36.99

$

In Stock, only 3 left!

0
